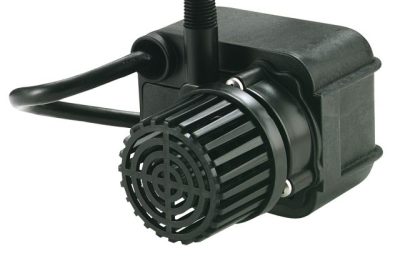

Little Giant PE Series direct drive pump operates continuously and produce greater starting torque and more pressure than comparable mag-drive pumps. This direct drive pump is ideal for use in filtration, waterfalls, and streams.
The PE Series direct drive pump is a line of submersible epoxy-encapsulated pumps for commercial, industrial, or residential use. The compact design consists of a thermally protected 1/40 horsepower motor with nylon volute and impeller. This direct drive pump series can handle intermittent liquid temperatures up to 120 °F (48.9 °C).
| Head | PE-1H-PW GPH (LPH) | PE-1F-PW GPH (LPH) | PE-2H-PW GPH (LPH) | PE-2F-PW GPH (LPH) | PE-2.5F-PW GPH (LPH) |
| 1′ | 170 (644) | 170 (644) | 300 (1136) | 300 (1136) | 475 (1798) |
| 5′ | 140 (530) | 140 (530) | 255 (965) | 270 (1022) | 440 (1666) |
| 10′ | 100 (379) | 90 (341) | 205 (776) | 240 (908) | 395 (1495) |
| 15′ | – | – | 70 (265) | 130 (492) | 205 (776) |
| Item | Model | Full Load Watts | Cord Length | Shut-Off |
|---|---|---|---|---|
| 566604 | PE-1H-PW | 36 W | 6 ft | 6.5 ft |
| 566608 | PE-1F-PW | 36 W | 15 ft | 6.5 ft |
| 566609 | PE-2H-PW | 47 W | 6 ft | 12.2 ft |
| 566611 | PE-2F-PW | 47 W | 15 ft | 12.2 ft |
| 566612 | PE-2.5F-PW | 80 W | 15 ft | 13.4 ft |
