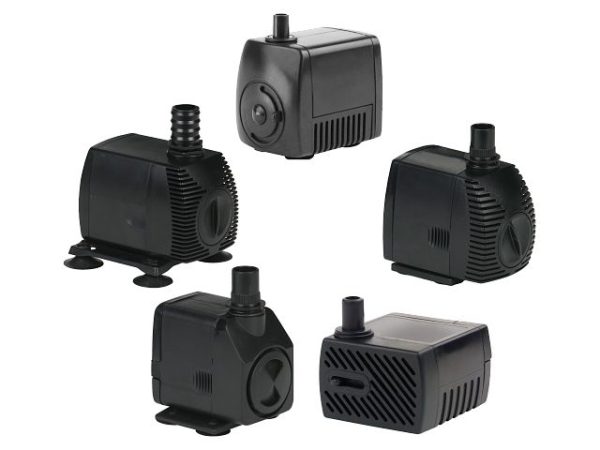

Designed to operate continuously with minimal energy consumption, the PES Series magnetic drive pump offers a corrosion-resistant body specifically for submersible use. Easy to install and maintain, a magnetic drive pump from Little Giant is ideal for a variety of applications including pond fountains, small waterfalls, or hydroponic ebb and flow or drip systems.
Developed for water displays, PES Series magnetic drive pump is dependable and built to last. These submersible epoxy encapsulated pumps feature an outer case constructed of durable polyester and ABS plastic. The magnetic drive pump case is filled with a special heat transfer epoxy.
| Head | PES-40 GPH (LPH) | PES-80 GPH (LPH) | PES-130 GPH (LPH) | PES-290 GPH (LPH) | PES-380 GPH (LPH) | PES-700 GPH (LPH) | PES-800 GPH (LPH) | PES-1000 GPH (LPH) |
| 1′ | 45 (170) | 77 (291) | 130 (492) | 300 (1136) | 350 (1325) | 725 (2744) | 875 (3312) | 1150 (4353) |
| 3′ | – | 20 (76) | 85 (322) | 180 (681) | 285 (1079) | 560 (2120) | 750 (2839) | 965 (3653) |
| 5′ | – | – | – | 115 (435) | 180 (681) | 400 (1514) | 625 (2366) | 775 (2934) |
| 10′ | – | – | – | – | – | – | 175 (662) | 200 (757) |
| Item | Model | Amps – Full Load | Full Load Watts | Cord Length |
|---|---|---|---|---|
| 566713 | PES-40-PW | 0.03 A | 2.5 W | 6 ft |
| 566714 | PES-80-PW | 0.14 A | 8 W | 6 ft |
| 566716 | PES-130-PW | 0.23 A | 11 W | 6 ft |
| 566717 | PES-290-PW | 0.4 A | 23 W | 6 ft |
| 566718 | PES-380-PW | 0.64 A | 33 W | 15 ft |
| 566720 | PES-700-PW | 0.75 A | 57 W | 15 ft |
| 566721 | PES-800-PW | 0.95 A | 90 W | 15 ft |
| 566722 | PES-1000-PW | 1.4 A | 98 W | 15 ft |
