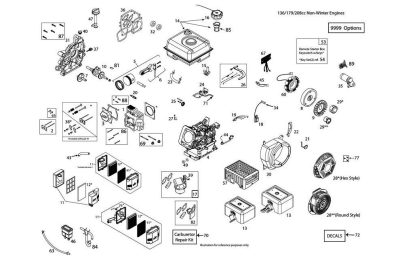

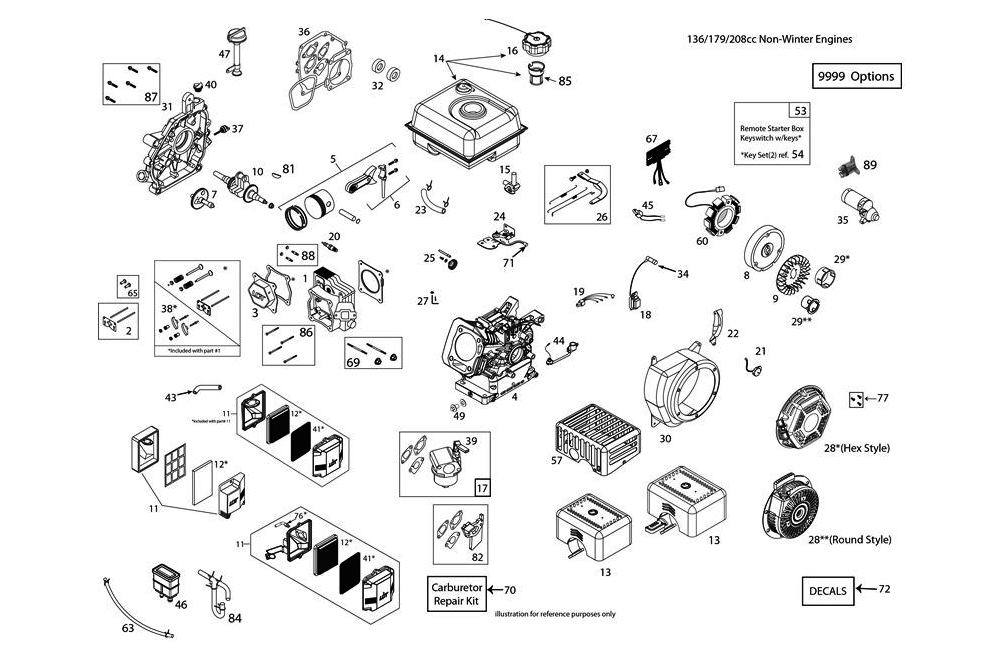

Red Lion RLAG Water Pump with LCT Engine Repair Parts, Diagram

LCT 136 CC Engine/ LCT 179CC Motor/ LCT 208cc Engine

LCT Engine Model Number #PLMHK14650124PBCKNQTUV46E4M 208 CC Engine Repair Parts

1. 20810001 Cylinder Head Assembly (including gasket)

2. 20810011Push Rod & Plate Kit (including valve cover gasket)

3. 20845011 Valve Cover (including gasket)

4. 20813061 Cylinder (Gen II no/Los)

11 . 20820051 Air Filter Assembly – Complete Small N. Poly w/hose connector

12. 20820112 Air Filter Element Only

13. 20890001 Muffler w/Catalyst

14. 20822121 Fuel Tank 3.6 Liter Black w/Plastic Cap and ROV

15. 20822211 Fuel Tank On/Off Valve 1/4″ outlet

16. 20883001 Fuel Tank Cap (Plastic Non-Vented)

17. 20824041 Caruretor LO2-2 208cc Small “N” AC (w/gaskets and spacer)

18. 20825201 Ignition Coil (Integrated CDI 208cc (Summer)

28. 20832002 Recoil Starter (Round Style-Black)

29. 20833002 Starter Cup (Round Style Starter)

70. 99002 Carburetor Repair Kit (136/208/254cc Engine)
