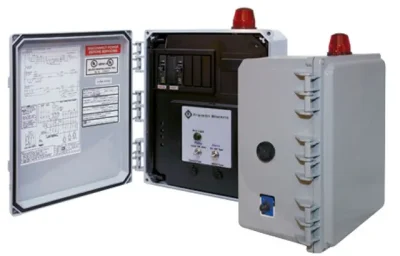

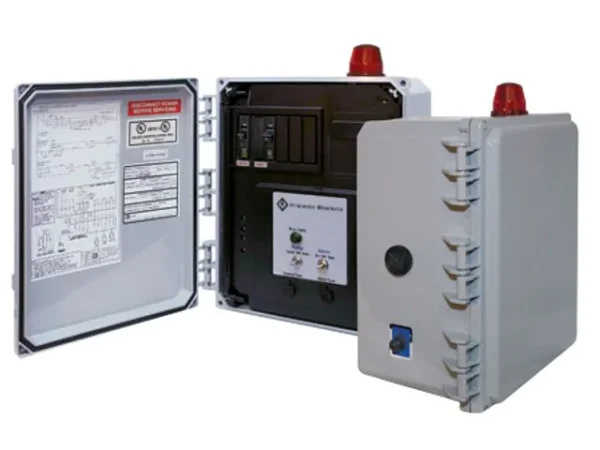

Franklin Electric Simplex Grinder Pump Control Panels
Franklin Electric Simplex Grinder Pump Control Panels are designed to manage a single IGP manual grinder pump inside a residential or light commercial sewage pump station. At Ken’s Distributing Company, we stock the full range of Franklin Electric simplex grinder pump control panels in 230V and 208-230V single phase configurations, sized from FLA 14.0 up to 30A maximum overload protection to match your specific IGP pump model and installation requirements. Every simplex panel from Kendisco includes built-in start and run capacitors, a start relay, HOA switch, and high-water alarm capability inside a NEMA 4X waterproof fiberglass enclosure ready for field installation.
What Are Simplex Grinder Pump Control Panels?
A simplex grinder pump control panel is an electrical control enclosure that manages one grinder pump inside a single wet well or sewage basin. It provides the motor starting components, operational mode selection, liquid level monitoring through float switches, and alarm output needed to run a single-pump grinder pump station safely and reliably.
The Franklin Electric simplex grinder pump control panel is specifically engineered for use with the Franklin Electric IGP Manual Series grinder pump. Because the IGP-M Manual Series does not include an internal float switch or automatic starting components, it depends on an external control panel to provide these functions. The simplex panel supplies the start relay, capacitors, and switching logic that the IGP-M requires for proper and code-compliant operation.
Simplex grinder pump control panels are the standard choice for single-family residential grinder pump stations, where one pump handles the full sewage load of the property. For applications requiring redundancy or higher usage capacity, Ken’s Distributing Company also supplies Franklin Electric duplex grinder pump control panels that manage two pumps in a single wet well.
Simplex Grinder Pump Control Panel Technical Specifications
| Specification | Detail |
|---|---|
| Panel Type | Simplex (Single-Pump) Grinder Pump Control |
| Enclosure Rating | NEMA 4X Fiberglass (Waterproof, Corrosion-Resistant) |
| Available Phase | Single Phase |
| Voltage Options | 208V, 230V |
| FLA Range | 14.0A to 30A Maximum Overload Protection |
| Motor Starting Components | Start and Run Capacitors, Start Relay (Built-In) |
| Operation Modes | Hand, Off, Auto (HOA Switch) |
| Alarm Type | Audible and Visual High-Water Alarm |
| Alarm Switch | Alarm ON/OFF Switch Included |
| Safety Listing | cULus Listed |
| Compatible Pump | Franklin Electric IGP Manual Series Grinder Pump |
| Third-Party Compliance | Yes, Required for IGP-M Series Operation |
Order Information
Single Phase Control Panels
Applications and Industries
Franklin Electric Simplex Grinder Pump Control Panels are used in any installation where a single IGP grinder pump serves a residential property or light commercial building connected to a low-pressure sewer system. Ken’s Distributing Company supplies these panels to plumbers, electricians, pump system contractors, and municipalities installing or replacing grinder pump stations.
- Single-family residential grinder pump stations connected to municipal low-pressure sewer systems
- Homes located below the gravity sewer line requiring sewage ejection
- Rural properties with long force main runs to the sewer connection point
- Light commercial buildings with simplex sewage pump station requirements
- New construction where local code requires a grinder pump station with listed control panel
- Replacement panels for existing simplex grinder pump basins with IGP-M Manual Series pumps
- Simplex grinder pump system installations where third-party panel compliance is required
Features and Benefits of the Franklin Electric Simplex Grinder Pump Control Panel
- NEMA 4X fiberglass enclosure delivers full waterproof and corrosion-resistant protection for outdoor wall mounting, wet locations, and installations adjacent to the wet well riser where moisture exposure is constant
- Built-in start and run capacitors along with start relay provide all the motor starting components the IGP-M Manual Series requires, eliminating the need for a separate capacitor kit and ensuring the system meets Franklin Electric operating requirements
- HOA (Hand-Off-Auto) switch gives the operator three clear operating modes: run the pump manually for testing or service, shut the pump off completely, or return it to automatic operation controlled by the float switch
- High-water alarm with both audible and visual output alerts the property owner or service technician when liquid levels inside the wet well rise above the normal operating range, providing early warning before a sewage backup can occur
- Alarm ON/OFF switch allows the alarm output to be silenced or deactivated without affecting pump operation during service or troubleshooting
- cULus listing confirms the panel meets recognized North American electrical safety standards, satisfying local code requirements and third-party approval conditions for IGP-M Series pump installations
- Multiple FLA ratings available from 14.0A to 30A maximum overload protection, giving installers the right panel size for the specific IGP pump model and lead length installed in the wet well
- Straightforward wiring layout reduces installation time and minimizes the risk of field wiring errors during commissioning
Installation and Compatibility
Franklin Electric Simplex Grinder Pump Control Panels are designed exclusively for use with the Franklin Electric IGP Manual Series Grinder Pump. The IGP-M Series does not include internal automatic starting components, which means a compatible external control panel is required for proper operation and for maintaining third-party compliance approval. Using an incompatible panel with the IGP-M Series is not recommended and may void compliance ratings.
When selecting a simplex panel, match the panel FLA rating to the full load amp draw of your installed IGP-M pump model. The standard IGP-M231 single phase pump draws 13.9A at 230V. Any of the simplex panels rated at FLA 14.0 or higher are compatible with this pump. The FLA 15-20 and FLA 16 panels provide additional headroom, and the 30A maximum overload protection model is the appropriate choice when the installation requires maximum capacity flexibility.
The panel is designed for single phase 208V or 230V electrical service. Confirm your available site voltage before selecting a model. Three phase simplex grinder pump applications require a different panel configuration. Contact Ken’s Distributing Company if you need a three phase simplex panel recommendation.
Float switches are required for automatic operation and are sold separately. The simplex panel uses float switches to control the pump on level, pump off level, and high-water alarm level inside the wet well. Kendisco can help you identify the correct float switch type and quantity for your wet well design and installation depth.
The NEMA 4X enclosure is suitable for outdoor wall mounting and indoor wet location installation. Mount the panel at a height that keeps it accessible for service while keeping it clear of potential flood levels in the installation area. The enclosure does not include a padlock provision on all models, so check your local code requirements for panel security in shared or publicly accessible locations.
Simplex Grinder Pump Control Panel Replacement Parts and Accessories
If you need replacement components for an existing Franklin Electric simplex grinder pump control panel, Ken’s Distributing Company carries genuine Franklin Electric service parts and accessories through Kendisco. This includes compatible capacitors, relays, float switches, and other repair components to keep your simplex panel operating correctly.
Visit our Franklin Electric replacement parts and repair kits page to find the components that match your panel model number. Our team at Ken’s Distributing Company is available to help you identify the correct replacement part for your specific panel and pump configuration.
Frequently Asked Questions About Franklin Electric Simplex Grinder Pump Control Panels
What is a simplex grinder pump control panel used for?
A simplex grinder pump control panel manages a single grinder pump inside a residential or light commercial sewage pump station. It provides the motor starting components, operational mode switching, float switch inputs for liquid level control, and high-water alarm output needed to run a single IGP grinder pump station safely and in compliance with local electrical and plumbing codes.
Does the simplex panel work with the IGP Automatic Series pump?
The Franklin Electric simplex grinder pump control panel is specifically designed for the IGP Manual Series pump, which requires an external panel for starting components and operational control. The IGP Automatic Series includes an internal float switch for basic on/off operation and may not require a full external panel for simple installations. However, a control panel is still recommended for alarm capability and HOA switching in most residential installations. Contact Kendisco to confirm the right panel and pump combination for your specific project.
Is the simplex grinder pump control panel cULus listed?
Yes. The Franklin Electric simplex grinder pump control panel carries a cULus listing, which confirms it meets recognized North American electrical safety standards. This listing is required by many municipalities and local codes for grinder pump station installations and is also required to maintain third-party compliance approval for the Franklin Electric IGP Manual Series pump system.
How many float switches does the simplex panel use?
The Franklin Electric simplex grinder pump control panel uses float switches for automatic pump operation and high-water alarm. Float switches are sold separately from the panel. Contact Ken’s Distributing Company to select the correct float switch type and quantity for your wet well diameter, depth, and required operating levels.
What is the difference between the simplex and duplex grinder pump control panels?
A simplex grinder pump control panel manages one pump in a single wet well. It is the standard choice for residential properties with a single grinder pump station. A duplex grinder pump control panel manages two pumps, alternating between them to balance wear and provide redundancy. Duplex panels are used in commercial properties, multi-family housing, HOA lift stations, and any application where a single pump failure would result in immediate sewage backup and continuous operation is required. Kendisco supplies both simplex and duplex panels from Franklin Electric.
Which simplex panel model should I choose for the IGP-M231 pump?
The Franklin Electric IGP-M231 single phase pump draws 13.9A at 230V. Any simplex panel rated at FLA 14.0 or higher is compatible with this pump. The FLA 14.0 panel (item 515357) is the closest match for standard residential installations. The FLA 15-20 range panel (item 515364) and FLA 16 panel (item 515354) provide additional overload headroom. The 30A maximum overload protection panel (item 515361) is the appropriate choice for installations that need maximum capacity flexibility or where local code requires additional protection margin. Contact Ken’s Distributing Company if you are unsure which model is right for your installation.
Can I use the simplex panel outdoors?
Yes. The NEMA 4X fiberglass enclosure on the Franklin Electric simplex grinder pump control panel provides full waterproof and corrosion-resistant protection, making it suitable for outdoor wall mounting in exposed locations. The NEMA 4X rating covers protection against rain, windblown water, splashing, and corrosion, which are the typical environmental conditions around a residential grinder pump station installation.
