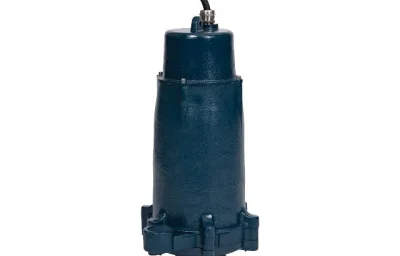

Franklin Electric High Head IGP Series Grinder Pump
The Franklin Electric High Head IGP Series Grinder Pump is a dual-stage hydraulic sewage grinder pump engineered for residential and light commercial wastewater applications requiring higher discharge head than a standard grinder pump can deliver. At Ken’s Distributing Company, we supply the complete IGPH Series lineup in both manual and automatic configurations, covering single-phase and three-phase electrical options for a wide range of installation requirements. The Kendisco team is ready to help you select the correct IGPH model for your specific head pressure, flow rate, and electrical supply conditions.
Rated at 30 GPM at 100 feet of head with a shutoff head of 200 feet, the IGPH Series handles sewage transfer over long horizontal force main distances or significant elevation changes where the standard IGP Series reaches its performance limit. With 414,000 cuts per minute from its precision cutting system and corrosion-resistant brass impellers, this pump delivers consistent grinding performance and long service life in demanding wastewater environments.
What Is the Franklin Electric High Head IGP Series Grinder Pump?
The Franklin Electric High Head IGP Series, designated IGPH, is the high-pressure variant of Franklin Electric’s IGP grinder pump line. Where the standard IGP Series handles sewage transfer up to approximately 130 feet of shutoff head, the IGPH Series extends that capability to 200 feet of shutoff head using a dual-stage hydraulic design that builds greater discharge pressure without increasing motor size beyond 2 HP.
A grinder pump works by receiving raw sewage from a building drain into a wet well, grinding the solids into a fine slurry using a high-speed cutting system, and then pumping that slurry under pressure through a small-diameter force main to the municipal sewer connection or treatment facility. The high-head version of this pump is specifically selected when the force main run is long, when the discharge point is at a significantly higher elevation than the pump, or when system friction losses are high due to pipe diameter, fittings, or distance.
Ken’s Distributing Company stocks IGPH pumps for contractors, municipalities, HOA system managers, and homeowners who need a reliable, immediately available high-head grinder pump. Kendisco also carries compatible control panels, retrofit kits, and replacement parts to support the complete service life of the system.
Important: The IGPH Series requires a specific control panel or capacitor kit from Franklin Electric FPS, matched to the pump model, for proper operation and third-party approval. Contact Ken’s Distributing Company before ordering to confirm the correct panel or capacitor kit for your selected IGPH model.
Technical Specifications
General Specifications
| Specification | Detail |
|---|---|
| Horsepower | 2 HP |
| Maximum Flow Rate | 30 GPM at 100 ft of head |
| Shutoff Head | 200 ft (61 m) |
| Max Liquid Temperature | 140 F (60 C) |
| Discharge Connection | 1-1/4 inch vertical FNPT |
| Impeller Material | Brass (upper and lower) |
| Mechanical Seal | Carbon and ceramic |
| Cutting Speed | 414,000 cuts per minute |
| Hydraulic Design | Dual-stage |
| Operation Modes Available | Manual or Automatic |
| Finish | Epoxy-coated |
Electrical Options
| Voltage | Phase | Frequency | Full Load Amps |
|---|---|---|---|
| 208-230 V | Single Phase | 60 Hz | 18.5 A |
| 208-230 V | Single Phase | 60 Hz | 16 A |
| 208-230 V | Three Phase | 60 Hz | 13 A |
| 460 V | Three Phase | 60 Hz | 6 A |
IGPH Series Performance Curve
| Head (Feet) | Flow Rate (GPM) | Flow Rate (LPM) |
|---|---|---|
| 100 ft | 30 | 113.6 |
| 125 ft | 24 | 90.8 |
| 150 ft | 18 | 68.1 |
| 175 ft | 10 | 37.9 |
Order Information
Manual High-Head Grinder Pump
Single Phase
| Item | Model | HP | Volts | Discharge | Amps – Full Load | Lead Length |
|---|---|---|---|---|---|---|
| 515712 | IGPH-M231-30 | 2 hp | 230 VAC | 1.25 “ | 18.5 A | 30 ft |
| 515700 | IGPHR-M231-30 | 2 hp | 230 VAC | 1.25 “ | 16 A | 30 ft |
Three Phase
| Item | Model | HP | Volts | Discharge | Amps – Full Load | Lead Length |
|---|---|---|---|---|---|---|
| 515704 | IGPH-M233-30 | 2 hp | 230 VAC | 1.25 “ | 13 A | 30 ft |
| 515706 | IGPH-M463-30 | 2 hp | 460 VAC | 1.25 “ | 6 A | 30 ft |
Automatic High-Head Grinder Pump
Single Phase
| Item | Model | HP | Volts | Discharge | Amps – Full Load | Lead Length |
|---|---|---|---|---|---|---|
| 515713 | IGPH-A231-30 | 2 hp | 230 VAC | 1.25 “ | 18.5 A | 30 ft |
| 515716 | IGPH-A231-30 | 2 hp | 230 VAC | 1.25 “ | 18.5 A | 30 ft |
| 515701 | IGPHR-A231-30 | 2 hp | 230 VAC | 1.25 “ | 16 A | 30 ft |
| 515711 | IGPHR-A231-30 | 2 hp | 230 VAC | 1.25 “ | 16 A | 30 ft |
Applications and Industries
The Franklin Electric High Head IGP Series Grinder Pump is selected for applications where standard grinder pump head pressure is insufficient. Common use cases include:
- Residential properties with long horizontal force main runs to the municipal sewer connection
- Homes on hilly or elevated terrain where sewage must be pumped uphill over significant grade changes
- Rural properties with extended distances between the pump station and the sewer main
- HOA and community low-pressure sewer systems with multiple homes sharing a single force main
- Light commercial buildings requiring sewage ejection over distances that exceed standard IGP Series capability
- Municipal utility district installations specifying high-head grinder pump performance for engineered system designs
- Replacement of failed high-head positive displacement grinder pumps in existing wet wells
- New construction in low-pressure sewer service areas with engineered head pressure requirements above 130 feet
Features and Benefits
- Dual-Stage Hydraulic Design: Two hydraulic stages build higher discharge pressure than a single-stage pump, reaching 200 feet of shutoff head without requiring a larger motor. This makes the IGPH ideal for long-distance and high-elevation sewage transfer
- 414,000 Cuts Per Minute Cutting System: The precision cutting mechanism grinds sewage solids into fine slurry at high speed, preventing force main clogs and protecting the hydraulic components from wear caused by oversized particles
- Corrosion-Resistant Brass Impellers: Upper and lower brass impellers resist corrosion from sewage chemistry, reducing maintenance frequency and extending overall pump service life
- Carbon and Ceramic Mechanical Seal: The mechanical seal combination provides reliable long-term sealing against sewage infiltration into the motor, supporting extended service intervals
- Short, Deflection-Resistant Motor Shaft: The rigid shaft design minimizes deflection under load, reducing bearing wear and maintaining precise cutting clearances over time
- Externally Mounted Start Components: Starting capacitors and related components are mounted outside the pump body for easy access during service, without requiring wet well entry or pump removal
- Epoxy-Coated Finish: The exterior epoxy coating protects the pump body and motor housing from the corrosive wet well environment, extending cosmetic and structural life
- Integrated Overload Protection: Built-in thermal overload protection prevents motor damage from overheating or overcurrent conditions, reducing the risk of premature pump failure
- Manual and Automatic Operation Options: Available in both manual (float switch external) and automatic (integrated float switch) configurations to match your control panel and installation requirements
- Multiple Voltage and Phase Options: Available in single-phase 230V and three-phase 230V and 460V configurations, covering a wide range of residential and light commercial electrical supply conditions
Installation and Compatibility
The Franklin Electric High Head IGP Series Grinder Pump is designed for installation in simplex or duplex grinder pump wet wells by licensed plumbers, wastewater contractors, or pump service technicians. Before selecting this pump, verify that total dynamic head in your system actually requires the IGPH Series. If your total head is 130 feet or less, the standard IGP Series may be the more appropriate and cost-effective choice.
Key installation considerations include:
- Control Panel Requirement: The IGPH Series requires a Franklin Electric FPS-matched control panel or capacitor kit specific to the pump model. Do not install an IGPH pump on a generic or non-matched control panel. Contact Ken’s Distributing Company to confirm the correct panel before purchasing
- Electrical Supply: Select the correct voltage and phase option for your service. Single-phase 230V models draw either 18.5 A or 16 A depending on model. Three-phase options draw 13 A at 230V or 6 A at 460V. Verify your panel and wiring are rated for the selected pump before installation
- Discharge Piping: The 1-1/4 inch vertical FNPT discharge connection is compatible with standard schedule 40 PVC force main piping. Inspect all existing force main piping for condition before installing a replacement pump
- Lead Length: All IGPH models listed here include a 30-foot power lead. Verify this is adequate for your wet well depth and conduit routing before ordering
- Wet Well Compatibility: The IGPH pump can be used as a replacement pump in existing PowerSewer systems, simplex systems, and duplex systems that are designed for FPS IGP Series grinder pumps. Confirm basin diameter and pump support compatibility before installation
- System Head Calculation: Calculate total dynamic head including static lift, pipe friction losses, and fitting losses before selecting between the IGP and IGPH models. Kendisco can assist with this calculation if needed
Replacement Parts and Service
Franklin Electric replacement parts for the IGPH Series grinder pump are available through Ken’s Distributing Company. Kendisco stocks genuine Franklin Electric grinder pump service components to support fast repair turnaround and minimize system downtime.
For parts support, visit our Franklin Electric replacement parts and repair kits page or contact the Kendisco team with your model number for immediate part identification and shipping.
Related grinder pump products available from Ken’s Distributing Company include:
- Standard IGP Series grinder pump for systems with head requirements up to 130 feet
- Grinder pump retrofit kit for replacing existing positive displacement systems
- Complete simplex grinder pump system for new installations
- Duplex grinder pump system for redundant commercial sewage stations
Frequently Asked Questions
What is the Franklin Electric High Head IGP Series Grinder Pump used for?
The Franklin Electric High Head IGP Series Grinder Pump, designated IGPH, is used for residential and light commercial sewage transfer applications where the total dynamic head exceeds what the standard IGP Series can handle. It is the correct choice when the force main run is long, when the discharge elevation is significantly higher than the pump, or when system friction losses push total head above 130 feet. It reaches a shutoff head of 200 feet using a dual-stage hydraulic design.
What is the difference between the IGP Series and the High Head IGP Series?
The standard Franklin Electric IGP Series is a single-stage grinder pump rated for sewage transfer up to approximately 130 feet of shutoff head. The High Head IGP Series uses a dual-stage hydraulic design to reach 200 feet of shutoff head. Both pumps use the same 2 HP motor and share a similar footprint, but the IGPH is selected when head pressure requirements exceed the capability of the standard model. The IGPH also draws higher amperage and requires a matched control panel or capacitor kit from Franklin Electric FPS.
Does the IGPH Series require a special control panel?
Yes. The Franklin Electric IGPH Series requires a specific control panel or capacitor kit from FPS that is matched to the pump model. Using a non-matched or generic panel can result in improper operation and will void third-party approval listings. Ken’s Distributing Company can help you identify and order the correct control panel for your selected IGPH model before installation begins.
What is the maximum head the High Head IGP Series can achieve?
The Franklin Electric IGPH Series achieves a shutoff head of 200 feet, which is 61 meters. At 100 feet of head, it delivers 30 GPM. Flow rate decreases as head increases, reaching 10 GPM at 175 feet of head. For head requirements beyond 175 feet, consult Ken’s Distributing Company for guidance on alternative pump solutions.
Can the High Head IGP pump be used as a retrofit replacement?
Yes. The Franklin Electric IGPH grinder pump is available as part of the grinder pump retrofit kit lineup for replacing failed positive displacement or standard grinder pumps in existing wet wells. The 1-1/4 inch FNPT discharge connection is compatible with standard force main piping used in most residential grinder pump systems. Contact Kendisco to confirm wet well and piping compatibility before ordering the retrofit version of this pump.
What is the cutting speed of the IGPH grinder pump?
The Franklin Electric High Head IGP Series delivers 414,000 cuts per minute through its precision cutting system. This high cutting speed grinds household sewage solids, including fibrous materials, into a fine slurry that moves freely through small-diameter force main piping without causing clogs at the pump or in the line.
Is the IGPH Series available in three-phase power?
Yes. The Franklin Electric IGPH Series is available in three-phase configurations for both 230V and 460V electrical supply. The 230V three-phase model draws 13 amps at full load and the 460V three-phase model draws 6 amps at full load. Three-phase models are typically selected for light commercial installations or municipal utility applications where three-phase power is available at the pump station. Contact Ken’s Distributing Company to order three-phase IGPH models.
