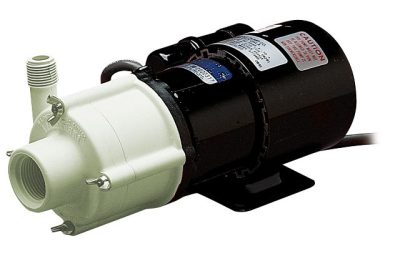

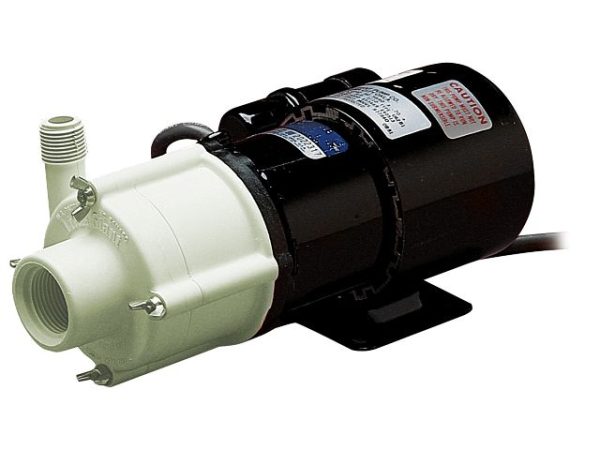

TE-4-MD-SC Series Magnetic Drive Pump
Able to handle fluid temperatures up to 150 °F (66 °C), the TE-4-MD-SC non-submersible magnetic pump circulates mildly corrosive solutions. It can achieve 850 gph at 1′ head powered by a 1/10 hp totally-enclosed, fan-cooled split capacitor motor.
Features & Benefits
- 1/10 hp TEFC PSC motor
- Glass-filled polypropylene magnet housing
- Glass-filled polypropylene volute
- 1.1 specific gravity
- Nitrile O-ring
- Ceramic thrust washers and shaft
Overview
The TE-4-MD-SC Series features a thermally protected, totally enclosed, permanent split capacitor motor plus sleeve bearings and a 6′ power cord with a 3-prong plug. Includes capabilities of 3000 rotations per minute, specific gravity to 1.1, fluid temperature to 150 °F (66 °C), and ambient air temperature to 77 °F (25 °C).
Specifications
| Capacity | 850 gph @ 1′ |
| Shut Off | 24′ (7.3 m) |
| Max. Liquid Temp. | 150 °F (66 °C) |
| Discharge | 1/2″ MNPT (12.7 mm) |
| Impeller | Glass-filled polypropylene |
| Electrical | 115 V, 60 Hz, 1.7 A 230 V, 50/60 Hz, 0.5/0.7 A |
Performance
115 or 230 V, 60 Hz
| Head | GPH (LPH) |
| 1′ | 850 (3217.6) |
| 3′ | 810 (3066.2) |
| 6′ | 765 (2895.8) |
| 9′ | 710 (2687.6) |
| 15′ | 550 (2082) |
Order Information
TE-4-MD-SC Series Chemical Transfer Pump
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 582514 | TE-4 | 230 VAC | 14 gpm / 840 gph | 24.3 ft |
