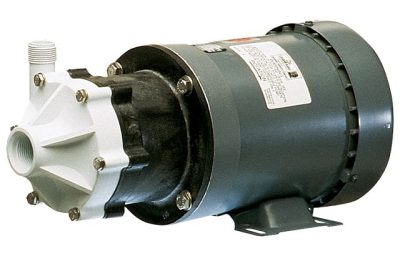

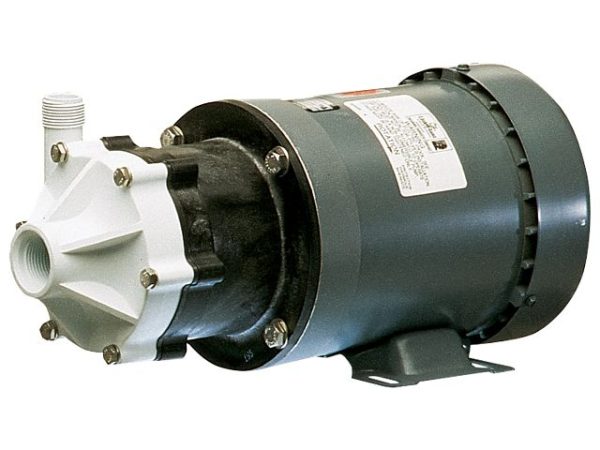

The TE-5.5-MD-SC is a chemical process pump engineered to recirculate or transfer semi-corrosive solutions such as compatible acids, alkalis, plating, or salt solutions. It is a leak-proof, seal-less magnetic drive that eliminates friction loss, wear, leakage, and contamination.
Designed for intermittent duty, the TE-5.5-MD-SC Series includes pump heads and impellers that are glass-filled polypropylene for optimum chemical resistance. Engineered to meet the most demanding mildly corrosive chemical requirements.
| Capacity | 1900 gph @ 5′ |
| Shut Off | 40.5′ (12.3 m) |
| Max. Liquid Temp. | 150 °F (66 °C) |
| Discharge | 3/4″ MNPT (19 mm) |
| Impeller | Glass-filled polypropylene w/ carbon bushing |
| Electrical | 115 V, 50/60 Hz, 5.4/5.0 A 230 V, 50/60 Hz, 2.8/2.5 A |
| Head | GPH (LPH) |
| 5′ | 1900 (7192.3) |
| 10′ | 1825 (6908.4) |
| 20′ | 1550 (5867.4) |
| 30′ | 1150 (4353.2) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 585504 | TE-5.5-MD-SC | 115 VAC / 230 VAC | 31.7 gpm / 1902 gph | 40.5 ft |
