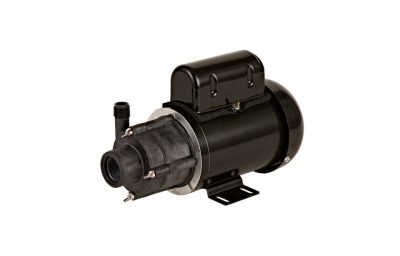

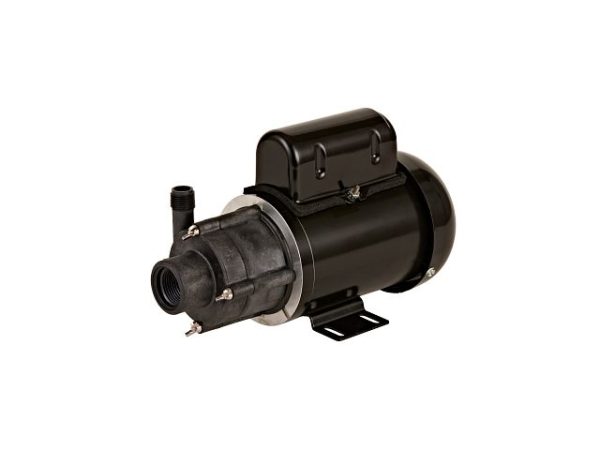

The TE-5-MD-HC is used as a non-submersible or in-line pump for circulating highly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other highly corrosive chemicals and solutions compatible with the pump’s material of construction.
The TE-5-MD-HC features the patented Little Giant magnetic drive pump design driven by an enclosed, fan-cooled permanent split capacitor motor. The motor is thermally protected to prevent dangerous overheating which can result in possible motor failure. The volute, housing, and impeller are constructed of glass-filled Ryton® with carbon bushing added to the impeller for added corrosion resistance. This pump is designed to handle fluid temperatures to 200 °F (93.3 °C).
| Capacity | 20 gpm @ 1′ |
| Shut Off | 29.3′ (8.9 m) |
| Max. Liquid Temp. | 200 °F (93.3 °C) |
| Discharge | 1/2″ MNPT (12.7 mm) |
| Impeller | Glass-filled polyphenylene sulfide w/ carbon bushing |
| Electrical | 115 V, 50/60 Hz, 2.3/3 A 230 V, 50/60 Hz, 1.3/1.4 A |
| Head | GPM (LPM) |
| 1′ | 20 (76) |
| 3′ | 19.2 (72.7) |
| 6′ | 18.2 (68.9) |
| 9′ | 17 (64) |
| 15′ | 14.8 (56) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 584604 | TE-5-MD-HC | To Be Configured | 20 gpm / 1200 gph | 29.3 ft |
| Item | Model | Description |
|---|---|---|
| 584698 | TE-5 | TE-5-MD-HC, Magnetic Drive Pump Less Motor, 17.5 GPM |
