Generating an impressive 62.9 PSI, the UPSP Series is power-packed when it comes to pressure boosting. This multipurpose pump is ideal for use in washing vehicles, flooded basements, watering lawns cleaning driveways/ sidewalks, draining water heaters, and more.

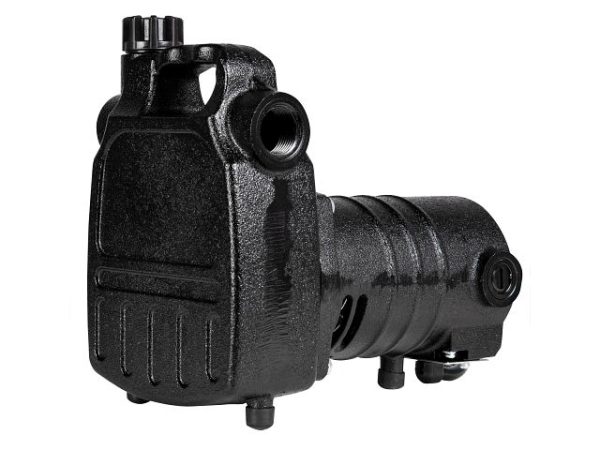

The UPSP Series is a portable, non-submersible utility pressure boosting pump made of durable cast-iron construction throughout and includes a thermoplastic impeller for effortless water flow and efficiency. An integral carrying handle makes transporting easy. Designed to resist up to 140 °F (60 °C) liquid temperatures, the UPSP Series is the preferred choice for utility pressure boosting applications.
| Capacity | 1600 gph @ 20′ |
| Shut Off | 145′ (44 m) |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Intake / Discharge | 3/4″ (19mm) brass garden hose adapter |
| Impeller | Thermoplastic |
| Electrical | 115 V, 60 Hz, 10 A |
| Operation | Self-Priming |
| Head | GPH (LPH) |
| 20′ | 1600 (6057) |
| 40′ | 1400 (5300) |
| 60′ | 1200 (4542) |
| 80′ | 1000 (3785) |
| 100′ | 800 (3028) |
| Item | Model | Volts | Cord Length | Discharge |
|---|---|---|---|---|
| 555104 | UPSP-5 | 115 VAC | 10 ft | 0.75 “ |
