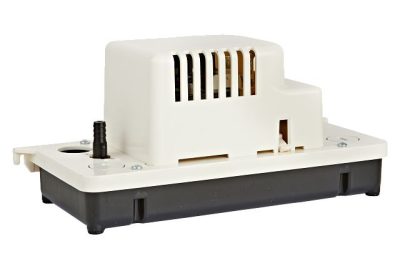

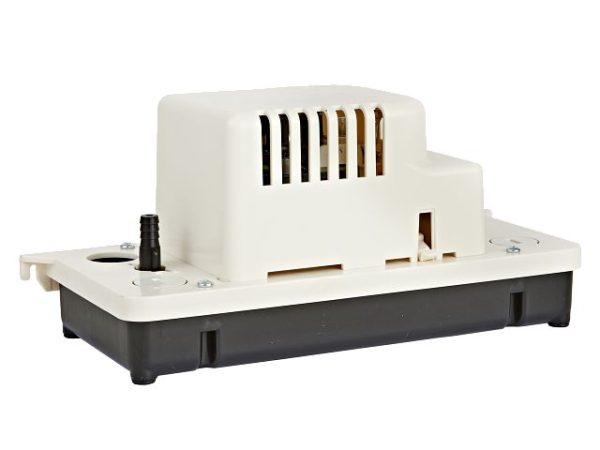

Little Giant’s VCCA-20ULS condensate pump features a low-profile design for automatic collection and removal of condensate from air conditioning, refrigeration, and dehumidification equipment when gravity drainage is not possible or practical due to limited space. It’s also suitable for high-efficiency oil and gas-fired condensing furnace and condensing boiler equipment.
Ideal for small spaces where condensation removal is necessary, the VCCA-20ULS low profile condensate pump boasts a compact design including a 1/2-gallon tank capacity and is equipped with a float/switch mechanism for automatic start and stop functionality. The low profile condensate pump also includes an auxiliary switch that is configured to open a thermostat circuit in the event of high-water level in the pump reservoir – thereby stopping the production of condensate. The unit has a high-impact polymer pump base, stainless steel shaft, and ABS plastic tank cover and switch housing. This model also includes an ABS tank, motor cover, and volute with stainless steel shaft. Easy access for routine inspection and maintenance.
| Capacity | 80 gph @ 1′ |
| Shut Off | 20′ (6.1 m) / 115 V 17′ (5.2 m) / 230 V |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 3/8″ barbed (9.5 mm) |
| Impeller | Glass-filled Polypropylene |
| Electrical | 115 V, 60 Hz, 1.5 A 230 V, 50/60 Hz, 0.6/.05 A |
| Operation | Automatic |
| Head | GPH (LPH) |
| 1′ | 80 (303) |
| 5′ | 70 (265) |
| 10′ | 45 (171) |
| 18′ | 10 (38) |
| Item | Model | Volts | Shut-Off | Safety Switch | Tubing Included |
|---|---|---|---|---|---|
| 554201101 | VCCA-20ULS | 115 VAC | 20 ft | Yes | No |
| 554202101 | VCCA-20ULS | 230 VAC | 17 ft | Yes | No |
