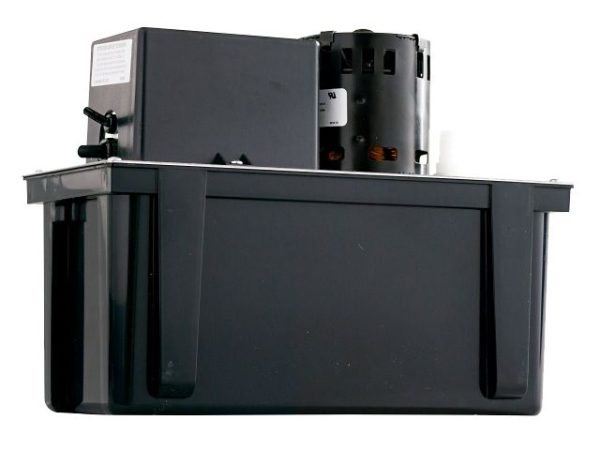

Equipped with a built-in reservoir, the VCL-14ULS condensate pump works alongside your HVAC system to remove condensation in high-efficiency gas furnaces, condensing boilers, air conditioning units, and other no-gravity applications. It includes a 1-gallon collection tank to handle large-scale applications.
VCL-14ULS Series condensate pump is designed for large tank applications and rated for high-efficiency gas furnace applications that produce acidic condensate. Equipped with a galvanized steel tank cover to accommodate periods of high-flow drain or cycling, the pump is controlled by a float/switch mechanism which turns the pump on when approximately 3-1/2″ of water collects in the tank, and automatically switches off when the tank drains to approximately 2″.
| Capacity | 200 gph @ 1′ |
| Shut Off | 14′ (4.3 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 3/8″ barbed (9.5 mm) |
| Impeller | Glass-filled Polypropylene |
| Electrical | 115 V, 60 Hz, 1 A |
| Operation | Automatic |
| Head | GPH (LPH) |
| 1′ | 200 (758) |
| 3′ | 185 (701) |
| 5′ | 170 (644.3) |
| 10′ | 125 (473.8) |
| Item | Model | Volts | Shut-Off | Safety Switch | Tubing Included |
|---|---|---|---|---|---|
| 553101 | VCL-14ULS | 115 VAC | 14 ft | Yes | No |
