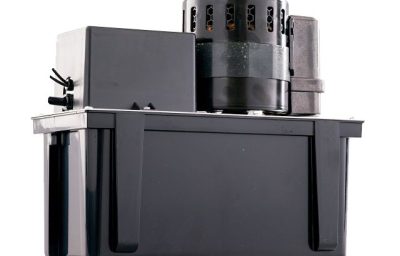

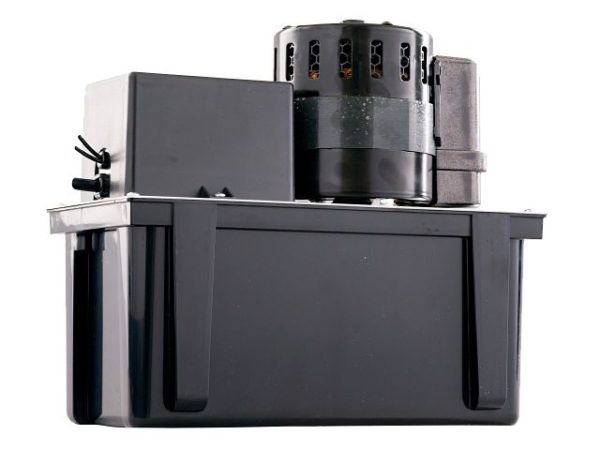

The Little Giant VCL-45ULS large-capacity condensate pump is ideal for collecting, detecting, and automatic removal of condensate from air conditioning equipment, dehumidifiers, high-efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required.
The VCL-45ULS condensate pump is a vertical type pump unit equipped with a 1-gallon tank capacity for commercial condensate removal applications. With a flow rate of 450 gph, the VCL-45 Series pump is rated for high-efficiency gas furnace applications that produce acidic condensate. The included safety switch can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflow.
| Capacity | 450 gph @ 1′ |
| Shut Off | 45′ (13.7 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 3/8″ copper tubing (9.5 mm) |
| Impeller | Glass-filled Polypropylene |
| Electrical | 115 V, 60 Hz, 3.5 A 230 V, 50/60 Hz, 1 A |
| Operation | Automatic |
| Head | GPH (LPH) |
| 1′ | 450 (1705.5) |
| 3′ | 445 (1686.6) |
| 5′ | 440 (1667.6) |
| 9′ | 415 (1572.9) |
| 15′ | 380 (1440.2) |
| Item | Model | Volts | Shut-Off | Safety Switch | Tubing Included |
|---|---|---|---|---|---|
| 553240 | VCL-45ULS | 115 VAC | 45 ft | Yes | No |
| 553245 | VCL-45ULS | 230 VAC | 45 ft | Yes | No |
