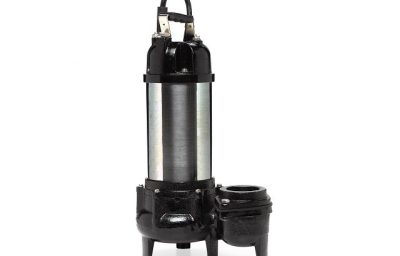

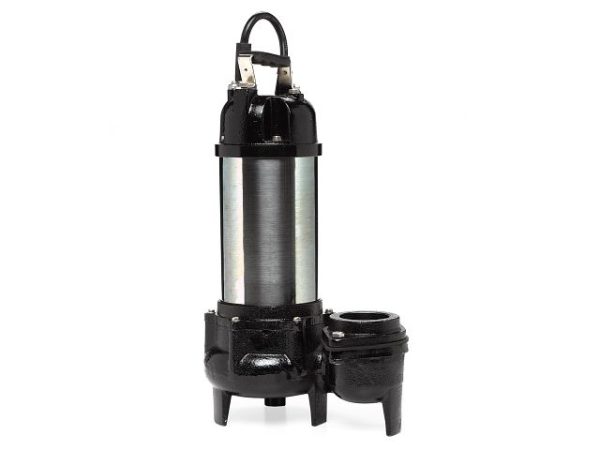

Designed for submersible use and continuous operation, the WGFP Series submersible direct drive pump are ideal for water features and working as a water fountain pump. Available in four sizes to meet a wide variety of needs.
Constructed with stainless steel, cast iron, and durable thermoplastic, our solids-handling submersible direct drive pump meets the rigorous demands of the most spectacular water displays while acting as a water fountain pump. Circulation capacity ranges from 4890 gph at 5′ to an impressive 16000 at 5′.
| Head | WGFP-75 GPH (LPH) | WGFP-100 GPH (LPH) | WGFP-150 GPH (LPH) | WGFP-200 GPH (LPH) |
| 5′ | 4890 (18511) | 6400 (24227) | 9750 (36908) | 16000 (60567) |
| 10′ | 4350 (16467) | 5500 (20820) | 8200 (31040) | 15000 (56781) |
| 15′ | 3750 (14195) | 4700 (17791) | 6500 (24605) | 13410 (50762) |
| 20′ | 3070 (11621) | 3700 (14006) | 4600 (17413) | 11575 (43816) |
| 25′ | 2262 (8563) | 2500 (9464) | 2200 (8328) | 9775 (37002) |
| 30′ | – | – | – | 7645 (28939) |
| 35′ | – | – | – | 5610 (21236) |
| 40′ | – | – | – | 3120 (11810) |
| Item | Model | Full Load Watts | Cord Length | Shut-Off |
|---|---|---|---|---|
| 566070 | WGFP-100 | 1210 W | 19 ft | 35 ft |
| 566069 | WGFP-75 | 847 W | 19 ft | 36 ft |
| 566071 | WGFP-150 | 1210 W | 19 ft | 32 ft |
| 566072 | WGFP-200 | 2085 W | 32 ft | 45 ft |
