The WS Effluent Series effluent pump is utilized in effluent wastewater removal, dewatering or water transfer applications where the total head required (including pipe friction losses) does not exceed the pump’s maximum capability. Its gallons per minute performance at 10′ ranges from 90 to 150 gpm.

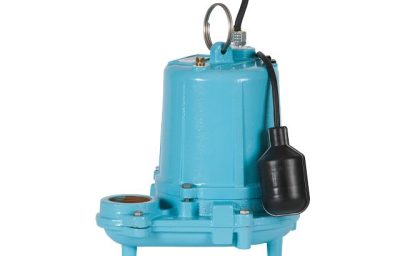

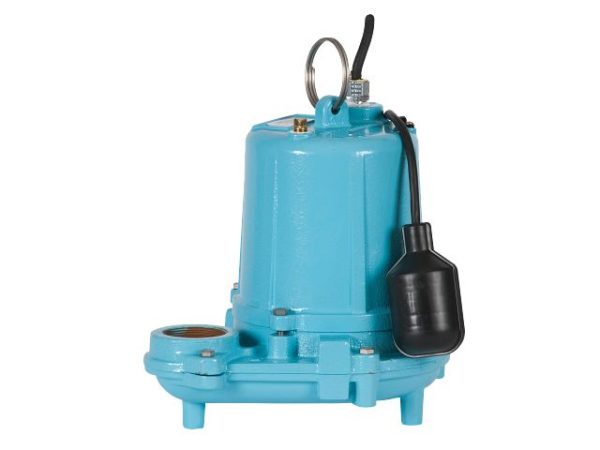

The Little Giant WS Effluent Series effluent pump is a reliable partner in effluent wastewater removal. Constructed of a rigid cast iron housing, impeller, and volute, the WS Effluent Series efflunet pump is designed for high-torque performance and offer both manual and automatic operation models, as well as a 20′ or 30′ cord option.
| WS30M | WS50M | WS50H | WS100H | |
| Capacity | 90 gpm @ 10′ | 90 gpm @ 10′ | 115 gpm @ 10′ | 150 gpm @ 10′ |
| Horsepower | 1/3 hp | 1/2 hp | 1/2 hp | 1 hp |
| Shut Off | 28′ (8.5 m) | 42′ (12.8 m) | 63′ (19.2 m) | 90′ (27.4 m) |
| Max. Liquid Temp. | 120 °F (49 °C) | 120 °F (49 °C) | 120 °F (49 °C) | 120 °F (49 °C) |
| Discharge | 2″ NPT (50 mm) | 2″ NPT (50 mm) | 2″ NPT (50 mm) | 2″ NPT (50 mm) |
| Impeller | Cast iron | Cast iron | Cast iron | Cast iron |
| Electrical | 115 V, 60 Hz, 10.4 A | 115 V, 60 Hz, 11.6 A 208-230 V, 60 Hz, 9.7 A | 115 V, 60 Hz, 15 A 208-230 V, 60 Hz, 9.7 A | 208-230 V, 60 Hz, 13.6 A 460 V, 60 Hz, 3.1 A |
| Operation | Automatic or Manual | Automatic or Manual | Automatic or Manual | Automatic or Manual |
| Head | WS30 GPM (LPM) | WS50 GPM (LPM) | WS50H GPM (LPM) | WS100H GPM (LPM) |
| 10′ | 90 (340.7) | 90 (340.7) | 115 (435.3) | 150 (567.8) |
| 15′ | 70 (265) | 80 (302.8) | 107 (405) | 145 (548.9) |
| 20′ | 45 (170.3) | 64 (242.3) | 98 (371) | 140 (530) |
| 25′ | 15 (56.8) | 50 (189.3) | 88 (333.1) | 134 (507.2) |
| 30′ | – | – | 78 (295.3) | 128 (484.5) |
| 35′ | – | – | 67 (253.6) | 121 (458) |
| 40′ | – | – | 57 (215.8) | 115 (435.3) |
| 45′ | – | – | 43 (162.8) | 106 (401.3) |
| 50′ | – | – | 30 (113.6) | 97 (367.2) |
| 60′ | – | – | – | 76 (287.7) |
| 80′ | – | – | – | 27 (102.2) |
| Item | Model | HP | Volts | Switch Type | Cord Length | Discharge |
|---|---|---|---|---|---|---|
| 620010 | WS30M | 1/3 hp | 115 VAC | Manual | 20 ft | 2 “ |
| 620000 | WS30AM | 1/3 hp | 115 VAC | Piggyback Mechanical Float | 20 ft | 2 “ |
| 620200 | WS50HM | 1/2 hp | 115 VAC | Manual | 30 ft | 2 “ |
| 620219 | WS50HAM-20 | 1/2 hp | 115 VAC | Piggyback Mechanical Float | 20 ft | 2 “ |
| 620233 | WS50AM-20 | 1/2 hp | 115 VAC | Piggyback Mechanical Float | 20 ft | 2 “ |
| 620223 | WS100HAM-12-20 | 1 hp | 208 VAC / 230 VAC | Piggyback Mechanical Float | 20 ft | 2 “ |
| 620231 | WS50M-20 | 1/2 hp | 115 VAC | Manual | 20 ft | 2 “ |
| 620222 | WS100HM-12-20 | 1 hp | 208 VAC / 230 VAC | Manual | 20 ft | 2 “ |
| 620218 | WS50HM-20 | 1/2 hp | 115 VAC | Manual | 20 ft | 2 “ |
| Item | Model | HP | Volts | Switch Type | Cord Length | Discharge |
|---|---|---|---|---|---|---|
| 620206 | WS100HM-34 | 1 hp | 460 VAC | Manual | 30 ft | 2 “ |
