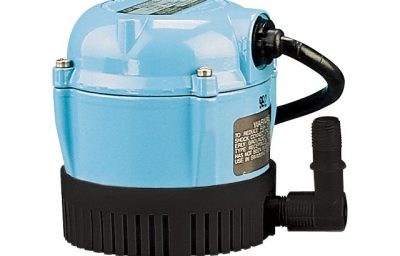

The 1-A Series small oil-filled submersible pump is intended to be used completely submerged. It is a permanently lubricated pump utilized for commercial, industrial, and home applications, including statuary fountains, water displays, air conditioner condensate removal, machine tool coolants, and many other applications in which liquid must be transferred or recirculated. This pump is intended for pumping water only and can be used to empty aquariums or other containers of water but is not recommended for use in swimming pools or to pump fuel oil.

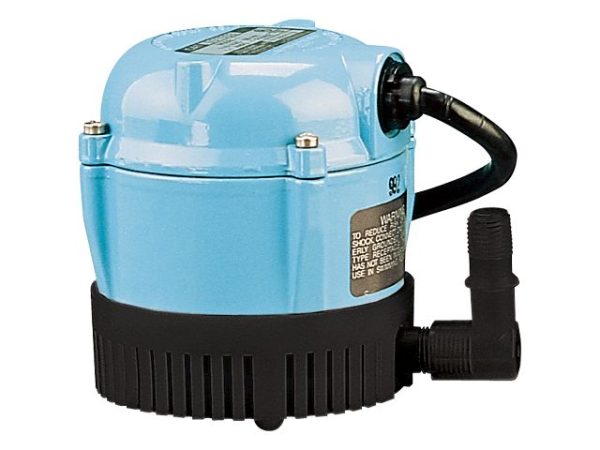

Designed for continuous duty, Little Giant’s 1-A is a oil-filled small submersible pump with epoxy coated cast aluminum housing. This compact 170 GPH pump features a 1/4-” MNPT discharge, 7′ shut-off head capability, and screened intake. This small submersible pump comes with a nitrile shaft seal, polypropylene volute and elbow, and a 6′ power cord. Also includes a screened bottom intake to prevent debris from entering the pump.
| Capacity | 170 gph @ 1′ |
| Shut Off | 7′ (2.1 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 1/4″ MNPT (6 mm) |
| Impeller | Polypropylene |
| Electrical | 115 V, 60 Hz, 1.1 A |
| Head | GPH (LPH) |
| 1′ | 170 (643.5) |
| 3′ | 140 (530) |
| 5′ | 100 (378.5) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft | Cord Length |
|---|---|---|---|---|---|---|
| 500203 | 1-A | 115 VAC | 2.83 gpm / 170 gph | 7 ft | 6 ft | |
| 500286 | 1-AT | 115 VAC | 2.83 gpm / 170 gph | 7 ft | 10 ft | |
| 500500 | 1-AA-18 | 115 VAC | 2.83 gpm / 170 gph | 7 ft | 18 ft |
