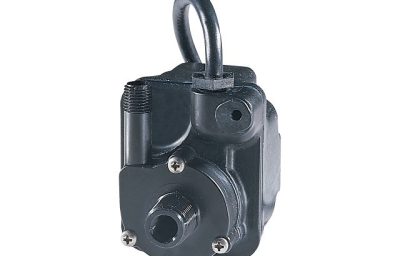

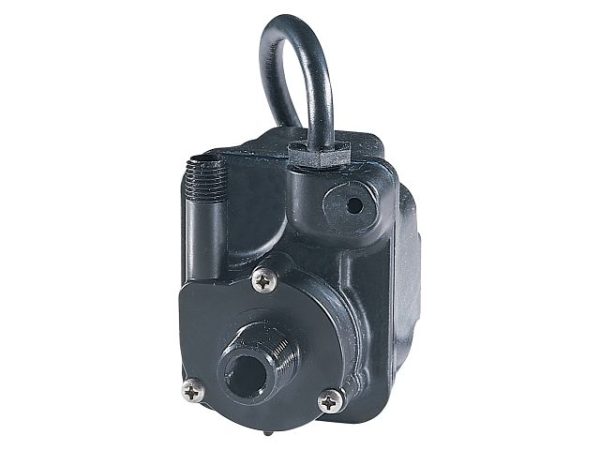

Little Giant’s 1-EA small epoxy encapsulated submersible pump is extremely versatile and can be used for many purposes around the home, in workshops, or in the commercial or industrial field. This small epoxy encapsulated submersible pump can be used in-line or as a submersible. Applications include statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated.
This small epoxy encapsulated submersible pump can be used submersed or in-line. Its outer case is constructed of die-cast aluminum and polyester, and the inside case is filled with a heat-transfer epoxy. Capabilities include a 7′ maximum lift and 170 gph at 1′ maximum flow rate. This small submersible pump comes equipped with thermal overload protection for extended usage.
| Capacity | 170 gph @ 1′ |
| Shut Off | 7′ (2.1 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 1/4″ MNPT (6 mm) |
| Impeller | Nylon |
| Electrical | 115 V, 60 Hz, 0.6 A |
| Head | GPH (LPH) |
| 1′ | 170 (643.5) |
| 3′ | 140 (530) |
| 5′ | 100 (378.5) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft | Cord Length |
|---|---|---|---|---|---|---|
| 518087 | 1-EA-42 | 115 VAC | 2.83 gpm / 170 gph | 7 ft | 10 ft |
