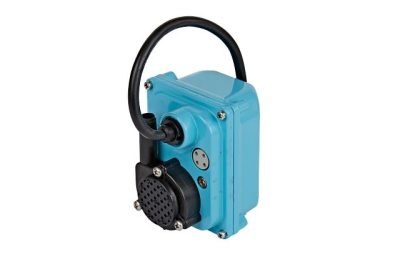

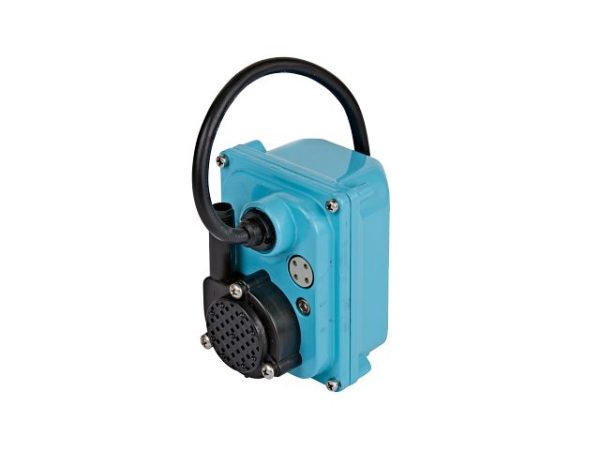

Little Giant’s 1-MA small oil-filled submersible pump is intended to be used completely submerged. It is ideal for commercial, industrial, and home applications, including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated. This pump is intended for pumping water only and can be used to empty aquariums or other containers of water but is not recommended for use in swimming pools or to pump fuel oil.
Easy-to-install and use, the 1-MA is a compact small submersible pump powered by a 1/200 horsepower impedance-protected, direct-drive motor. This pump is constructed with epoxy-coated cast aluminum housing for added durability. This small submersible pump is fitted with a screened side inlet to lessen the possibility of picking up any settled debris.
| Capacity | 170 gph @ 1′ |
| Shut Off | 7′ (2.1 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 1/4″ MNPT (6 mm) |
| Impeller | Polypropylene |
| Electrical | 115 V, 60 Hz, 1.1 A |
| Head | GPH (LPH) |
| 1′ | 170 (643.5) |
| 3′ | 140 (530) |
| 5′ | 100 (378.5) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft | Cord Length |
|---|---|---|---|---|---|---|
| 521203 | 1-MA | 115 VAC | 2.83 gpm / 170 gph | 7 ft | 6 ft | |
| 521500 | 1-MA | 127 VAC | 2.83 gpm / 170 gph | 7 ft | 6 ft | |
| 521204 | 1-MA | 115 VAC | 2.83 gpm / 170 gph | 7 ft | 6 ft |
