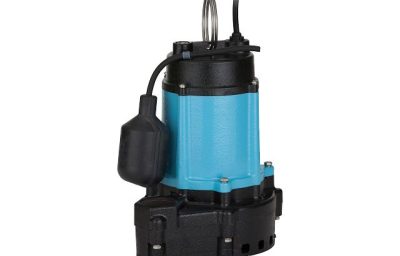

When you need the best of both worlds, the 10EC Series of hybrids has the leverage to handle the most demanding sump and light effluent applications. Pumping to a leach field or drainage where a gravity feed is not possible can be tricky when transferring water. The 10EC Series is a great solution for applications relating to light septic or high flow sump.
Constructed of epoxy-coated, heavy-duty cast iron and designed for continuous duty, the 10EC Series is a consistent performer for commercial sump and light effluent applications. Available with multiple switch options to fit according to basin size and depth or pump, the 10EC Series is the first line of defense against water damage in homes and businesses.
| Capacity | 67 gpm @ 5′ |
| Shut Off | 36′ (11 m) |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Discharge | 1-1/2″ (38.1 mm) |
| Impeller | Nylon |
| Electrical | 115 V, 60 Hz, 6.5 A |
| Operation | Automatic or Manual |
| Head | GPM (LPM) |
| 5′ | 67 (253.6) |
| 10′ | 57 (215.8) |
| 15′ | 53 (200.6) |
| 20′ | 47 (177.9) |
| 30′ | 28 (106) |
| Item | Model | Volts | Switch Type | Cord Length | Discharge |
|---|---|---|---|---|---|

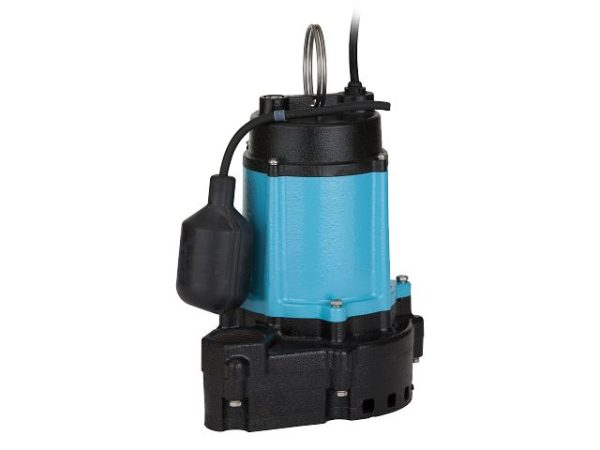

| 510852 | 10EC-CIA-RF | 115 VAC | Piggyback Mechanical Float | 20 ft | 1.5 “ |
