The 2-MD Series is a 1/30 hp magnetic drive pump that circulates mildly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other mildly corrosive chemicals and solutions that are compatible with the pump’s material of construction. Its thermally protected motor ensures safe and efficient operation.

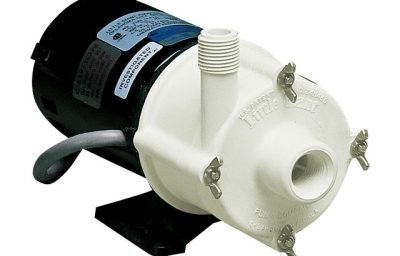

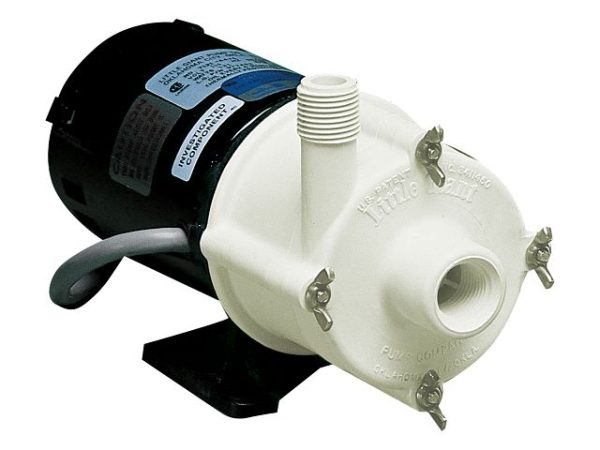

The Little Giant 2-MD Series Magnetic Drive Pumps feature leakproof, seal-less magnetic drives and are designed for in-line, non-submersible use. Volute and magnet housing are glass-filled polypropylene for excellent chemical resistance. The impeller is glass-filled polypropylene and ceramagnet “A” (barium ferrite). Shaft and thrust washers are titanium for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned, or serviced with no special tools required. The spindle shaft is supported at both ends to prevent impeller damage during the start and stop of the pump.
| Capacity | 8.5 gpm @ 1′ |
| Shut Off | 14.6′ (4.5 m) |
| Max. Liquid Temp. | 150 °F (66 °C) |
| Discharge | 1/2″ MNPT (12.7 mm) |
| Impeller | Glass-filled polypropylene & Ceramagnet “A” (Barium Ferrite) |
| Electrical | 115 V, 60 Hz, 1.5 A 230 V, 50/60 Hz, 0.65/0.64 A |
| Head | GPM (LPM) |
| 1′ | 8.5 (32.2) |
| 3′ | 7.8 (29.5) |
| 6′ | 6.8 (25.7) |
| 9′ | 5.5 (20.8) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 580012 | 2-MD | 230 VAC | 8.5 gpm / 510 gph | 14.6 ft | |
| 580002 | 2-MD | 115 VAC | 8.5 gpm / 510 gph | 14.6 ft |
| Item | Model | Description |
|---|---|---|
| 580098 | 2-MD | 2-MD Pump Head Less Motor |
