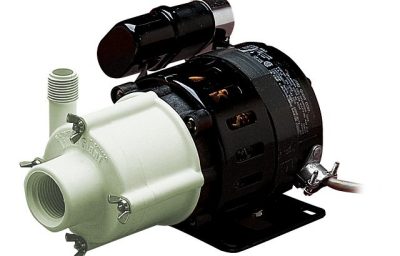

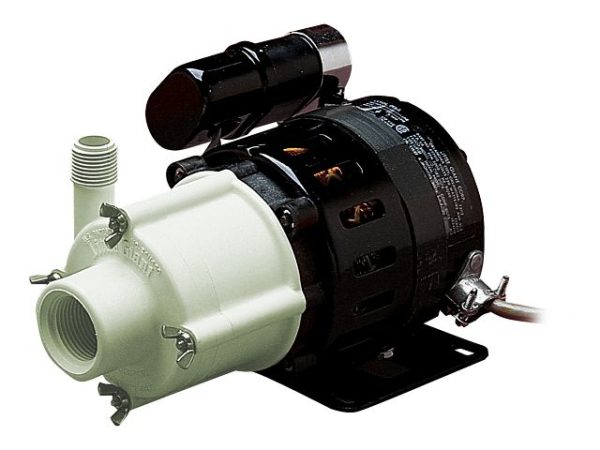

Little Giant’s 5-MD-SC chemical pump is used for commercial, industrial, or residential applications to recirculate mildly corrosive fluids, including acids, alkalis, plating, brine, or salt solutions. It flaunts a thermally protected, open, fan-cooled, permanent split capacitor motor and delivers consistency for intermittent usage.
When it comes to handling mildly corrosive solvents and solutions, you can depend on Little Giant. The 5-MD-SC Series is engineered to reliably recirculate semi-corrosive solutions and harsh fluids. Its housing, volute, and impeller are derived from glass-filled polypropylene which is known to provide maximum corrosion resistance.
| Capacity | 1050 gph @ 1′ |
| Shut Off | 27.5′ (8.4 m) |
| Max. Liquid Temp. | 150 °F (66 °C) |
| Discharge | 1/2″ MNPT (12.7 mm) |
| Impeller | Glass-filled polypropylene |
| Electrical | 115 V, 50/60 Hz, 2 A 230 V, 50/60 Hz, 1/1.1 A |
| Head | GPH (LPH) |
| 1′ | 1050 (3974.7) |
| 3′ | 990 (3447.6) |
| 6′ | 920 (3482.6) |
| 9′ | 840 (3179.7) |
| 15′ | 655 (2479.4) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 583503 | 5-MD | 115 VAC | 17.5 gpm / 1050 gph | 27.5 ft | |
| 583513 | 5-MD-SC | 230 VAC | 17.5 gpm / 1050 gph | 27.5 ft |
