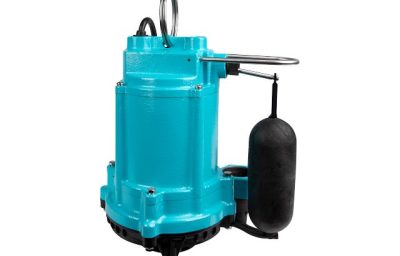

6EC Series Sump & Light Effluent Pump

Continuous duty rated for sump & light effluent applications, the submersible 6EC Series sump and light effluent pump is for use in basins or lift stations and are suitable for pumping clear water or effluent gray water with up to 1/2″ spherical semi-solids.

Features & Benefits

1/3 horsepower PSC motor
Heavy-duty cast iron construction
1-1/2″ FNPT discharge (38mm)
Multiple automatic switch options
140 °F (60 °C) liquid temperature rating
Ideal for basement sump and light effluent applications

Overview

Little Giant 6EC Series sump and light effluent pump features 1/3 horsepower Permanent Split Capacitor (PSC) motors providing lower current draw, energy efficiency, improved performance, and cooler-running for durability. The 6EC Series sump and light effluent pump offers multiple switch options for automatic operation. Built on the industry’s best 6E platform, the 6EC Series consumes only 5.0 amps while producing 53 gpm @ 5′ of head and reaching a maximum shut-off of 28′. Available with either 10′ or 20′ power cords.

Click to rate this post!

[Total: 0 Average: 0]

Specifications

Capacity	53 gpm @ 5′
Shut Off	28′ (8.5 m)
Max. Liquid Temp.	140 °F (60 °C)
Discharge	1-1/2″ (38.1 mm)
Impeller	Nylon
Electrical	115 V, 60 Hz, 5 A
Operation	Automatic or Manual

Performance

Head	GPM (LPM)
5′	53 (200.6)
10′	50 (189.3)
15′	42 (159)
20′	34 (128.7)
