The Little Giant CS-SS Crawl Space Sump Pump System is designed for use in residential low-lying areas such as crawl spaces or homes with shallow sump pits. Removing moisture from these areas aids in the prevention of mold and fungus, as well as moisture damage to floors, insulation, and metal ductwork. Moisture removal also helps minimize potential structural damage caused by freezing water. The CS-SS sump pump system can also be used to help prevent water from standing in low-lying problem areas such as a yard, patio, driveway, and more.
Remove unwanted water in and around your home with the CS-SS Series sump pump system. Harnessed with a strong, energy-efficient 1/3 horsepower motor and integral snap-action float, the CS-SS sump pump system clears water accumulation at 50 gpm at 5′ height and is equipped with a 20′ power cord. This system can also help reduce problems associated with rodents, insects and pests attracted to wet environments.
| Vent | 2″ (51 mm) or 3″ (76.2 mm) |
| Discharge | 1-1/4″ x 24′ (31.7 mm x 7.3 m) discharge hose kit |
| Switch Type | Integral snap-action float |
| Basin Size | 18″ x 22″ (46 cm x 56 cm) |
| Basin Material | Polypropylene |
| Cover Material | Structural foam |
| Pump | 6EC-CIA-SFS |
| Head | GPM (LPM) |
| 5′ | 50 (189.3) |
| 10′ | 42 (159) |
| 15′ | 30 (113.6) |
| Item | Model | Description |
|---|---|---|

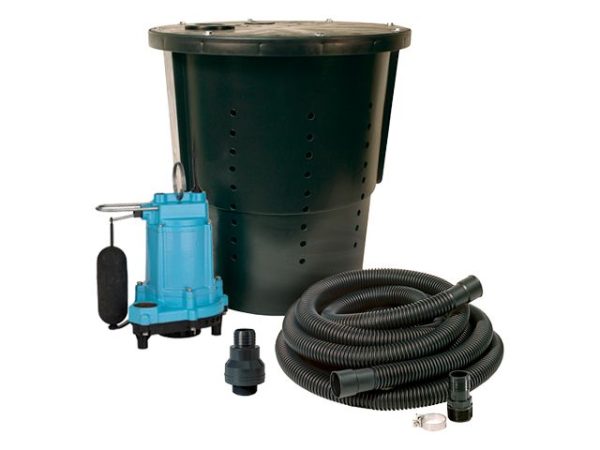

| 14940655 | CS-SS | CS-SS Series Crawl Space Sump Package, 1/3 HP Sump/Effluent Pump, 18″ x 22″ perforated poly basin, 1-1/4″ x 24′ discharge hose kit, 1-1/2″ MNPT barbed check valve |
