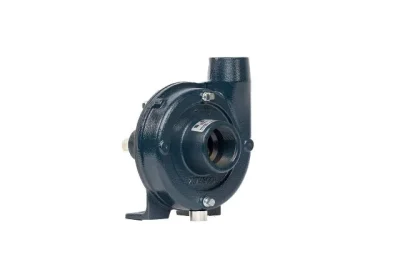

Franklin Electric FACT Series Frame Mount Centrifugal Pump
The Franklin Electric FACT Series Frame Mount Centrifugal Pump is a heavy-duty, service-friendly pump built for applications that demand flexible drive options, reliable performance, and easy field maintenance. With cast iron construction throughout, a rotatable volute for installation convenience, and support for both belt drive and direct drive configurations, the FACT Series handles water circulation, pressure boosting, liquid transfer, agricultural spraying, and general service pumping across a wide range of commercial and industrial installations. Ken’s Distributing Company stocks the FACT Series and can help you select the right model and configuration for your specific job.
What Is the Franklin Electric FACT Series Frame Mount Pump?
The FACT Series is Franklin Electric’s frame mount centrifugal pump designed for installations where the pump and motor need to be separate units on a common base. Unlike a close-coupled pump where the motor bolts directly to the pump, a frame mount configuration allows you to choose your own drive source. The FACT Series supports belt drive, direct drive, SAE engine drive, and PTO applications, giving you the flexibility to power the pump from whatever drive source makes sense for your installation.
The name FACT refers to Franklin Electric’s frame mount centrifugal pump in the close-coupled style with threaded connections, designed for general service and pressure boosting applications. It fills a specific role in the Franklin Electric lineup as the go-to frame mount pump for booster service, water circulation systems, and jockey pump installations where a compact, mechanically straightforward pump is needed.
Kendisco is an authorized Franklin Electric distributor. When you order the FACT Series through Ken’s Distributing Company, you receive a genuine Franklin Electric product with full manufacturer support and access to genuine replacement parts when service is needed.
Technical Specifications
Volute Material: Cast Iron
Impeller: Enclosed 2×2 Cast Iron
Seal: Carbon/Ceramic faces, Nitrile elastomers, 300 Series Stainless Steel
Drive Compatibility: Belt drive and direct drive
Mounting Options: Vertical or horizontal
Connection Type: Threaded FNPT suction and discharge
Order Information
FACT Series Frame Mount Centrifugal Pump Model
| Item | Model | Seal | Suction | Discharge | Rotation |
|---|---|---|---|---|---|
| 90252008 | FACT-8 | Mechanical Seal | Threaded – FNPT | Threaded – FNPT |
How the FACT Frame Mount Configuration Works
A frame mount pump is fundamentally different from a close-coupled pump in how it connects to its power source. In a close-coupled design, the motor bolts directly to the pump and the pump impeller mounts on the motor shaft. In a frame mount design like the FACT Series, the pump has its own bearing frame and shaft. The motor or engine connects to the pump through a coupling, belt drive, or SAE adapter.
This separation of pump and drive source is what makes the FACT Series so versatile. You can run it from an electric motor, a gas engine with an SAE bell housing adapter, a PTO shaft, or a belt and pulley system. If the motor fails, you replace the motor without touching the pump. If the pump needs seal service, you pull the pump end without disturbing the motor or drive components. That kind of independent serviceability is a real advantage on installations that need to stay running with minimal downtime.

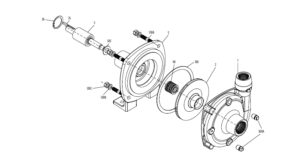

Construction Details
Volute
The FACT Series volute is cast iron construction with a rotatable design that lets you reposition the volute during installation. This means you can orient the suction and discharge ports in the direction that best fits your piping layout without adding elbows or offset fittings. Tapped openings for venting and draining are included in the volute body, making startup priming and seasonal draining straightforward without disconnecting piping.
Impeller
The enclosed 2×2 cast iron impeller is designed for high hydraulic efficiency in general water service applications. The enclosed impeller design, where both the front and back shrouds are present, produces better efficiency than semi-open designs and handles clean to slightly dirty water reliably. The 2×2 designation refers to the 2-inch suction and 2-inch discharge port sizing.
Mechanical Seal
The standard mechanical seal uses carbon and ceramic sealing faces combined with Nitrile elastomers and 300 Series stainless steel hardware. This combination provides solid corrosion resistance and long seal life in standard water service applications. The mechanical seal requires no field adjustment unlike packed box alternatives, making it a good fit for installations where regular maintenance access is limited.
Bearing Frame
The bearing frame supports both belt drive and direct drive configurations. It provides the structural support and shaft bearing arrangement needed to handle the side loads that belt drive setups introduce. The bearing frame is what separates the FACT Series from a close-coupled pump and allows it to be driven by multiple power sources.
Applications and Industries
The FACT Series frame mount pump is used in a focused set of applications where its combination of flexible drive options and cast iron reliability provides a clear advantage over close-coupled alternatives.
- Water Circulation Systems: HVAC systems, cooling loops, and process water circulation in commercial and industrial facilities use the FACT Series where a frame mount configuration fits the mechanical room layout better than a close-coupled pump.
- Booster Service: Pressure boosting in water distribution systems, irrigation mains, and commercial building water supply is a primary application for the FACT Series. The high-efficiency impeller maintains consistent pressure across the system.
- Liquid Transfer Operations: Moving water or compatible liquids between tanks, sumps, and process vessels in light industrial and commercial facilities.
- Agricultural Spraying Systems: The frame mount design allows the FACT to be powered by a tractor PTO or engine drive in field applications where electrical power is not available. This makes it practical for pesticide application systems, fertilizer injection, and crop irrigation supply.
- Jockey Pump Installations: Fire suppression systems use jockey pumps to maintain system pressure between fire events. The FACT Series compact footprint and reliable mechanical seal make it well suited for this low-flow, high-pressure maintenance role.
- General Service Water Pumping: Any general commercial or industrial water pumping application that benefits from flexible drive options and cast iron durability is a natural fit for the FACT Series.
Features and Benefits
- Rotatable Cast Iron Volute: Reposition the suction and discharge ports during installation without cutting and re-threading pipe. The rotation flexibility reduces the number of fittings needed and simplifies installation in confined spaces.
- Venting and Draining Ports: Tapped openings on the volute body allow you to vent air during priming and drain the pump completely during winterizing or servicing without disconnecting piping.
- Enclosed 2×2 Cast Iron Impeller: High efficiency enclosed impeller design delivers strong hydraulic performance in general water service. Cast iron construction provides durability in continuous-duty applications.
- Carbon/Ceramic Mechanical Seal: No-adjustment mechanical seal with carbon and ceramic faces provides long-lasting leak prevention in standard water service. Nitrile elastomers handle the temperature and chemical range typical of water circulation and transfer applications.
- Belt and Direct Drive Compatibility: The bearing frame accommodates both belt drive and direct-coupled motor configurations without modification. Choose the drive type that fits your power source and installation layout.
- Vertical or Horizontal Mounting: Install the FACT Series in either orientation to fit your space and equipment constraints. No separate pump models needed for different mounting directions.
- Threaded FNPT Connections: Standard threaded connections on suction and discharge ports are compatible with common pipe fittings used across commercial and industrial plumbing systems.
- Service-Friendly Design: The frame mount bearing frame allows the pump end to be serviced independently of the drive source. Seal and impeller service does not require disturbing the motor, belt drive, or mounting base.
FACT Series vs. FAOT Series: Understanding the Difference
Franklin Electric offers both the FACT and FAOT Series as frame mount centrifugal pumps. They serve overlapping but distinct applications. Here is a clear comparison:
| Feature | FACT Series | FAOT Series |
|---|---|---|
| Primary Application | Booster service, circulation, jockey pump | Open drive industrial and agricultural transfer |
| Connection Type | Threaded FNPT | Threaded or flanged options |
| Impeller | Enclosed 2×2 cast iron | Cast iron enclosed |
| Drive Options | Belt drive and direct drive | Open drip proof motor drive |
| Best For | Commercial, HVAC, fire suppression support | Agricultural and general industrial use |
If your application is pressure boosting, water circulation, or jockey pump service in a commercial or HVAC setting, the FACT Series is the right fit. If you need an open drive configuration for agricultural or general industrial use, look at the FAOT Series. The team at Ken’s Distributing Company is available at 303.699.7845 to help you decide between the two.
Installation and Compatibility
- Drive Configuration: Confirm your drive type before installation. Belt drive setups require proper pulley sizing and belt tension. Direct drive setups require precise coupling alignment to prevent premature bearing wear.
- Volute Positioning: Rotate the volute to align suction and discharge ports with your piping before final mounting. Secure all volute fasteners to the specified torque after positioning.
- Priming: Use the tapped venting port to bleed air from the pump housing before startup. The FACT Series is not self-priming and requires the pump housing to be filled with water before the first start.
- Mounting Orientation: Install in either vertical or horizontal orientation based on your space constraints. Use vibration isolation pads under the base frame to reduce noise and vibration transmission to the mounting surface.
- Suction Line: Keep the suction line as short and direct as possible. Install a foot valve at the water source if the pump is drawing from a level below the pump. Minimize suction line bends to reduce friction loss and avoid cavitation.
- Discharge Line: Match discharge pipe diameter to the 2-inch FNPT discharge port. Install a check valve on the discharge side to prevent back-flow when the pump shuts down.
- Mechanical Seal: Do not run the pump dry. The mechanical seal requires liquid for lubrication and cooling. Running dry even briefly can damage the seal faces and cause immediate leaking.
Replacement Parts and Service
The FACT Series frame mount design separates the pump end from the drive end, which makes seal service, impeller replacement, and bearing work accessible without a full pump teardown. Franklin Electric engineers the FACT Series with standard component sizing so parts are straightforward to source.
Ken’s Distributing Company carries genuine Franklin Electric replacement parts for the FACT Series. When your mechanical seal needs replacement or the impeller shows wear, call us at 303.699.7845 and we will identify the correct part by model number and get it shipped to you fast.
Browse our Franklin Electric replacement parts and repair kits for the FACT Series and all other Franklin Electric pump lines.
Frequently Asked Questions
What does FACT stand for in Franklin Electric pump naming?
FACT refers to Franklin Electric’s frame mount centrifugal pump series with threaded connections, designed for general service, booster, and circulation applications. It is part of the broader Franklin Electric frame mount centrifugal pump family alongside the FAOT Series.
What drive types are compatible with the FACT Series?
The FACT Series bearing frame supports belt drive and direct-coupled electric motor drive configurations. It can also be adapted for SAE engine drive and PTO shaft applications with appropriate coupling hardware. This flexibility makes it practical in both fixed electric installations and mobile or engine-driven setups.
Can the FACT Series be mounted vertically?
Yes. The FACT Series supports both vertical and horizontal mounting orientations. The rotatable volute also lets you reposition the suction and discharge ports to suit your installation layout in either orientation.
Is the FACT Series self-priming?
No. The FACT Series is a standard centrifugal pump and requires the pump housing to be filled with water before startup. It is not self-priming. For self-priming frame mount applications, look at the FMIT Series or FBSTF Series frame mount self-priming pumps available at Kendisco.
What is the difference between the FACT and FAOT Series pumps?
The FACT Series is designed primarily for booster service, water circulation, and jockey pump applications with threaded FNPT connections. The FAOT Series is designed for open drive agricultural and industrial water transfer applications. Both are frame mount centrifugal pumps but they serve different primary use cases.
What type of seal does the FACT Series use?
The FACT Series comes standard with a mechanical seal using carbon and ceramic faces, Nitrile elastomers, and 300 Series stainless steel hardware. This seal requires no field adjustment and provides reliable leak prevention in standard water service applications.
Can I get FACT Series replacement parts from Kendisco?
Yes. Ken’s Distributing Company stocks genuine Franklin Electric replacement parts for the FACT Series including mechanical seals, impellers, and bearing components. Call 303.699.7845 for parts availability and fast shipping on all Franklin Electric components.
