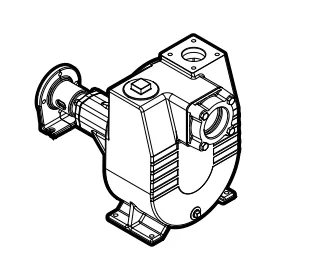

Franklin Electric Centrifugal Self Priming Hydraulic Driven FMIH Water Pump
Franklin Electric Centrifugal Self Priming Hydraulic Driven FMIH for Agricultural, Municipal and Industrial Water Transfer
Franklin Electric Centrifugal Self Priming Hydraulic Driven FMIH is a high-capacity hydraulic-powered self-priming centrifugal pump built for demanding agricultural, municipal, construction, and industrial water transfer applications. Available through Ken’s Distributing Company at Kendisco, the FMIH handles flow rates up to 760 GPM and heads up to 145 feet, with a maximum working pressure of 120 PSI, making it one of the most capable hydraulic driven self-priming pumps in the Franklin Electric surface pump lineup.
The rugged cast iron volute features tapped openings for priming, venting, and draining, keeping installation and maintenance straightforward in the field. The semi-open, non-clogging cast iron impeller is designed primarily for water transfer but is also capable of handling mud, sand, and silt up to 10 percent by volume, which makes the FMIH a practical choice for construction dewatering, agricultural field work, and water truck applications where the liquid being pumped is not always clean.
The hydraulic drive bearing frame uses heavy sealed bearings and a keyed stainless steel shaft, with a B-Fit 7/8 inch hydraulic spline shaft for connection to a tractor or equipment hydraulic system. A replaceable wear plate is included to help maintain maximum pump efficiency over time without requiring a full pump end replacement. Ken’s Distributing Company at Kendisco stocks the FMIH-40 model along with genuine Franklin Electric repair parts for all major components.
Key Features of the Franklin Electric FMIH Hydraulic Driven Self-Priming Pump
- Rugged cast iron volute with tapped openings for priming, venting, and draining
- Semi-open cast iron non-clogging impeller capable of handling mud, sand, and silt up to 10 percent by volume
- Standard carbon and ceramic seal faces with FKM elastomers and 300-series stainless steel components
- Heavy-duty bearing frame with sealed bearings and keyed stainless steel shaft for hydraulic drive
- B-Fit 7/8 inch hydraulic spline shaft for connection to tractor or equipment hydraulic system
- Replaceable wear plate to maintain pump efficiency over the life of the unit
- Horizontal mounting orientation
- Flow rates up to 760 GPM and heads up to 145 feet
- Maximum working pressure of 120 PSI
- Handles liquid temperatures up to 212 degrees F
- 4 inch NPT suction and 4 inch NPT discharge connections
- Clockwise rotation viewed from the motor end
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Flow Rate | 760 GPM |
| Maximum Head | 145 feet |
| Maximum Working Pressure | 120 PSI |
| Maximum Liquid Temperature | 212 degrees F |
| Suction Connection | 4 inch NPT |
| Discharge Connection | 4 inch NPT |
| Rotation | Clockwise viewed from motor end |
| Impeller Type | Semi-open cast iron, non-clogging |
| Solids Handling | Mud, sand, and silt up to 10% by volume |
| Volute Material | Cast iron, ASTM-A48 CL30 |
| Seal Type | Carbon/ceramic, FKM elastomers, 316 stainless steel |
| Drive Type | Hydraulic drive, B-Fit 7/8 inch spline shaft |
| Mounting | Horizontal |
| Model | FMIH-40 |
| Order No. | 90295004 |
| Weight | 282 lbs |
Applications
- Agricultural irrigation and field water transfer
- Construction site dewatering
- Mining water transfer
- Commercial and municipal water supply
- Light industrial liquid handling
- Water truck operations
- Remote field applications without electrical power access
| Discharge | Suction |
|---|---|
| 4″ | 4″ |

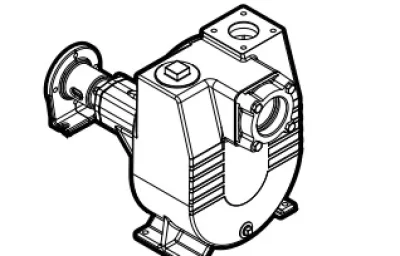

Franklin Electric Centrifugal Self Priming Hydraulic Driven FMIH

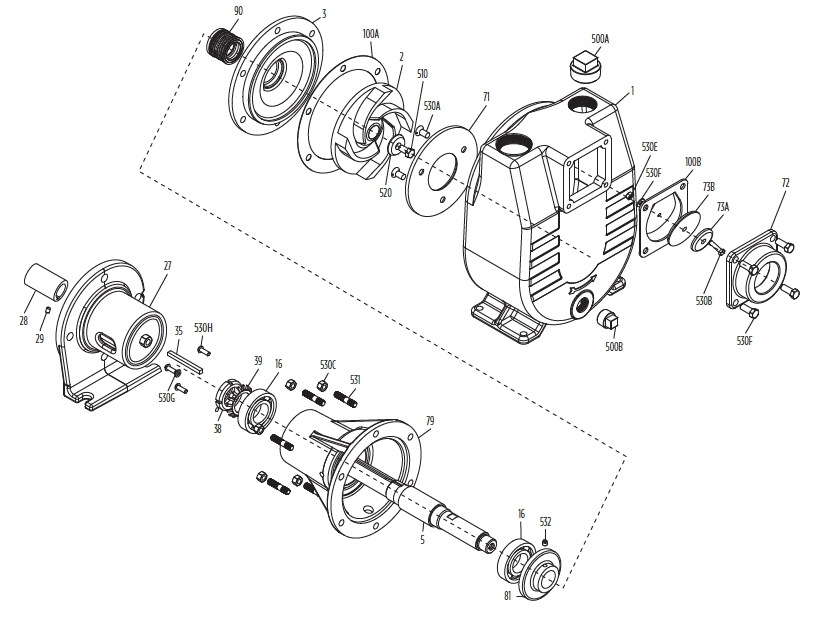

Franklin Electric FMIH EXPLODED PARTS
Franklin Electric FMIH REPAIR PARTS
| Fig No. | Part Description | FMIH-40 | Materials of Construction |
|---|---|---|---|
| 1 | FMIH Pump Case | 305455003 | Cast iron, ASTM-A48 CL30 |
| 2 | FMIH Impeller | 305455006 | Cast iron, ASTM-A48 CL30 |
| 3 | FMIH Seal Plate | 305454009 | Cast iron, ASTM-A48 CL30 |
| 5 | FMIH Shaft | 305454015 | 7M-212SST |
| 16 | FMIH Ball Bearing (2 req.)* | 305463036 | Misc. |
| 27 | FMIH Hydraulic Adapter | 305455017 | Cast iron, ASTM-A48 CL30 |
| 28 | FMIH Coupling | 305455016 | C1045 carbon steel |
| 29 | FMIH Set Screw (2 pack) | 305463198 | Zinc-plated steel |
| 35 | FMIH Shaft Key | 305454017 | 1018 CRS |
| 38 | FMIH Bearing Nut | 305463039 | 300 Series stainless steel |
| 39 | FMIH Bearing Lock Washer | 305463042 | Zinc-plated steel |
| 71 | FMIH Wear Plate | 305455009 | Cast iron, ASTM-A48 CL30 |
| 72 | FMIH Check Valve | 305454020 | Cast iron, ASTM-A48 CL30 |
| 73A | FMIH Top Weight, Check Valve | 305454023 | Cast iron, ASTM-A48 CL30 |
| 73B | FMIH Bottom Weight, Check Valve | 305454025 | Cast iron, ASTM-A48 CL30 |
| 79 | FMIH Transmission Head | 305454033 | Cast iron, ASTM-A48 CL30 |
| 81 | FMIH Seal Cover | 305454039 | Cast iron, ASTM-A48 CL30 |
| 90 | FMIH Mechanical Shaft Seal | 305463044 | Carbon/ceramic/FKM/316 stainless steel |
| 100A | FMIH Case Gasket | 305454042 | NA60 |
| 100B | FMIH Flapper Valve | 305454045 | Neoprene |
| 500A | FMIH Pipe Plug, 3″ | 305463197 | CAD-plated steel |
| 500B | FMIH Pipe Plug, 3/4″ (3 pack) | 305463050 | CAD-plated steel |
| Not Shown | FMIH Pipe Plug, 4″ | 305463076 | CAD-plated steel |
| 510 | FMIH Hex Bolt, Impeller | 305463078 | 300 Series stainless steel |
| 520 | FMIH Washer, Impeller | 305455015 | 1018 CRS |
| 530A | FMIH Wear Plate Bolts (6 pack) | 305463079 | Zinc-plated steel |
| 530B | FMIH Flapper Bolt | 305463081 | 300 Series stainless steel |
| 530C | FMIH Hex Nuts (6 pack) | 305463059 | Zinc-plated steel |
| 530E | FMIH Nut, Flapper | 305463083 | Zinc-plated steel |
| 530F | FMIH Hex Cap Screw, Valve (4 pack) | 305463086 | Zinc-plated steel |
| 530G | FMIH Washer, Bearing Cover (6 pack) | 305463067 | Zinc-plated steel |
| 530H | FMIH Bolt, Bearing Cover (4 pack) | 305463069 | Zinc-plated steel |
| 531 | FMIH Threaded Stud, Transmission (6 pack) | 305463199 | Zinc-plated steel |
| 532 | FMIH Set Screw (2 pack) | 305463075 | Zinc-plated steel |
| 532 | FMIH Set Screw | 305463075 | Zinc-plated steel |
* Kit contains only one ball bearing
Franklin Electric FMIH ORDER INFORMATION
| Pump Size (Dis. x Suc.) | Model Description | Order No. | Wt. (lbs) |
|---|---|---|---|
| 4 x 4 | FMIH-40 | 90295004 | 282 |

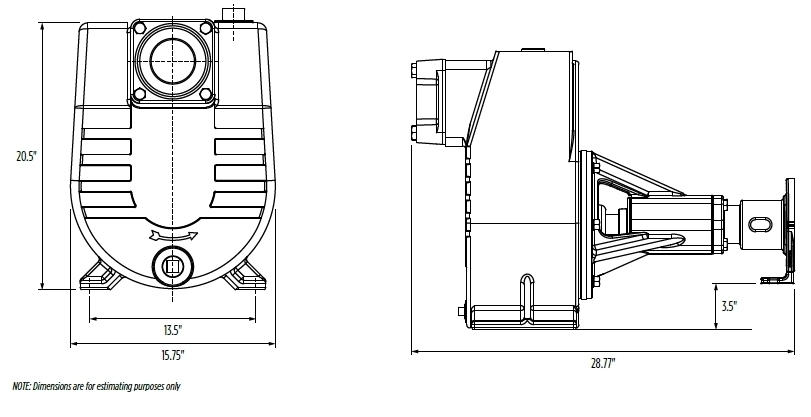

Franklin Electric FMIH DIMENSIONS
Franklin Electric FMIH PERFORMANCE curve
Frequently Asked Questions
What is the Franklin Electric Centrifugal Self Priming Hydraulic Driven FMIH used for?
The Franklin Electric Centrifugal Self Priming Hydraulic Driven FMIH is designed for high-volume water transfer in agricultural irrigation, construction dewatering, mining, municipal water supply, and water truck operations. Its hydraulic drive design makes it ideal for remote field applications where electrical power is not available, connecting directly to a tractor or equipment hydraulic system through a B-Fit 7/8 inch spline shaft.
What does hydraulic driven mean on the FMIH pump?
Hydraulic driven means the FMIH pump is powered by the hydraulic system of a tractor or other equipment rather than by a separate electric motor or gas engine. The pump connects to the equipment hydraulic output through a B-Fit 7/8 inch spline shaft, allowing it to operate in remote agricultural fields, construction sites, and other locations where running electrical power or a gas engine is not practical or possible.
What types of liquids can the FMIH handle?
The FMIH semi-open, non-clogging impeller is designed primarily for water transfer but is also capable of handling mud, sand, and silt up to 10 percent by volume. This makes the FMIH suitable for construction site dewatering, agricultural field applications where the water source contains sediment, and water truck operations where the water being pumped may not always be clean.
What is the maximum flow rate and pressure for the FMIH?
The Franklin Electric FMIH delivers flow rates up to 760 GPM and heads up to 145 feet, with a maximum working pressure of 120 PSI. The 4 inch suction and 4 inch discharge connections support the high flow rates required in agricultural, municipal, and industrial applications. This performance range puts the FMIH well above the capacity of the close-coupled FBSE and FBSEF self-priming series.
What is the replaceable wear plate on the FMIH and why does it matter?
The replaceable wear plate sits between the impeller and the pump case and maintains the tight clearance needed for maximum pump efficiency. Over time, this clearance can widen as the components wear, reducing flow and efficiency. Rather than replacing the entire pump end, you can replace just the wear plate to restore the original performance specifications. Genuine FMIH wear plates are available through Kendisco and Ken’s Distributing Company under part number 305455009.
How does the FMIH compare to the FBSGF gas engine self-priming pump?
Both the FMIH and the FBSGF are self-priming centrifugal pumps designed for portable agricultural and field applications without electrical power. The key difference is the power source. The FMIH is driven by a tractor hydraulic system and offers significantly higher flow capacity at up to 760 GPM through a 4 inch connection. The FBSGF is powered by an onboard gas engine and is available in smaller configurations for applications where a tractor is not available or practical. If you have a tractor with hydraulic output available on site, the FMIH is typically the higher-performing choice.
Where can I find replacement parts for the FMIH at Kendisco?
Ken’s Distributing Company at Kendisco carries genuine Franklin Electric replacement parts for the FMIH-40, including the pump case, impeller, seal plate, mechanical shaft seal, wear plate, check valve, bearing assembly, coupling, transmission head, and all hardware. All parts are listed by figure number and part number for straightforward ordering. Contact Kendisco directly if you need help identifying the right part for your FMIH repair.
Why Buy the Franklin Electric FMIH from Kendisco
Ken’s Distributing Company is a trusted Franklin Electric distributor with deep knowledge of the full hydraulic driven pump lineup, including the FMIH-40. Through Kendisco, you get access to the complete FMIH product along with genuine OEM repair parts, wear plates, and bearing assemblies to keep the pump running at peak efficiency throughout its service life.
Whether you are selecting the FMIH for a new agricultural irrigation setup, replacing an aging hydraulic driven pump on a water truck operation, or sourcing a specific repair part by figure number, the team at Ken’s Distributing Company is ready to help. Order the Franklin Electric Centrifugal Self Priming Hydraulic Driven FMIH through Kendisco and get a pump that is built to perform in the most demanding field conditions.
