Franklin Electric FBSGF Gas Engine Self-Priming Pumps
FBSGF Pump Manuals & Resources

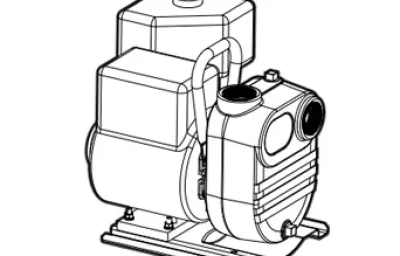

The Franklin Electric FBSGF gas engine self-priming pump is a portable centrifugal pump for irrigation, water transfer, construction, agricultural and commercial applications where an electric supply may be unavailable. The series combines a cast iron volute, a semi-open cast iron impeller with a blind-hole shaft-protection design, and gasoline-engine drive options from Briggs & Stratton and Honda.
Choose from 2-inch or 3-inch suction and discharge connections, depending on the model. Ken’s Distributing Company can help identify a suitable FBSGF model, confirm availability, and locate the correct repair components using the pump model and part number.
FBSGF Gas Engine Self-Priming Pump Features
- Self-priming design: Cast iron volute with openings for priming, venting and draining; the casing must be filled for initial startup.
- Impeller: Semi-open cast iron with a blind-hole design intended to limit pump-liquid contact with the engine shaft connection.
- Mechanical seal: Carbon/ceramic faces with FKM elastomers and 300-series stainless steel components in published series specifications.
- Engine options: Briggs & Stratton or Honda gasoline engines with adjustable throttle controls, varying by model.
- Installation: Horizontal mounting with threaded NPT suction and discharge ports.
- Applications: Water transfer, temporary irrigation, construction, mining, commercial and municipal service, and light industrial pumping, subject to the liquid and duty conditions.
Franklin Electric FBSGF Technical Specifications
| Specification | Published Series Information |
|---|---|
| Pump type | Gas engine-driven, self-priming centrifugal pump |
| Series capacity | Up to 298 GPM per Franklin Electric series specification; see model performance table and its note below |
| Series maximum head | Up to 112 feet |
| Maximum working pressure | 120 PSI |
| Maximum liquid temperature | 200°F (93°C) |
| Volute | Cast iron; priming, venting and drain openings |
| Impeller | Semi-open cast iron; blind-hole shaft protection |
| Mechanical seal | Carbon/ceramic faces, FKM elastomers, 300-series stainless steel components |
| Connections | 2 in. x 2 in. NPT or 3 in. x 3 in. NPT, depending on model |
| Rotation | Clockwise when viewed from engine side |
| Mounting orientation | Horizontal |
| Gasoline engines | Briggs & Stratton and Honda, depending on model |
The series limits above are not simultaneous flow, head and pressure operating points. Select a pump using the performance curve for the specific model, required flow, total dynamic head and suction conditions.
FBSGF Model and Ordering Information
Franklin Electric currently lists the following five gasoline-engine models in its online FBSGF series catalog. Item numbers link to Kendisco’s individual model listings.
| Item / Order No. | Model | Engine | Engine CC | Suction | Discharge | Weight (lb) | Low-Oil Shutoff |
|---|---|---|---|---|---|---|---|
| 90271008 | FBSGF-8 | Briggs & Stratton | 127 | 2 in. | 2 in. | 65 | No |
| 90271108 | FBSGF-8H | Honda | 118 | 2 in. | 2 in. | 65 | Yes |
| 90271010 | FBSGF-10 | Briggs & Stratton INTEK | 205 | 2 in. | 2 in. | 74 | No |
| 90271110 | FBSGF-10H | Honda | 160 | 2 in. | 2 in. | 74 | No |
| 90271112 | FBSGF-12H | Honda | 270 | 3 in. | 3 in. | 110 | Yes |
All five current-catalog models are listed as recoil start in Franklin’s published ordering information. Weight and low-oil shutoff values are model-specific. Confirm engine configuration and availability before ordering.
Older FBSGF and FBSDF Catalog References
The older Kendisco product page also includes the two models below. They are retained for identifying existing equipment and compatible replacement parts, but they do not appear in Franklin Electric’s currently displayed five-model FBSGF ordering list. Contact Ken’s Distributing to confirm whether a new unit or replacement part can still be ordered.
| Older Order No. | Model | Engine Reference | Engine CC | Suction x Discharge | Older Listed Weight |
|---|---|---|---|---|---|
| 90271012 | FBSGF-12 | Briggs & Stratton INTEK | 305 | 3 in. x 3 in. | 110 lb |
| 90273010 | FBSDF-10RF | Kohler diesel | 349 | 2 in. x 2 in. | 152 lb |
The earlier ordering sheet contains inconsistent engine/fuel-tank and low-oil-shutoff entries for some historical models. Check the actual engine plate and current manufacturer parts records before specifying or replacing these units.
How to Choose an FBSGF Pump
FBSGF-8 / FBSGF-8H: Smaller 2-inch gas-engine units with 127 cc Briggs & Stratton or 118 cc Honda engines. They suit applications whose required flow and head fall on the relevant performance curve.
FBSGF-10 / FBSGF-10H: 2-inch units with 205 cc Briggs & Stratton INTEK or 160 cc Honda engines. Use model-specific flow-at-head information rather than engine displacement alone to select the pump.
FBSGF-12H: The larger 270 cc Honda-powered configuration with 3-inch suction and 3-inch discharge connections, designed for higher-volume water transfer. Check hose sizing and required head before selection.
Typical Applications
- Temporary and agricultural irrigation: Water supply from tanks and approved open-water sources to temporary field or landscape irrigation systems.
- Construction water transfer: Portable pumping where on-site electrical power is unavailable.
- Commercial and municipal maintenance: Temporary water movement and support pumping under suitable operating conditions.
- Light industrial service: Transfer of compatible liquids within the pump’s pressure, temperature and material limits.
Although a semi-open impeller can be less susceptible to certain small particles than an enclosed design, the FBSGF is not assigned a guaranteed solids-size rating in the referenced series specification. Do not assume compatibility with abrasive slurry, chemicals or large debris without consulting the manufacturer.
FBSGF Performance: Flow Rate at Total Head
The following U.S. GPM values are from the published Franklin Electric FBSGF performance table. The original Kendisco page labels the largest-model row FBSGF-12; the current manufacturer catalog identifies the corresponding 270 cc Honda model as FBSGF-12H.
| Model | 30 ft | 40 ft | 50 ft | 60 ft | 70 ft | 80 ft | 90 ft | 100 ft |
|---|---|---|---|---|---|---|---|---|
| FBSGF-8 | 135 | 120 | 105 | 85 | 65 | 37 | — | — |
| FBSGF-10 | 170 | 165 | 155 | 140 | 118 | 95 | 65 | 30 |
| FBSGF-12H | 310 | 285 | 255 | 220 | 175 | 120 | 60 | — |
All table values are flow in US GPM at the total head shown. — indicates no published value at that operating point. Franklin’s series summary quotes capacity up to 298 GPM, while the published FBSGF-12H performance table states 310 GPM at 30 ft of head. Because those two manufacturer figures differ, use the latest model curve or ask for confirmation when sizing the pump.
FBSGF Replacement Parts and Exploded Diagram
The parts matrix below is preserved from the original Kendisco FBSGF reference, including the older FBSGF-12 and FBSDF-10RF columns. Its purpose is to help identify part numbers by model. Some equipment versions may have different parts; always confirm with model number, engine data and production details before purchasing.
FBSGF Materials and Repair Parts by Model
| Fig. No. | Part Description | Part No. | Materials of Construction | ||||||
|---|---|---|---|---|---|---|---|---|---|
| FBSGF-8 | FBSGF-8H | FBSGF-10 | FBSGF-10H | FBSDF-10RF | FBSGF-12 | FBSGF-12H | |||
| 1 | Pump Case | 305460001 | 305460002 | Cast Iron, ASTM-A48 CL30 | |||||
| 2 | Impeller | 305460003 | 305460004 | 305460005 | Cast Iron, ASTM-A48 CL30 | ||||
| 3 | Motor Adapter | 305460007 | 305460008 | Cast Iron, ASTM-A48 CL30 | |||||
| 12 | Mech Seal Shaft Sleeve | 305458010 | 305458011 | 416 Stainless Steel | |||||
| 70 | Base, Engine Frame | 305459015 | n/a | 305459016 | CRS | ||||
| Not Shown | Roll Frame | n/a | 305458013 | n/a | CRS | ||||
| 77 | Pump Handle | 305460009 | 305460010 | 305460009 | n/a | 305460021 | 305460011 | CRS | |
| 90 | Mechanical Shaft Seal | 305463116 | 305463043 | Carbon/Ceramic/FKM/316SS | |||||
| 100 | Case O Ring | 305463125 | 305463126 | EPDM | |||||
| 200 | Engine | See Engines Below | Misc | ||||||
| 500A | Pipe Plug | 305463050 | Cad-Plated Steel | ||||||
| 503 | Water Slinger | 305460012 | 305458022 | 305460024 | 305460009 | Neoprene | |||
| 530A | Stud-Volute(4 Req) | 305463129 | Zinc-Plated Steel | ||||||
| 530B | Lockwasher-Volute(8-pack) | 305463032 | Zinc-Plated Steel | ||||||
| 530C | Hex Nut-volute(8-pack) | 305463033 | Zinc-Plated Steel | ||||||
| 530D | Hex Bolt-Bracket | 305463128 | 305463121 | 305463189 | Zinc-Plated Steel | ||||
| 530E | Internal Lock Washer-Bracket(4-pack) | 305463127 | 305463190 | Zinc-Plated Steel | |||||
| 530F | Hex Bolt Plate | 305463122 | 305463191 | 305463122 | Zinc-Plated Steel | ||||
| 530G | Flat Washer- Base (4-pack) | 305463109 | Zinc-Plated Steel | ||||||
| 530H | Lockwasher – Base | 305463092 | Zinc-Plated Steel | ||||||
| 530J | Hex-Nut Base | 305463062 | Zinc-Plated Steel | ||||||
| Not Shown | Spacer (4 Pack) | n/a | 305463192 | n/a | Cast Iron, ASTM-A48 CL30 | ||||
Repair-parts references are from the older Kendisco documentation. Several descriptions and part-number assignments in that table warrant confirmation against an up-to-date Franklin parts list, especially the water-slinger (figure 503) and engine-frame hardware rows. The table is retained for identification, not a guarantee of interchangeability or current stock.
FBSGF Pump End Kits
The original Kendisco content also references these pump-end-kit models. Confirm applicability and availability with the supplier, since they are not included in the five-model current complete-pump ordering list.
| Pump End Kit | Original Reference Order No. |
|---|---|
| FBSGF-8K | 90276008 |
| FBSGF-10K | 90276010 |
| FBSGF-12K | 90276012 |
FBSGF Dimensions and Installation Drawings
| Model | Fig. | Suction | Discharge | L | W | H | HS |
|---|---|---|---|---|---|---|---|
| FBSGF-8 | 1 | 2 | 2 | 15.25 | 13.25 | 14.00 | 9.25 |
| FBSGF-8H | 1 | 2 | 2 | 16.16 | 13.25 | 14.10 | 9.27 |
| FBSGF-10 | 1 | 2 | 2 | 16.69 | 15.75 | 16.00 | 9.25 |
| FBSGF-10H | 1 | 2 | 2 | 16.43 | 13.01 | 13.87 | 9.27 |
| FBSGF-12 | 1 | 3 | 3 | 21.00 | 18.75 | 16.50 | 12.00 |
| FBSGF-12H | 1 | 3 | 3 | 21.19 | 18.50 | 16.60 | 11.04 |
| FBSDF-10RF | 2 | 2 | 2 | 25.00 | 20.38 | 21.50 | 12.04 |
Dimensions are sourced from the older Kendisco product reference and should be verified against the exact model/engine configuration before using them for skid, cart or pipe-clearance design.
Installation and Operation Considerations
- Initial priming: Fill the pump housing using the priming opening before first startup. Self-priming capability does not mean the pump can safely operate dry.
- Suction plumbing: Make the suction line airtight, support connections properly, and account for suction-lift limits in the model’s installation manual.
- Drive and setup: Mount the complete pump horizontally on a stable surface with safe engine ventilation. Confirm engine fuel, start and low-oil protection details for the selected model.
- Liquid compatibility: Check temperature, chemistry and solids content against cast iron, seal materials and the manufacturer guidance.
- Cold-weather storage: Drain the volute using the designated drain port before freezing conditions.
- Service: Refer to the correct pump and engine manuals before maintenance and allow hot components to cool.
Frequently Asked Questions
What is the FBSGF pump used for?
The FBSGF is a gas engine-driven self-priming centrifugal pump used for temporary irrigation and water transfer, including suitable agricultural, construction, commercial and light industrial applications.
Which FBSGF models use 2-inch connections?
FBSGF-8, FBSGF-8H, FBSGF-10 and FBSGF-10H have 2-inch suction and 2-inch discharge connections. FBSGF-12H uses 3-inch suction and 3-inch discharge connections.
Are Honda and Briggs & Stratton engines available?
Yes. Franklin’s current FBSGF ordering list includes both brands, with engine displacements ranging from 118 cc to 270 cc depending on model.
Does the FBSGF need to be primed before use?
The housing requires an initial fill. With the system installed correctly and adequate priming liquid retained, the self-priming configuration supports subsequent restarts. Follow the model’s operating manual.
How do I choose between FBSGF-8, FBSGF-10 and FBSGF-12H?
Choose according to total dynamic head, required GPM, suction conditions, pipe size and drive/engine requirements. The flow-at-head table above is more useful for sizing than engine horsepower alone.
Are older FBSGF-12 and FBSDF diesel models still available?
They appear in an older Kendisco ordering reference, but not in the currently displayed five-model Franklin FBSGF list. Contact Ken’s Distributing with the original model and order number to confirm options.
Where can I find replacement parts for an FBSGF pump?
Review the exploded diagram and repair-parts table above, then contact Ken’s Distributing Company with the pump model and part number to confirm compatibility and availability.
Request an FBSGF Pump or Parts Quote
Need help choosing an FBSGF-8, FBSGF-10, or FBSGF-12H, or finding components for an older model? Contact Ken’s Distributing Company at 303-699-7845 or use the product quote form above. Include the required GPM, total dynamic head, suction conditions and the model/item number if known.
