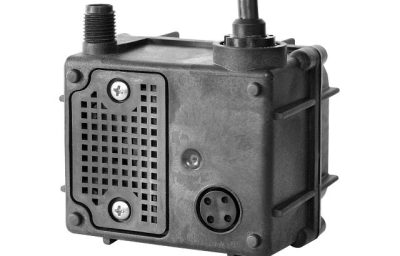

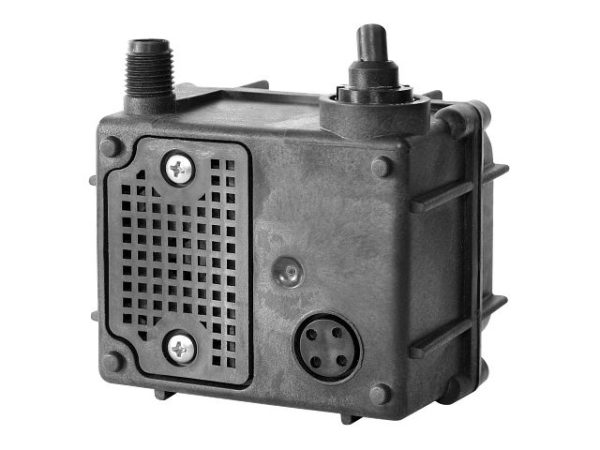

Little Giant’s small oil-filled submersible pump with corrosion-resistant nylon housing is compact in design and will pump 120 gph. The P-AAA can be used for many purposes around the home, in workshops, or the commercial or industrial field. Applications for a small oil-filled submersible pump include statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated.
The P-AAA Series is a transferable small submersible pump designed for continuous duty operation. This pump features a 1/4 in. MNPT discharge, 4.6 ft. shut-off head capability, and screened inlet. It’s supported by a 1/160 horsepower oil-filled, direct-drive motor that’s engineered for better lubrication and longer life while able to offer better heat protection. The motor in the small submersible pump is also impedance protected with higher impedance in the motor windings so that even if the motor locks, the increase in current (input) will be minimized and temperature will not rise above a certain level.
| Capacity | 120 gph @ 1′ |
| Shut Off | 4.6′ (1.4 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 1/4″ MNPT (6 mm) |
| Impeller | Glass-filled nylon |
| Electrical | 115 V, 60 Hz, 0.5 A 230 V, 50/60 Hz, 0.4/0.3 A |
| Head | GPH (LPH) |
| 1′ | 120 (454.2) |
| 3′ | 70 (265) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft | Cord Length |
|---|---|---|---|---|---|---|
| 523003 | P-AAA (6-Ft. Cord) | 115 VAC | 2 gpm / 120 gph | 4.6 ft | 6 ft | |
| 523500 | P-AAA | 127 VAC | 2 gpm / 120 gph | 4.6 ft | 6 ft | |
| 523112 | P-AAA | 230 VAC | 2 gpm / 120 gph | 4.6 ft | 12 ft | |
| 523375 | P-AAA (15-Ft.) | 115 VAC | 2 gpm / 120 gph | 4.6 ft | 15 ft |
