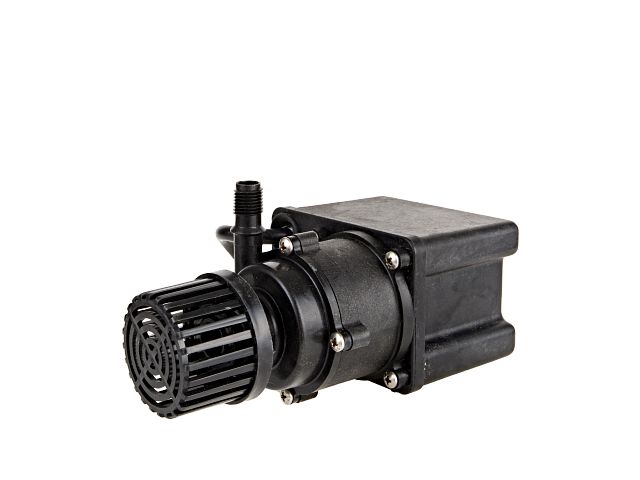

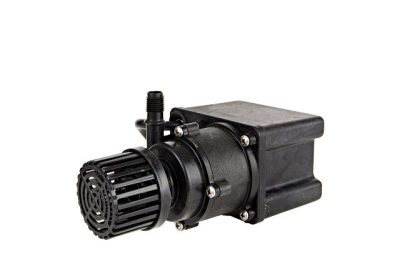

Little Giant’s PE-1.5-MDI-SC Series is for submersible use in the circulation of moderately corrosive chemicals and solutions, including acids, alkalis, solvents, brine, plating, and sterile solutions. This magnetic-driven pump handles most mildly corrosive fluids with low concentrations of acids and alkalis in the pH range of 5 to 9 at fluid temperatures up to 150 °F (66 °C).
The Little Giant PE-1.5-MDI-SC Series features leakproof, seal-less magnetic drives and is designed for submersible use only. Volute, magnet housing, and impeller are glass-filled polypropylene for excellent chemical resistance. Ceramic shaft and thrust washers are 99.5% pure alumina for excellent wear resistance and trouble-free service. Pumping heads are easily rotated, cleaned, or serviced with no special tools required. The spindle shaft is supported at both ends to prevent impeller damage during the start and stop of the pump.
| Capacity | 325 gph @ 1′ |
| Shut Off | 12.8′ (3.9 m) |
| Max. Liquid Temp. | 77 °F (25 °C) |
| Discharge | 1/4″ MNPT (6 mm) |
| Impeller | Glass-filled polypropylene |
| Electrical | 115 V, 60 Hz, 0.9 A |
| Head | GPH (LPH) |
| 1′ | 325 (1230.3) |
| 3′ | 300 (1135.6) |
| 6′ | 245 (927.4) |
| 8′ | 200 (757.1) |
| 10′ | 150 (567.8) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 589204 | PE | 115 VAC | 5.5 gpm / 330 gph | 12.8 ft |
