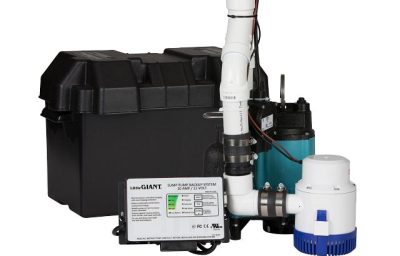

The SPBS Series sump pump battery backup offers an additional line of defense against flooding for sump pumping systems. The backup system is available in four distinct models that include a charging unit, backup pump switch, and primary pump. An additional backup pump is also available on select models.

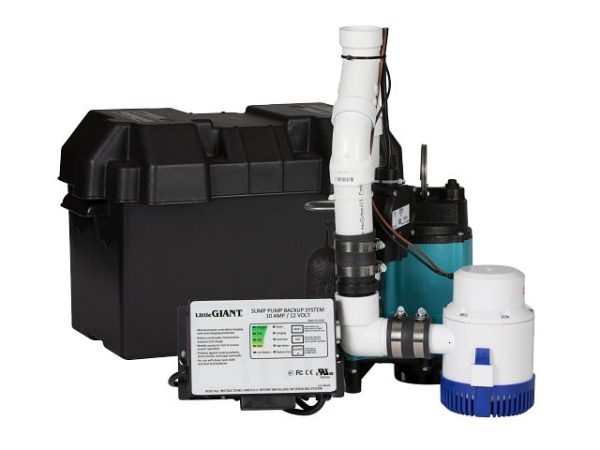

The SPBS Series sump pump battery backup provide a complete backup system to automatically activate a backup sump pump when the primary sump pump malfunctions or when the main electrical power supply fails. The SPBS-10HF-6 and SPBS-12HF-10 combination sump pump packages come with a charging unit, battery-powered 12 VDC backup pump, and a primary pump all contained in one unit. Primary pump options include 1/2 or 1/3 horsepower.
| Backup Pump Electrical | 12 VDC |
| Primary Pump Electrical | 115 VAC, 60 Hz, 3 A (506411) 115 VAC, 60 Hz, 6.5 A (506410) |
| Controller/Charger/Alarm Unit | 1 A, 10 A, or 12A |
| Battery Size | Size 27, 12 V deep cycle battery (not included) |
| Switch | Diaphragm |
| Pump Options | 6EC-CIA-SFS, 10EC-CIA-SFS |
| Head | 2500 GPM (LPM) | 3360 GPM (LPM) | 6EC GPM (LPM) | 10EC GPM (LPM) |
| 0′ | 42 (159) | 53 (200.6) | – | – |
| 5′ | 29 (109.8) | 39 (147.6) | 53 (200.6) | 67 (253.6) |
| 10′ | 20 (75.7) | 24 (90.8) | 50 (189.3) | 57 (215.8) |
| 15′ | – | 13 (49.2) | 42 (159) | 54 (204.4) |
| 20′ | – | – | 34 (128.7) | 47 (177.9) |
| 30′ | – | – | – | 28 (106) |
| Item | Model | Description |
|---|---|---|
| 506411 | SPBS-10HF-6 | SPBS Series Battery Backup Package, Includs pre-assembled 6EC Series 115 V integrated snap action float switch primary sump pump, 10 amp battery charger, 2500 GPH 12 volt backup pump, diaphragm switch, battery box and pipe fittings. |
| 506410 | SPBS-12HF-10 | SPBS Series Battery Backup Package, Includes pre-assembled 10EC 1/2 HP sump/effluent primary pump, 12 amp battery charger, 3360 GPH 12 volt backup pump, battery box, diaphragm switch and pipe fittings. |
| Item | Model | Description |
|---|---|---|
| 506406 | SPBS-10HF | Accessory Add-On battery backup package system, 10 amp battery charger, 2500 GPH 12 volt backup pump, diaphragm switch, pipe fittings, and battery box |
| 506407 | SPBS-12HF | Accessory SPBS Series Add-on Battery Backup Package, Includes 12 amp battery charger, 3360 GPH 12 volt backup pump, diaphragm switch, pipe fittings, and battery box |
| 506404 | SPBS-1HF | Add-on battery backup package system, 1 amp battery charger, 2500 GPH 12 volt backup pump, diaphragm switch, pipe fittings, and battery box |
