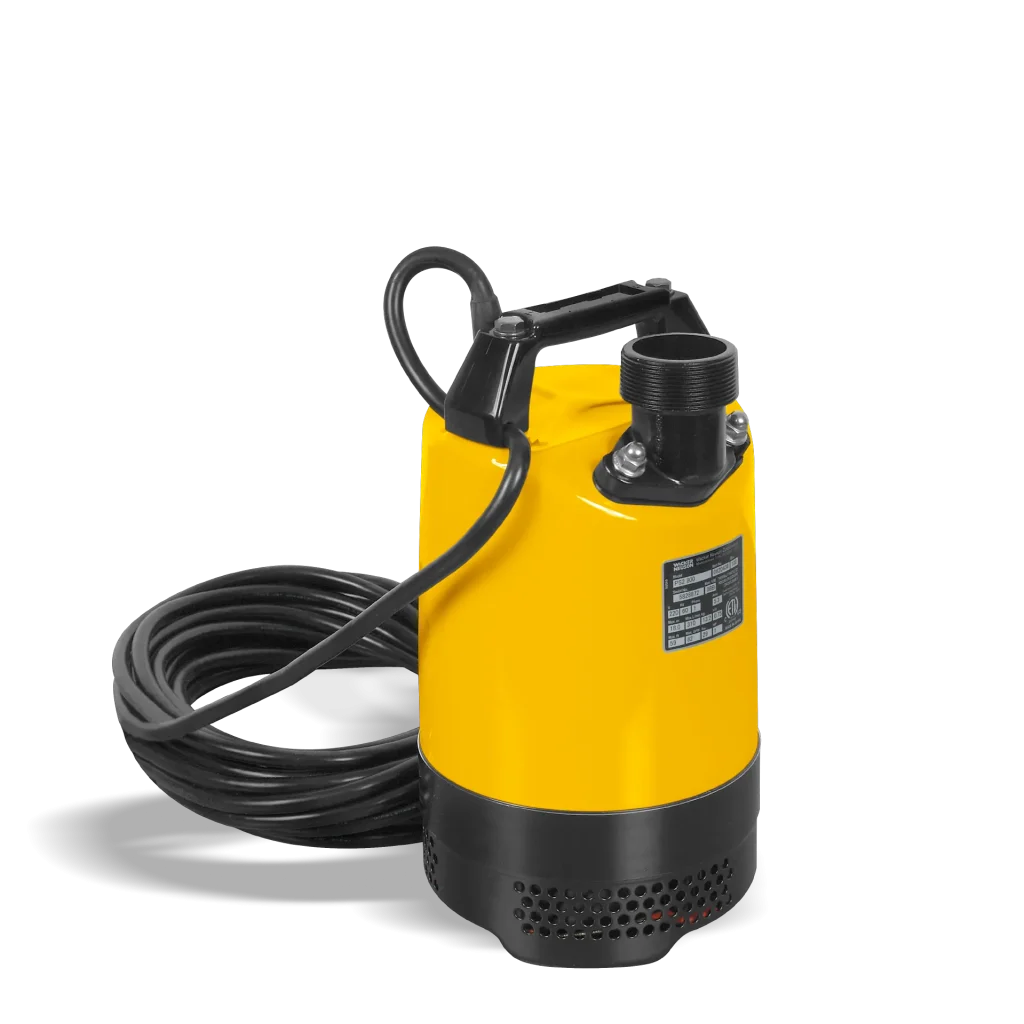

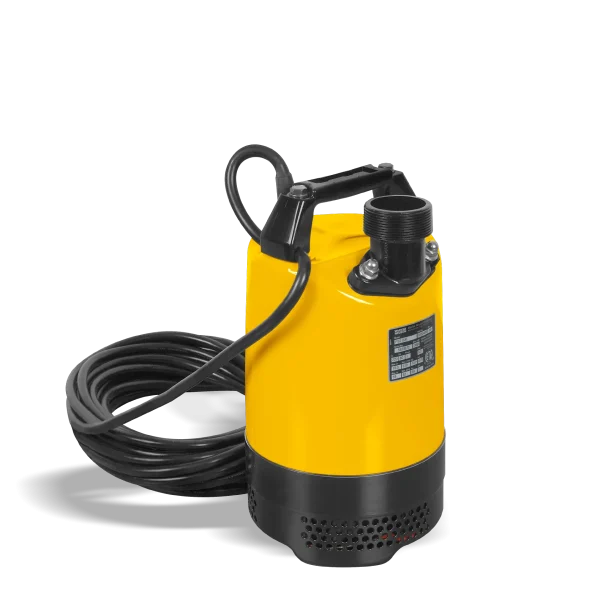

Wacker Neuson PS Series Submersible Pump
Wacker Neuson PS Series Submersible Pump for Cost-Effective Site Dewatering
The Wacker Neuson PS Series submersible pump is a single-phase electric pump designed for reliable, cost-effective dewatering across a wide range of construction and civil engineering applications. Available through Ken’s Distributing Company, the PS Series covers multiple model configurations from 0.75 kW to 2.2 kW, with maximum flow rates reaching 130.2 gallons per minute and delivery heights up to 85.3 feet. Whether the job is large or small, the PS Series provides the versatility and durability that contractors depend on for light to medium dewatering work.
One of the practical advantages of the PS Series is its ability to start in low water levels when primed through the discharge port. This makes it particularly useful toward the end of a dewatering cycle when water depth is minimal, allowing operators to extract as much water as possible without switching to a secondary pump.
Key Features of the Wacker Neuson PS Series Submersible Pump
Lightweight and Compact Design
The PS Series is engineered to be easy to handle, transport, and store. The PS2 800 weighs just 29.1 pounds, and even the larger PS3 2200 comes in at under 64 pounds. The compact footprint means these pumps can be positioned in confined spaces and moved quickly between locations without additional lifting equipment. For contractors running multiple dewatering operations simultaneously, the portability of the PS Series reduces logistical burden significantly.
Built-In Thermal Protection
Every model in the Wacker Neuson PS Series includes built-in thermal protection that automatically shuts the motor down if it begins to overheat due to impeller blockage or running dry. This protection eliminates a common cause of field pump failures and reduces the frequency of service calls. Operators can run the PS Series with confidence, knowing the motor is protected against one of the most damaging conditions a submersible pump can face.
Silicon Carbide Double Mechanical Seals
The PS Series uses silicon carbide-faced double mechanical seals running in an isolated, oil-filled cavity. This arrangement provides continuous lubrication and cooling for the seal faces, protecting the motor from water ingress during extended operation. Silicon carbide seals offer substantially longer service life than standard ceramic or carbon alternatives, making the PS Series a cost-effective long-term investment for regular dewatering work.
Heavy-Duty Strain Relief Power Cord
All PS Series models ship with a PVC-sheathed power cord fitted with a heavy-duty strain relief connection at the pump entry point. This protects the electrical connection from mechanical fatigue caused by repeated repositioning and cable tension, which is a common cause of cord failure on active construction sites.
Low Water Level Start Capability
The PS Series can be primed through the discharge port and started in low water level conditions. This is a practical advantage over pumps that require full submersion to operate, allowing the PS Series to continue working as site water levels drop during the dewatering process.
Technical Specifications: Wacker Neuson PS Series Submersible Pump
The PS Series is available in multiple model configurations. The tables below provide complete technical data in both metric and imperial units.
Metric Specifications
| Specification | PS2 800 (220V) | PS2 800 (110V) | PS3 1500 (110V) | PS3 1500 (220V) | PS3 2200 (220V) |
|---|---|---|---|---|---|
| Nominal Power | 0.75 kW | 0.75 kW | 1.5 kW | 1.5 kW | 2.2 kW |
| Nominal Voltage | 220 V | 110 V | 110 V | 220 V | 220 V |
| Nominal Current | 5.3 A | 10.1 A | 23 A | 11.5 A | 13 A |
| Nominal Frequency | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
| Nominal Speed | 3,300 rpm | 3,300 rpm | 3,440 rpm | 3,440 rpm | 3,465 rpm |
| Max Flow Rate | 310 l/min | 310 l/min | 420 l/min | 420 l/min | 493 l/min |
| Max Solids Diameter | 6 mm | 6 mm | 8.5 mm | 8.5 mm | 8.5 mm |
| Max Delivery Height | 18 m | 18 m | 21 m | 21 m | 26 m |
| Intake/Pressure Socket Dia. | 50 mm | 50 mm | 80 mm | 80 mm | 80 mm |
| Operating Weight | 13.2 kg | 13.2 kg | 28.8 kg | 28.8 kg | 29 kg |
| Length | 192 mm | 192 mm | 240 mm | 240 mm | 240 mm |
| Width | 187 mm | 187 mm | 240 mm | 240 mm | 240 mm |
| Height | 341 mm | 341 mm | 570 mm | 570 mm | 570 mm |
| Cable Length | 15 m | 15 m | 10 m | 10 m | 10 m |
| Cable Definition | PVC Sheath | PVC Sheath | PVC Sheath | PVC Sheath | PVC Sheath |
| Max Liquid Temperature | 40 C | 40 C | 40 C | 40 C | 40 C |
| Shipping Weight | 16.4 kg | 16.4 kg | 35 kg | 35 kg | 35 kg |
| Shipping Length | 475 mm | 475 mm | 345 mm | 345 mm | 345 mm |
| Shipping Width | 267 mm | 267 mm | 330 mm | 330 mm | 330 mm |
| Shipping Height | 260 mm | 260 mm | 710 mm | 710 mm | 710 mm |
Imperial Specifications
| Specification | PS2 800 (220V) | PS2 800 (110V) | PS3 1500 (110V) | PS3 1500 (220V) | PS3 2200 (220V) |
|---|---|---|---|---|---|
| Nominal Power | 0.75 kW | 0.75 kW | 1.5 kW | 1.5 kW | 2.2 kW |
| Nominal Voltage | 220 V | 110 V | 110 V | 220 V | 220 V |
| Nominal Current | 5.3 A | 10.1 A | 23 A | 11.5 A | 13 A |
| Nominal Frequency | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
| Nominal Speed | 3,300 rpm | 3,300 rpm | 3,440 rpm | 3,440 rpm | 3,465 rpm |
| Max Flow Rate | 81.9 gal/min | 81.9 gal/min | 111 gal/min | 111 gal/min | 130.2 gal/min |
| Max Solids Diameter | 0.2 in | 0.2 in | 0.3 in | 0.3 in | 0.3 in |
| Max Delivery Height | 59.1 ft | 59.1 ft | 68.9 ft | 68.9 ft | 85.3 ft |
| Intake/Pressure Socket Dia. | 2 in | 2 in | 3.1 in | 3.1 in | 3.1 in |
| Operating Weight | 29.1 lb | 29.1 lb | 63.5 lb | 63.5 lb | 63.9 lb |
| Length | 7.6 in | 7.6 in | 9.4 in | 9.4 in | 9.4 in |
| Width | 7.4 in | 7.4 in | 9.4 in | 9.4 in | 9.4 in |
| Height | 13.4 in | 13.4 in | 22.4 in | 22.4 in | 22.4 in |
| Cable Length | 49.2 ft | 49.2 ft | 32.8 ft | 32.8 ft | 32.8 ft |
| Cable Definition | PVC Sheath | PVC Sheath | PVC Sheath | PVC Sheath | PVC Sheath |
| Max Liquid Temperature | 104 F | 104 F | 104 F | 104 F | 104 F |
| Shipping Weight | 36.2 lb | 36.1 lb | 77.2 lb | 77.2 lb | 77.2 lb |
| Shipping Length | 18.7 in | 18.7 in | 13.6 in | 13.6 in | 13.6 in |
| Shipping Width | 10.5 in | 10.5 in | 13 in | 13 in | 13 in |
| Shipping Height | 10.2 in | 10.2 in | 28 in | 28 in | 28 in |
PS Series Model Variants and Item Numbers
The Wacker Neuson PS Series is available in a full range of configurations to match different power supply requirements and flow rate demands. The table below summarizes all available variants with their corresponding item numbers.
| Model | Item Number | Voltage | Description |
|---|---|---|---|
| PSR1 500 | 5000620411 | Single Phase | Electric, low level residue, single-phase submersible pump for pumping low water levels |
| PS2 500 | 5000009113 | Single Phase | Electric, low level residue, single-phase submersible pump for pumping low water levels |
| PS2 500 | 5000009172 | Single Phase | Electric, low level residue, single-phase submersible pump for pumping low water levels |
| PS2 800 | 5000620436 | Single Phase | Electric, low level residue, single-phase submersible pump for pumping low water levels |
| PS2 800 | 5000620442 | Single Phase | Electric, low level residue, single-phase submersible pump for pumping low water levels |
| PS3 1500 | 5000009117 | Single Phase | Electric, low level residue, single-phase submersible pump for pumping low water levels |
| PS3 1500 | 5000009118 | Single Phase | Electric, low level residue, single-phase submersible pump for pumping low water levels |
| PS3 2200 | 5000009119 | Single Phase | Electric, low level residue, single-phase submersible pump for pumping low water levels |
Applications: Where the Wacker Neuson PS Series Submersible Pump Excels
The PS Series is built to handle a broad range of light to medium dewatering applications. Its combination of compact size, low water level capability, and multi-voltage availability makes it one of the most versatile submersible pumps in the Wacker Neuson range.
- Construction Site Dewatering: Removing accumulated groundwater and surface water from active excavations, trenches, and foundation pits throughout the construction cycle.
- Low Water Level Recovery: The discharge port priming capability allows the PS Series to continue operating as water levels drop, extracting residual water that standard pumps cannot reach.
- Civil Engineering and Infrastructure Projects: Managing groundwater ingress during pipeline installation, road construction, and utility trenching.
- Flood and Emergency Drainage: Rapid deployment for removing water from flooded areas, basements, and water-damaged structures.
- Municipal and Utility Maintenance: Dewatering manholes, lift stations, and underground utility chambers during maintenance operations.
- Agricultural and Irrigation Management: Water transfer and drainage control in farming and irrigation infrastructure applications.
Wacker Neuson PS Series vs. PSW Series vs. PSA Series: Choosing the Right Pump
Wacker Neuson’s submersible pump range includes several series, each optimized for specific conditions. The table below helps clarify which model suits your application.
| Feature | PS Series | PSW Series | PSA Series |
|---|---|---|---|
| Primary Use | General site dewatering, low water level recovery | Well point dewatering, slim-profile applications | Dirty water with higher solids content |
| Max Flow Rate | 130.2 gal/min (PS3 2200) | 111 gal/min (PSW3 1500) | Refer to PSA specs |
| Max Solids Diameter | 0.3 in (8.5 mm) | 0.2 in (6 mm) | Larger solids capacity |
| Voltage Options | 110V and 220V | 110V | Refer to PSA specs |
| Low Water Level Start | Yes, via discharge port priming | Standard submersible operation | Standard submersible operation |
| Profile | Compact, portable | Slim, narrow profile | Standard |
For applications involving water with heavier concentrations of suspended solids or debris, the Wacker Neuson PSA Series submersible pump for dirty water dewatering is the recommended choice. For well point and tight-access applications requiring a slim profile, the Wacker Neuson PSW Series submersible pump is purpose-built for that requirement.
How to Set Up and Operate the Wacker Neuson PS Series Submersible Pump
The PS Series is designed for quick deployment with minimal setup requirements. The steps below provide general operational guidance. Always consult the official Wacker Neuson operator’s manual before use.
- Pre-deployment inspection: Examine the power cord for any cuts or damage, verify the drain and fill plugs are tight, and check the intake screen is free of debris before lowering the pump.
- Position the pump: Lower the pump into the water using the integrated carry handle. Position it on a stable, level surface and ensure the intake is fully submerged.
- Priming for low water levels: If water depth is minimal, prime the pump by adding water through the discharge port before starting. This allows the PS Series to operate effectively in shallow conditions.
- Connect the discharge hose: Attach an appropriately sized hose to the pressure socket. Route the discharge line away from the work area and ensure it is free of kinks or restrictions.
- Connect power: Plug the pump into a properly rated power supply matching the voltage of the specific model selected. Confirm the circuit breaker rating is appropriate for the nominal current draw.
- Start and monitor: Switch on power. Monitor the discharge for consistent flow and listen for any unusual noise during startup. The thermal protection system will shut the pump down automatically if the motor overheats.
- Shutdown and storage: Disconnect power before retrieving the pump. Allow it to drain fully before storing or transporting to avoid excess weight and potential contamination.
Safety Notice: This guidance is provided for reference only. Always follow the complete instructions in the official Wacker Neuson operator’s manual. Contact Kendisco for access to official documentation, parts, or technical support from Ken’s Distributing Company.
Frequently Asked Questions: Wacker Neuson PS Series Submersible Pump
What is the Wacker Neuson PS Series submersible pump used for?
The Wacker Neuson PS Series submersible pump is used for cost-effective light to medium dewatering on construction sites, civil engineering projects, and emergency drainage applications. It handles clean to lightly turbid water and is particularly effective in low water level conditions when primed through the discharge port.
What is the maximum flow rate of the Wacker Neuson PS Series?
The maximum flow rate across the PS Series range is 130.2 gallons per minute (493 liters per minute), achieved by the PS3 2200 model. The smaller PS2 800 delivers up to 81.9 gallons per minute. Flow rate selection depends on the volume of water to be removed and the required dewatering speed.
Can the PS Series handle solids?
Yes. The PS2 800 handles solids up to 0.2 inches (6 mm) in diameter, while the PS3 1500 and PS3 2200 handle solids up to 0.3 inches (8.5 mm). The PS Series is not designed for heavy solids, sludge, or high-debris water. For those conditions, the Wacker Neuson PSA Series is the more appropriate choice.
What voltage options are available for the PS Series?
The PS Series is available in both 110V and 220V single-phase configurations, providing flexibility for different site power supply conditions. The specific voltage for each model variant is listed in the specifications table above. Always confirm the voltage requirement before ordering to ensure compatibility with available site power.
What is the difference between the PS Series and the PSW Series?
The PS Series is a general-purpose dewatering pump available in multiple power and voltage configurations, with low water level start capability via discharge port priming. The PSW Series features a slimmer profile specifically designed for well point dewatering applications where the pump must fit inside a narrow casing. The PSW is limited to 110V single phase, while the PS Series covers both 110V and 220V options.
What is the difference between the PS Series and the PSA Series?
The PS Series handles clean to lightly turbid water with solid diameters up to 0.3 inches. The PSA Series is built for dirty water applications with higher concentrations of suspended solids, making it the better choice when water quality on site is consistently poor or variable. If water clarity is uncertain, the PSA Series provides greater operational tolerance.
Where can I purchase the Wacker Neuson PS Series submersible pump?
The Wacker Neuson PS Series submersible pump is available through Kendisco, operating as Ken’s Distributing Company, an authorized Wacker Neuson distributor. Contact Kendisco for current pricing, model availability, and delivery options for all PS Series variants.
Can the PS Series start in shallow water?
Yes. The PS Series can be primed through the discharge port and started in low water level conditions. This makes it practical for the final stages of a dewatering operation when water depth has reduced significantly, allowing operators to recover residual water without switching equipment.
