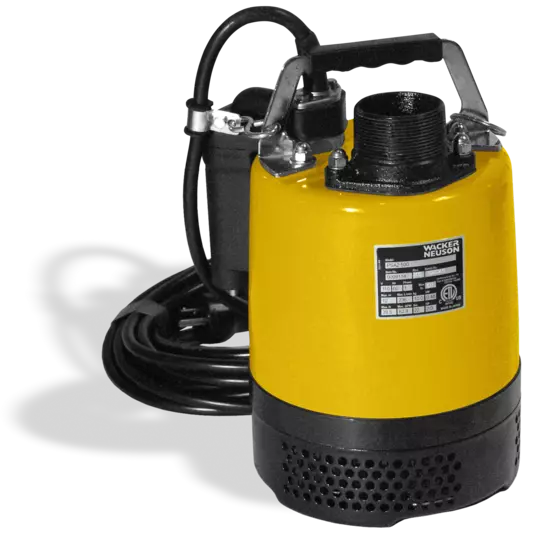

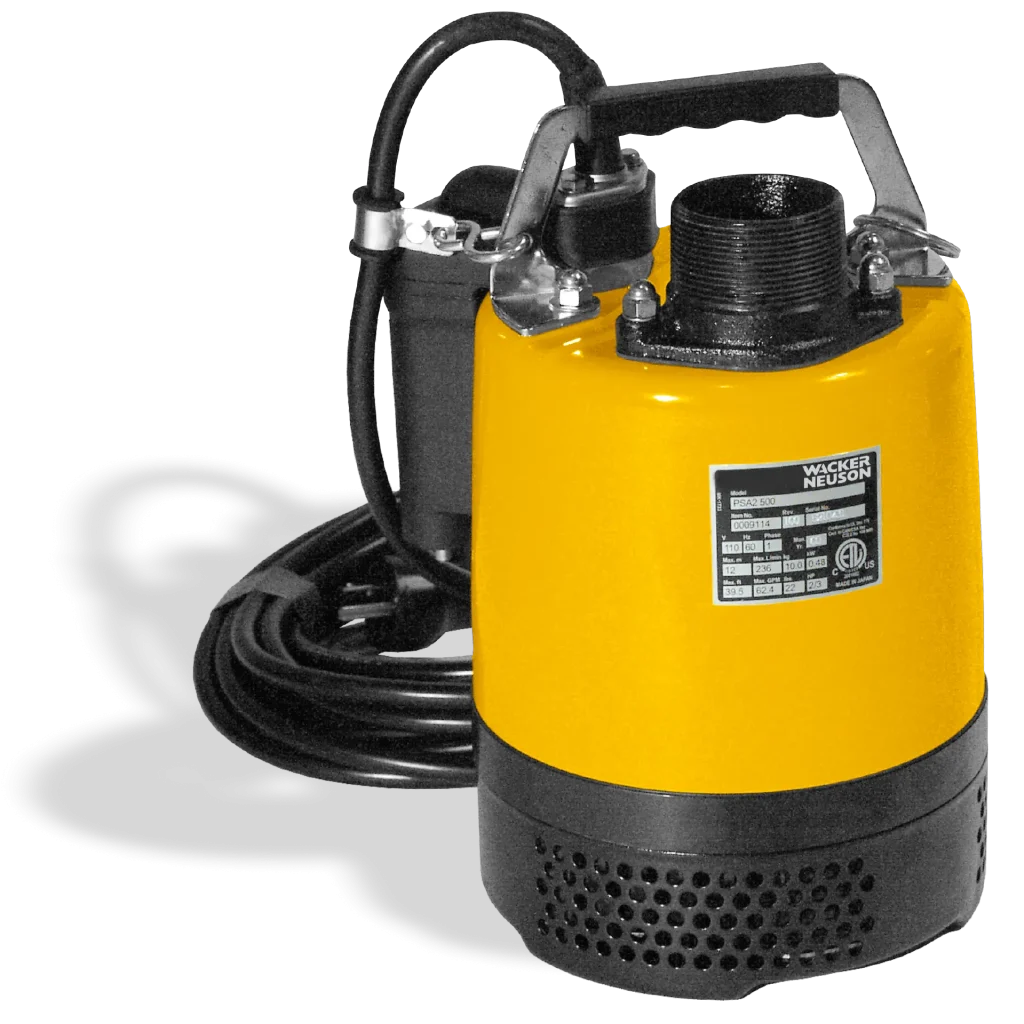

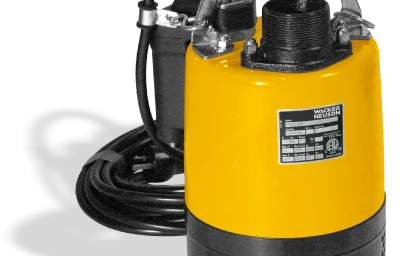

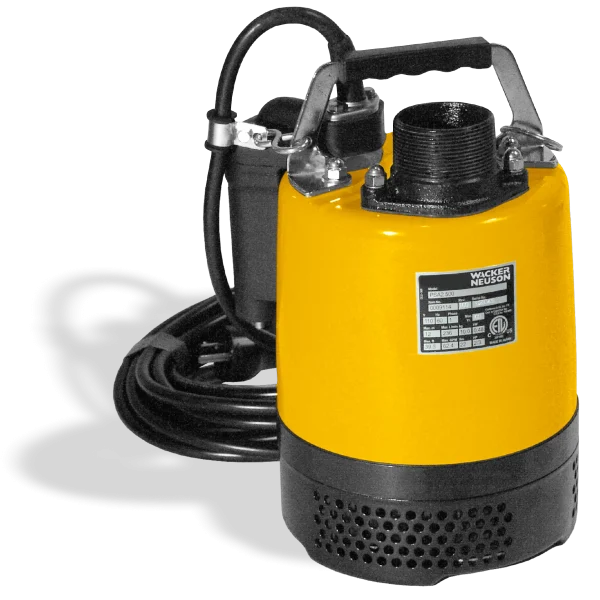

Wacker Neuson PSA Series Submersible Pump

Wacker Neuson PSA Series Submersible Pump for Automatic Jobsite Dewatering

The Wacker Neuson PSA Series submersible pump is an automatic, lightweight, single-phase electric pump built for fast and reliable dewatering on construction sites where water contains suspended solids and light debris. Available through Ken’s Distributing Company, the PSA Series handles solids up to 0.4 inches in diameter, making it a more capable option than standard clean water submersible pumps when site water quality is variable or consistently poor. With models ranging from 0.48 kW to 0.75 kW and flow rates up to 81.9 gallons per minute, the PSA Series covers a practical range of light dewatering applications without sacrificing portability or ease of use.

The automatic operation of the PSA Series is one of its most practical field advantages. Rather than requiring manual monitoring and switching, the pump responds to water levels automatically, reducing operator workload on busy job sites and minimizing the risk of the pump running dry.

Key Features of the Wacker Neuson PSA Series Submersible Pump

Solids Handling Up to 0.4 Inches

Unlike the standard PS Series, which handles solids up to 0.3 inches, the Wacker Neuson PSA Series is specifically rated for solids up to 0.4 inches (approximately 10 mm) in diameter. This broader solids tolerance makes the PSA the right choice for construction sites where excavation work, concrete operations, or ground disturbance introduces debris and particulates into standing water. The PSA handles this category of water reliably, reducing the risk of blockage and the associated downtime that comes with it.

Automatic Operation

The PSA Series is designed to operate automatically in response to water level changes. This means the pump activates when water reaches a set level and switches off when the level drops, without requiring an operator to be present for each cycle. For unattended dewatering operations or sites where water inflow is intermittent, this automated behavior reduces energy consumption and extends pump service life by preventing unnecessary dry running.

Lightweight and Compact Design

The PSA2 500 weighs just 22 pounds and the PSA2 800 comes in at 30.4 pounds, making both models easy to carry, position, and retrieve by a single operator. The compact footprint of each model allows deployment in tight excavations, confined utility chambers, and other restricted spaces where larger pumps cannot be used effectively. Storage and transport between job sites is straightforward, which matters when managing multiple active dewatering locations simultaneously.

Built-In Thermal Protection

The Wacker Neuson PSA Series includes built-in thermal protection that automatically cuts power to the motor if overheating is detected, typically caused by impeller blockage or operating conditions that exceed the motor’s thermal limits. This protection significantly reduces the risk of motor burnout and the costly repair or replacement that follows. On active construction sites where pumps are often left running unattended, this feature provides meaningful operational security.

Silicon Carbide Double Mechanical Seals

Sealing integrity is critical for any submersible pump operating in water containing solids. The PSA Series uses silicon carbide-faced double mechanical seals housed in an isolated, oil-filled cavity. This design provides continuous lubrication and cooling to the seal faces, protecting the motor from water ingress even during extended operation in demanding conditions. Silicon carbide is significantly harder and more wear-resistant than ceramic or carbon seal materials, which translates directly into longer service intervals and lower maintenance costs.

Heavy-Duty Strain Relief Power Cord

The PSA Series is supplied with a PVC-sheathed power cord fitted with a robust strain relief connection at the pump body. This protects the cable entry point from the mechanical stress of repeated repositioning and cord tension, which is one of the most common causes of electrical failure in pump cords used on construction sites.

Technical Specifications: Wacker Neuson PSA Series Submersible Pump

Full technical data for the PSA2 500 and PSA2 800 models is provided below in both metric and imperial units.

Metric Specifications

Imperial Specifications

PSA Series Model Variants and Item Numbers

The Wacker Neuson PSA Series is available in two primary configurations. Both models are high-performance submersible pumps rated for solids up to 0.4 inches in diameter.

Applications: Where the Wacker Neuson PSA Series Submersible Pump Performs Best

The PSA Series is specifically designed for applications where water quality is variable or where suspended solids and light debris are present. Its automatic operation and solids-handling capability make it a dependable choice across a wide range of field scenarios.

• Construction Site Dewatering with Debris: Removing groundwater from excavations and foundation pits where concrete dust, fine aggregate, and soil particles have entered the water, conditions that would clog a clean water pump.
• Trench and Pipeline Dewatering: Managing water ingress during trench excavation and pipeline installation where disturbed soil creates turbid water conditions throughout the dewatering cycle.
• Unattended Dewatering Operations: The automatic switching capability makes the PSA Series well suited for overnight or unmonitored dewatering where intermittent water inflow requires the pump to cycle on and off without operator intervention.
• Civil Engineering and Infrastructure Projects: Controlling groundwater levels on road construction, utility installation, and civil drainage projects where site conditions generate variable water quality.
• Flood and Emergency Response: Rapid deployment for removing debris-laden floodwater from basements, low-lying structures, and flooded work areas where water contains surface-level particulates.
• Municipal and Utility Maintenance: Dewatering manholes, drainage chambers, and underground utility vaults where standing water often contains sediment and fine debris from surrounding infrastructure.

Wacker Neuson PSA Series vs. PS Series vs. PST Series: Which Submersible Pump Is Right?

Selecting the correct submersible pump from the Wacker Neuson range depends primarily on the type of water being handled, the required flow rate, and whether automatic operation is needed. The comparison below clarifies the key differences between the PSA, PS, and PST Series.

For applications requiring higher flow rates with clean water, the Wacker Neuson PS Series submersible pump offers greater capacity options. For continuous heavy-duty industrial dewatering with demanding duty cycles, the Wacker Neuson PST Series heavy-duty submersible pump is the appropriate choice. For applications involving sludge, mud, or larger solids beyond the PSA’s range, the Wacker Neuson PDT diaphragm pump is worth considering.

How to Set Up and Operate the Wacker Neuson PSA Series Submersible Pump

The PSA Series is straightforward to deploy and requires minimal setup time. The guidance below is provided for general reference. Always consult the official Wacker Neuson operator’s manual before use.

1. Pre-deployment check: Inspect the power cord for any signs of damage. Confirm all plugs and fittings are secure and the intake screen is clear before placing the pump in water.
2. Position the pump: Lower the PSA Series pump into the water using the carry handle. Set it on a stable, level surface with the intake fully submerged. Avoid placing the pump directly on fine silt or mud that could restrict the intake.
3. Connect the discharge hose: Attach the appropriate discharge hose to the pressure socket. Route the hose to the designated discharge point, keeping it free of kinks and ensuring a continuous downward or horizontal grade where possible.
4. Connect power: Plug the pump into a properly rated single-phase power supply matching the voltage of the selected model. Confirm the circuit is protected by an appropriate breaker rating for the nominal current draw.
5. Verify automatic operation: The PSA Series activates automatically when water reaches the operating level. Confirm the float or sensor mechanism is unobstructed and positioned correctly to allow unrestricted movement.
6. Monitor startup: Observe the pump during the first operating cycle. Confirm discharge is flowing consistently and listen for any unusual noise or vibration that could indicate an intake obstruction.
7. Shutdown and retrieval: Disconnect power before removing the pump from the water. Rinse the intake screen and housing with clean water before storing or transporting to prevent solids from drying inside the pump.

Safety Notice: This information is provided for general reference only. Always follow the complete instructions contained in the official Wacker Neuson operator’s manual. Contact Kendisco for access to official documentation or technical support from Ken’s Distributing Company.

Frequently Asked Questions: Wacker Neuson PSA Series Submersible Pump

What is the Wacker Neuson PSA Series submersible pump used for?

The Wacker Neuson PSA Series submersible pump is used for automatic dewatering of construction sites, excavations, and other locations where standing water contains suspended solids and light debris. Its automatic switching capability and solids handling rating of up to 0.4 inches make it suitable for applications where standard clean water pumps would block or require continuous monitoring.

What size solids can the Wacker Neuson PSA Series handle?

The Wacker Neuson PSA Series is rated to handle solids up to 0.4 inches in diameter. This is larger than the PS Series, which handles solids up to 0.3 inches, making the PSA the better choice when construction activity introduces fine aggregate, concrete particles, or soil debris into site water.

Does the PSA Series operate automatically?

Yes. The Wacker Neuson PSA Series is designed for automatic operation, activating when water reaches a set level and switching off when the level drops sufficiently. This makes it well suited for unattended dewatering operations where water inflow is intermittent and continuous operator presence is not practical.

What is the difference between the PSA Series and the PS Series?

The PSA Series handles dirty water with suspended solids up to 0.4 inches and features automatic operation, making it suitable for variable water conditions and unmonitored cycling. The PS Series handles cleaner water with solids up to 0.3 inches and requires manual switching. The PS Series offers higher maximum flow rates, up to 130.2 gallons per minute on the PS3 2200, compared to 81.9 gallons per minute on the PSA2 800.

What voltage options are available for the PSA Series?

The PSA2 500 operates on 110V single phase at 60 Hz, drawing 6.1 amps. The PSA2 800 operates on 220V single phase at 60 Hz, drawing 5.3 amps. Select the model that matches the available power supply on your job site to ensure safe and efficient operation.

What is the difference between the PSA Series and the PST Series?

The PSA Series is a lighter-duty automatic pump designed for construction site dewatering with solids-laden water at flow rates up to 81.9 gallons per minute. The PST Series is a heavy-duty submersible pump built for continuous industrial dewatering applications with higher power ratings and greater output capacity. The PST is the appropriate choice when duty cycle demands exceed what the PSA Series is designed to handle.

Where can I buy the Wacker Neuson PSA Series submersible pump?

The Wacker Neuson PSA Series submersible pump is available through Kendisco, operating as Ken’s Distributing Company, an authorized Wacker Neuson distributor. Contact Kendisco for current pricing, model availability, and delivery options for both the PSA2 500 and PSA2 800.
