Diaphragm Pumps of the PDT series

Diaphragm Pumps of the PDT series: The PDT diaphragm trash pumps can move almost anything that flows

These pumps are ideal for moving water with mud, slurries and in seepage areas. Built with high quality component, you will be assured of many years of top performance and durability. Large solid rubber tires provide excellent traction and smooth rolling over rough terrain.

Click to rate this post!

[Total: 0 Average: 0]

Straight through water flow design

Straight through water flow design provides high production pumping capacity and less down time blockages.

Ductile iron crankcase for maximum durability.

Ductile iron crankcase provides maximum durability. Hardened forged gears extend pump life and provide efficient power transmission from the engine to the pump.

Lightweight cast aluminum housing

Aluminum alloy body with heavy-duty pump diaphragm provides a lightweight, low maintenance package that ensures long life.

Oil bath lubricated transmission reduces maintenance costs

Oil bath lubricated transmission ensures continuous lubrication to all parts of the gear transmission system, reducing both maintenance costs and lost production time.

Surge chamber on inlet side for smooth pumping

Surge chamber on inlet side results in smooth pumping operation by absorbing pressure spikes while reducing wear.

Technical Data

Metric

Specification	PD13A	PD12A
Flow rate max.	333 l/min	189 l/min
Solid diameter max.	41 mm	32 mm
Suction head max.	6.1 m	6.1 m
Delivery height max.	7.6 m	7.6 m
Length	1,102 mm	1,100 mm
Width	671 mm	561 mm
Height	594 mm	589 mm
Intake-/Pressure socket-dia.	75 mm	50 mm
Engine type	Gasoline engine	Gasoline engine
Cylinder	1.0	1.0
Cylinder capacity	118 cm³	118 cm³
Fuel	Gasoline	Gasoline
Fuel consumption	1.1 L/hr	1.1 L/hr
Tank capacity	2 L	2 L
Oil filling max.	0.6 L	0.6 L
Power rating max.	2.6 KW	2.6 KW
Engine speed (Power max.)	3,600 1/min	3,600 1/min
Operating Engine speed	2,800 1/min	2,800 1/min
Standard (Operating power)	SAE J1349	SAE J1349
Engine Manufacturer	Honda	Honda
Running time at 100%	2 hrs	2 hrs
Shipping weight	79 kg	75 kg

Imperial

Specification	PD13A	PD12A
Flow rate max.	88 gal/min	49.9 gal/min
Solid diameter max.	1.6″	1.3″
Suction head max.	20 ft	20 ft
Delivery height max.	24.9 ft	24.9 ft
Length	43.4″	43.3″
Width	26.4″	22.1″
Height	23.4″	23.2″
Intake-/Pressure socket-dia.	3″	2″
Engine type	Gasoline engine	Gasoline engine
Cylinder	1.0	1.0
Cylinder capacity	7.2 in³	7.2 in³
Fuel	Gasoline	Gasoline
Fuel consumption	0.3 GPH US	0.3 GPH US
Tank capacity	0.5 gal US	0.5 gal US
Oil filling max.	0.2 gal US	0.2 gal US
Power rating max.	3.5 hp	3.5 hp
Engine speed (Power max.)	3,600 1/min	3,600 1/min
Operating Engine speed	2,800 1/min	2,800 1/min
Standard (Operating power)	SAE J1349	SAE J1349
Engine Manufacturer	Honda	Honda
Running time at 100%	2 hrs	2 hrs
Shipping weight	174.2 lb	165.3 lb

Model Variations

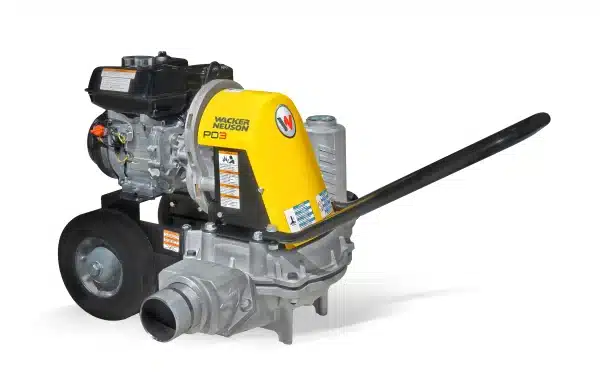

PDT3A

76 mm diaphragm pump powered by a Honda engine

Item Number
5100075507

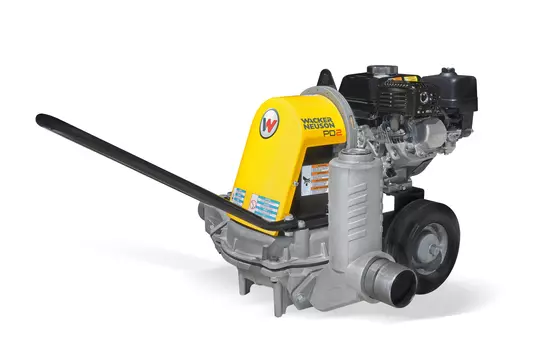

PDT2A

51 mm diaphragm pump powered by a Honda engine

Item Number
5100075510
