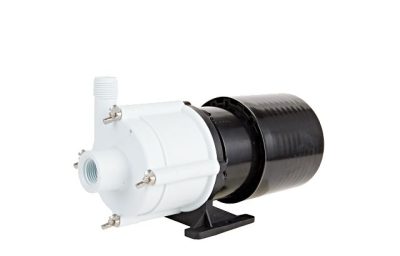

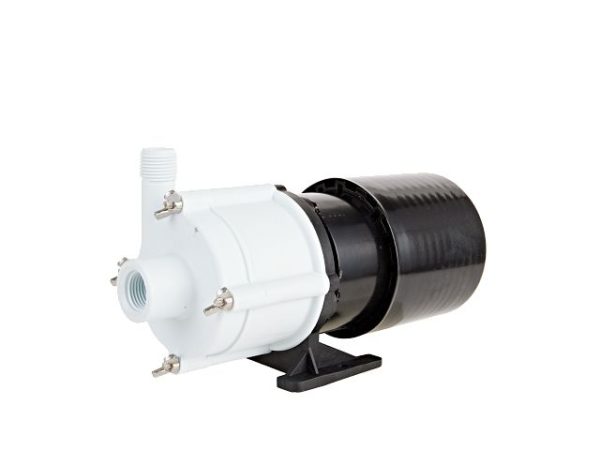

The TE-3-MD Series is a consistent, steady performer in the industrial segment for the circulation of mildly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other mildly corrosive chemicals and solutions. This pump is designed with a versatile TEFC motor to provide isolation from challenging environmental conditions.
Utilized in industrial applications, the Little Giant TE-3-MD Series includes a 1/20 horsepower TEFC (totally enclosed, fan-cooled) motor as to not permit outside air to freely circulate through the interior of the motor. This type of motor offers increased protection against weather, dirt, and moisture. The non-submersible pump delivers reliability and durability to withstand various environmental conditions.
| Capacity | 9.8 gpm @ 1′ |
| Shut Off | 16.3′ (4.9 m) |
| Max. Liquid Temp. | 150 °F (66 °C) |
| Discharge | 1/2″ MNPT (12.7 mm) |
| Impeller | Glass-filled polypropylene & Ceramagnet “A” (Barium Ferrite) |
| Electrical | 230 V, 50/60 Hz, 1.1/0.8 A |
| Head | GPM (LPM) |
| 1′ | 9.8 (37.1) |
| 3′ | 9.1 (34.4) |
| 6′ | 8.2 (31) |
| 9′ | 6.5 (24.6) |
| 15′ | 2.5 (9.5) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 581012 | TE-3-MD | 230 VAC | 9.8 gpm / 588 gph | 53.48 ft |
