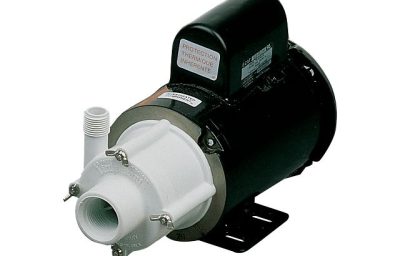

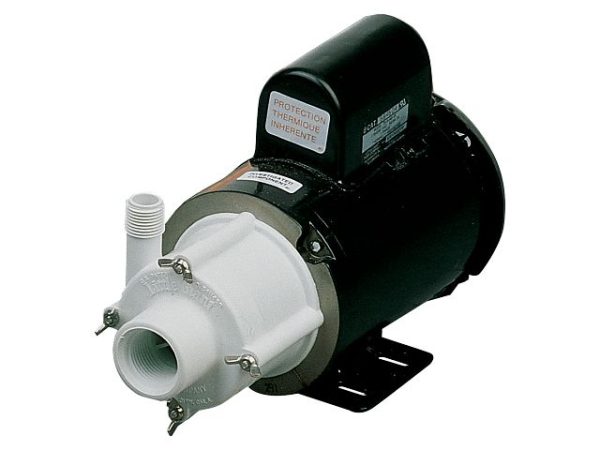

TE-5-MD-SC Series Magnetic Drive Pump

Part of Little Giant’s semi-corrosive pump series, the TE-5-MD-SC efficiently handles the recirculation of mildly corrosive solutions or solvents with a thermally protected, totally enclosed, split capacitor motor. The TE-5-MD-SC is capable of pumping 1200 gph at 1′ head.

Features & Benefits

1/8 hp TEFC PSC motor
Glass-filled polypropylene magnet housing
Glass-filled polypropylene volute
1.1 specific gravity
Nitrile O-ring
Ceramic thrust washers and shaft

Overview

Engineered for the safe handling of mildly corrosive fluids, TE-5-MD-SC Series pumps are constructed of a glass-filled polypropylene magnet housing, volute, and impeller for optimal corrosion resistance. Includes a 6′ power cord and is offered in either 115 or 230 volt options.

Click to rate this post!

[Total: 0 Average: 0]

Specifications

Capacity	1200 gph @ 1′
Shut Off	29.3′ (8.4 m)
Max. Liquid Temp.	150 °F (66 °C)
Discharge	1/2″ MNPT (12.7 mm)
Impeller	Glass-filled polypropylene
Electrical	115 V, 50/60 Hz, 2.3/3 A 230 V, 50/60 Hz, 1.3/1.4 A

Performance

115 or 230 V, 60 Hz

Head	GPH (LPH)
1′	1200 (4542.5)
3′	1152 (4360.8)
6′	1090 (4126.1)
9′	1020 (3861.1)
15′	858 (3247.9)

Order Information

TE-5-MD-SC Series Chemical Transfer Pump

Item	Model	Volts	Maximum Flow Rate – 60Hz	Shut-Off	Flow Rate At 1ft
584504	TE-5-MD-SC	115 VAC	20 gpm / 1200 gph	29.3 ft
