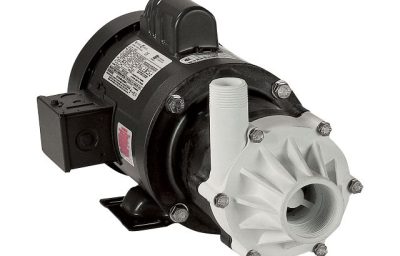

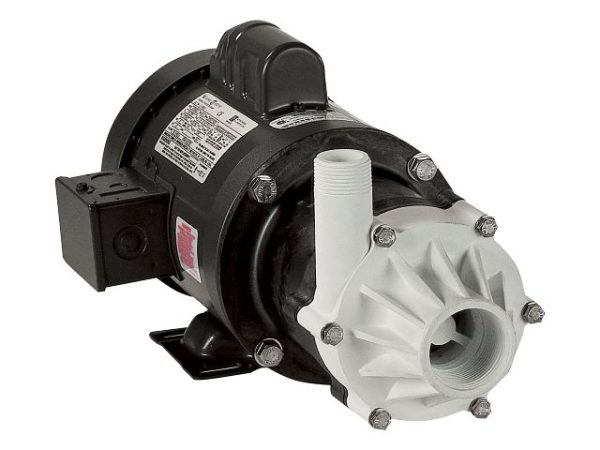

TE-7-MD-SC Series Magnetic Drive Pump

The Little Giant TE-7-MD-SC series features durable and reliable, seal-less magnetic drives for in-line, non-submersible use. Volute and impeller are glass-filled polypropylene for excellent chemical resistance on mildly corrosive solutions.

Features & Benefits

3/4 hp TEFC motor
Glass-filled polyphenylene sulfide backplate
Glass-filled polypropylene volute
1.1 specific gravity
Nitrile O-ring
Ceramic thrust washers and shaft

Overview

The TE-7-MD-SC is driven by a 3/4 horsepower totally enclosed, fan-cooled motor to power through mildly corrosive solutions. The pump’s glass-filled polypropylene volute, backplate, and impeller with carbon bushing provide maximum corrosive resistance against tough solvents and more. With a peak performance of 3180 gallons per hour at 1′ head, the TE-7-MD-SC provides reliability and high efficiency.

Click to rate this post!

[Total: 0 Average: 0]

Specifications

Capacity	3180 gph @ 1′
Shut Off	58.5′ (17.8 m)
Max. Liquid Temp.	150 °F (66 °C)
Discharge	1″ MNPT (25.4 mm)
Impeller	Glass-filled polypropylene w/ carbon bushing
Electrical	115 V, 50/60 Hz, 10.4/11.8 A 230 V, 50/60 Hz, 5.2/5.9 A

Performance

115 or 230 V, 60 Hz

Head	GPH (LPH)
1′	3180 (12,037.6)
10′	2800 (10,599.2)
25′	2400 (9085)
40′	1850 (7003)
50′	1300 (4921)

Order Information

TE-7-MD-SC Series Chemical Transfer Pump

Item	Model	Volts	Maximum Flow Rate – 60Hz	Shut-Off	Flow Rate At 1ft
587400	TE-7-MD-SC	110-240 VAC	53 gpm / 3180 gph	191.93 ft
