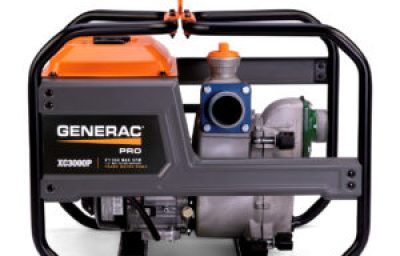

Heavy-Duty Fluid Transfer with the CH&E Generac Magnum Wet Prime Trash Pump PROXC3000P
The CH&E Generac Magnum Wet Prime Trash Pump PROXC3000P is a professional-grade pumping solution built for contractors, industrial operators, and municipal teams who need dependable performance when handling water mixed with solids, debris, and light trash. Powered by a robust engine and housed in a durable pump body, the PROXC3000P is engineered to deliver consistent, high-volume fluid transfer across construction dewatering, flood water removal, and demanding site water management applications.
Proven Wet Prime Performance for Uninterrupted Job Site Operations
The CH&E Generac Magnum Wet Prime Trash Pump PROXC3000P utilizes reliable wet prime technology that ensures straightforward startup and continuous pumping without the need for manual priming between cycles. Its solid-handling capability keeps the pump moving debris-laden water without frequent clogging or interruptions, while its rugged construction stands up to the wear and impact of tough job site conditions. Whether you are managing large-scale dewatering, emergency flood response, or routine industrial fluid handling, the PROXC3000P is built to deliver the output and reliability your operation demands.

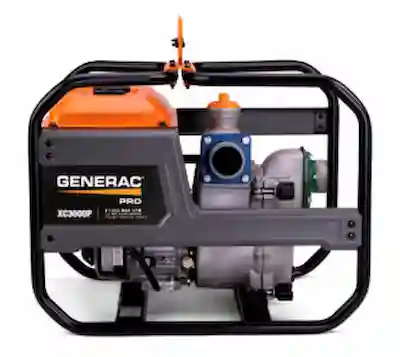

The Generac PRO XC3000P Trash Water Pump is designed from the ground up to take on tough commercial water removal applications. Specifically engineered to handle muddy, sandy, sediment filled water with solids up to 1.2” thick, the XC3000P is powered by a 265cc Generac G-Force engine that pumps up to 350 gallons per minute. With features such as a fully wrapped, heavy duty 11 gauge steel frame, steel lifting pocket, aluminum engraving plate and durable silicon carbide mechanical seal, the XC3000P is ideal for the toughest, jobsite based water removal applications.
Additional Features
- Generac G-Force 265cc OHC Engine – With low-oil shutdown protection
- Large 2.9 Gallon Steel Fuel Tank – With incorporated fuel gauge provides up to 4.3 hours of run time
- Steel Lifting Pocket – Designed for easier lifting and transportation on jobsites by crane or forklift
- Engraving Plate – Allows unit to be tagged /cataloged for use in contractor and rental fleets
- Color-coded Suction and Discharge ports – To ensure the correct hose connections. (Blue = Discharge; Green= Suction)
- Onboard Instructions – With icons of key touch points make this pump easy to use
QUICK REFERENCE GUIDEQUICK REFERENCE PARTS
| Engine Size |
Fuel |
Engine Part No. |
| 265cc |
GASOLINE |
10000047884 |
| Description |
Part No. |
Special Notes |
| Air Filter Element |
A0000605575 |
|
| Spark Plug |
10000006844 |
|
| Tool Kit |
10000025153 |
Not Shown |
CYLINDER HEAD
| Item |
Part No |
Description |
QTY |
| 1 |
N/A |
CRANKCASE |
2 |
| 2 |
10000024960 |
SEAL, STEM |
1 |
| 3 |
A0001018092 |
SEAL, OIL |
2 |
| 4 |
N/A |
BEARING, BALL |
2 |
| 5 |
10000025032 |
PIN, DOWEL |
2 |
| 6 |
A0001018094 |
BOLT, STUD (M8X1.25X32MM) |
2 |
| 7 |
A0001018097 |
BOLT, STUD (M6X27X107MM) |
2 |
| 8 |
10000024937 |
SEAL, OIL |
1 |
| 9 |
10000025014 |
PLUG, OIL DRAIN |
2 |
| 10 |
A0001018099 |
GASKET, OIL DRAIN |
2 |
| 11 |
N/A |
COVER, MAIN BEARING |
1 |
| 12 |
10000025030 |
GEAR, GOVERNOR ASSEMBLY |
1 |
| 13 |
A0001018100 |
SLEEVE, GOVERNOR |
1 |
| 14 |
A0001018101 |
FILL CAP, DIPSTICK |
2 |
| 15 |
10000025031 |
BOLT, FLANGED |
7 |
| 16 |
A0000969659 |
KIT, CYLINDER HEAD ASSEMBLY (INCLUDES ITEMS 6, 7, 9 & 10 ON PAGE 1;
INCLUDES ITEMS 8, 16, 17 & 18 ON PAGES 4 AND 5) |
1 |
| 17 |
A0001018103 |
GASKET, CYLINDER HEAD |
1 |
| 18 |
10000024927 |
FBOLT, FLANGED |
4 |
| 19 |
10000024961 |
BOLT, FLANGED |
1 |
| 20 |
10000024952 |
VALVE, COVER |
1 |
| 21 |
10000024980 |
GASKET, VALVE COVER |
1 |
| 22 |
10000024935 |
FBOLT, FLANGED |
4 |
PISTON CONNECTING ROD
| Item |
Part No |
Description |
QTY |
| 1 |
N/A |
CRANKSHAFT |
1 |
| 2 |
N/A |
NUT , FLANGE |
1 |
| 3 |
10000025040 |
KEY , WOODRUFF |
1 |
| 4 |
N/A |
ASSEMBLY , CONNECTING ROD |
1 |
| 5 |
N/A |
BOLT , FLANGE |
2 |
| 6 |
N/A |
PIN , PISTON |
1 |
| 7 |
N/A |
PISTON |
2 |
| 8 |
N/A |
RING SET , PISTON |
1 |
| 9 |
N/A |
CIRCLIP , PISTON PIN |
2 |
INTAKE & EXHAUST
| Item |
Part No |
Description |
QTY |
| 1 |
N/A |
CAMSHAFT ASSEMBLY |
1 |
| 2 |
10000025072 |
PIN, SHAFT |
1 |
| 3 |
10000025054 |
O_RING |
1 |
| 4 |
10000025130 |
VALVE SPRING |
2 |
| 5 |
10000025114 |
RETAINER, VALVE SPRING |
2 |
| 6 |
A0001036955 |
VALVE, INTAKE |
1 |
| 7 |
A0001036956 |
VALVE, EXHAUST |
1 |
| 8 |
10000025059 |
COLLET, VALVE |
4 |
| 9 |
N/A |
CHAIN, TIMING |
1 |
| 10 |
10000025140 |
TENSIONER |
1 |
| 11 |
10000025095 |
SPRING, TENSIONER |
1 |
| 12 |
10000025078 |
PIN, TENSIONER |
1 |
| 13 |
10000025150 |
GUIDE, CHAIN |
1 |
| 14 |
10000025049 |
PIN (ROCKER ARM ASSEMBLY) |
2 |
| 15 |
10000025120 |
CLIP , PIN |
1 |
| 16 |
A0001036957 |
ASSEMBLY, ROCKER ARM (INTAKE) |
1 |
| 17 |
A0001036958 |
ASSEMBLY, ROCKER ARM (EXHAUST) |
4 |
| 18 |
10000024935 |
BOLT, FLANGED |
1 |
| 19 |
10000034711 |
GASKET , MUFFLER |
1 |
| 20 |
A0001036962 |
NUT , FLANGED |
2 |
| 21 |
A0001036964 |
INSULATOR ASSEMBLY |
1 |
| 22 |
A0001040140 |
GASKET 2,CARBURETOR |
1 |
| 23 |
A0001040141 |
GASKET 1,CARBURETOR |
1 |
| 24 |
10000025122 |
NUT, FLANGED |
2 |
| 25 |
10000025117 |
BOLT, FLANGED |
1 |
| 26 |
A0001040142 |
BRACKET,AIR CLEARNER |
1 |
| 27 |
A0001040145 |
PIPE , BREATHER |
1 |
| 28 |
10000025160 |
SPONGE , PROTECTOR(BREATHER PIPE) |
1 |
| 29 |
A0001040143 |
CARBURETOR ASSEMBLY |
1 |
AIR CLEANER ASSEMBLY
| Item |
Part No |
Description |
QTY |
| 1 |
A0001040152 |
ASSEMBLY, AIR CLEANER |
1 |
| 2 |
A0001040153 |
GASKET |
1 |
| 3 |
A0001040154 |
ELEMENT, AIR FILTER |
1 |
GOVERNOR ASSEMBLY
| Item |
Part No |
Description |
QTY |
| 1 |
ORDER #2 |
LEVER, GOVERNOR |
1 |
| 2 |
A0001040157 |
ASSEMBLY, GOVERNOR LEVER |
1 |
| 3 |
10000025141 |
SHAFT, GOVERNOR |
1 |
| 4 |
A0001040159 |
ROD, GOVERNOR SWING |
1 |
| 5 |
10000025109 |
SPRING, SWING ROD |
1 |
| 6 |
10000025156 |
CLIP, GOVERNOR SHAFT |
1 |
| 7 |
10000025170 |
ASSEMBLY, BOLT W/WASHER |
1 |
| 8 |
10000025171 |
NUT, SQUARE |
1 |
| 9 |
10000025123 |
SPRING, GOVERNOR |
1 |
| 10 |
10000025163 |
ASSEMBLY, SPEED CONTROL |
1 |
| 11 |
10000024935 |
BOLT, FLANGED |
1 |
STARTING/COOLING SYSTEM
| Item |
Part No |
Description |
QTY |
| 1 |
A0001040170 |
HOUSING, BLOWER |
1 |
| 2 |
10000025137 |
BOLT, FLANGED |
1 |
| 3 |
A0001040171 |
BAFFLE 1 (CASE) |
1 |
| 4 |
A0001040360 |
BAFFLE 2 (HEAD) |
1 |
| 5 |
A0001040361 |
BOLT |
1 |
| 6 |
10000024935 |
BOLT, FLANGED |
1 |
| 7 |
A0001040366 |
BOLT & WASHER |
4 |
| 8 |
A0001040368 |
ASSEMBLY, RECOIL STARTER |
1 |
IGNITION COIL ASSEMBLY
| Item |
Part No |
Description |
QTY |
| 1 |
A0001040374 |
FLYWHEEL ASSEMBLY |
1 |
| 2 |
A0001040375 |
IGNITION COIL |
1 |
| 3 |
A0001040376 |
ASSEMBLY, BOLT AND WASHER |
2 |
| 4 |
10000025192 |
WIRE 2 |
1 |
| 5 |
10000025730 |
SPARK PLUG |
1 |
| 6 |
10000025200 |
CAP, SPARK PLUG |
|
IGNITION 2
| Item |
Part No |
Description |
QTY |
| 1 |
A0001040379 |
SENSOR, OIL (W/GASKET) |
1 |
| 2 |
A0001040382 |
FLOAT, C/U CP 3 (ISOLATOR) |
1 |
| 3 |
10000025185 |
PLATE, SHIELD |
1 |
| 4 |
10000025211 |
BOLT, FLANGED (M6X1.0X13DX14MM) |
2 |
| 5 |
10000034659 |
BOLT, FLANGED (M6X1.0X14DX8MM) |
1 |
| 6 |
A0001040389 |
CLAMP, WIRE |
1 |
| 7 |
A0001040393 |
BOLT, TAPPING |
1 |
