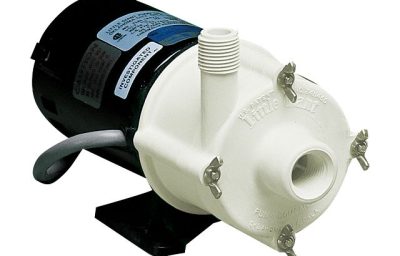

Little Giant’s 2-MD-SC series features leakproof, seal-less magnetic drives designed for in-line, non-submersible use. This pump is suitable for moderately corrosive material, including acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other moderately corrosive chemicals and solutions compatible with the pump’s construction materials.
The 2-MD-SC Series is available in 1/25 or 1/30 horsepower options dependent upon your needs. Its internal design includes a volute, magnet housing, and impeller constructed of glass-filled polypropylene for increased chemical resistance. This pump can be used in commercial and industrial settings, in a workshop, or in residential homes.
| Capacity | 510 gph @ 1′ |
| Shut Off | 14.6′ (4.5 m) |
| Max. Liquid Temp. | 150 °F (66 °C) |
| Discharge | 1/2″ MNPT (12.7 mm) |
| Impeller | Glass-filled polypropylene |
| Electrical | 115 V, 60 Hz, 1.43 A 230 V, 50/60 Hz, 0.65/0.64 A |
| Head | GPH (LPH) |
| 1′ | 510 (1930.6) |
| 3′ | 465 (1760.2) |
| 6′ | 410 (1552) |
| 9′ | 330 (1249.2) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 580503 | 2-MD-SC | 115 VAC | 8.5 gpm / 510 gph | 14.6 ft | |
| 580513 | 2-MD-SC | 230 VAC | 8.5 gpm / 510 gph | 14.6 ft |
