CH&E Magnum Diaphragm Pumps. Parts break down and Repair Parts for 5400 – 6400
Models: 5400 – 6400 Series 2” Diaphragm Pumps
Models: 5401, 5402, 5403, 5405, 6401, 6402, 6403, 6405 2” Diaphragm Pumps
Exploded Parts
5400-6400 Series 2” Diaphragm Pumps, Hydraulic Motor Powered and Without Power Close Coupled
|
Ref. No. |
5400 Series Aluminum |
6400 Series Cast Iron |
Qty. |
Description |
|---|---|---|---|---|
|
1 |
P3354-A1 |
P3354-C2 |
1 |
2” Suction Connection |
|
2 |
P3322-P3323 |
P3322-P3323 |
1 |
Plug with Gasket Assembly |
|
4 |
P3015 |
P3015 |
2 |
2” Nipple |
|
5 |
A010.037.0150 |
A010.037.0150 |
4 |
3/8”-16 x 1 1/2″ Hex Screw & L.W. |
|
6 |
18-051 |
18-051 |
2 |
1/8” x 3/8” Spring Pin |
|
7 |
SA-10003N |
SA-10003N |
2 |
2” Flap Valve Assembly |
|
11 |
P3351-A1 |
P3351-C2 |
1 |
Water Box |
|
12 |
P3355-A1 |
P3355-C2 |
1 |
2” Discharge Connection |
|
13 |
P3458 |
P3458 |
3 |
3/8”-16 x 2” Stud & H.N. |
|
14 |
P3353-A1 |
P3353-C2 |
1 |
Diaphragm Bottom |
|
15 |
P2331 |
P2331 |
1 |
#2E Diaphragm |
|
16 |
A010.050.0225 |
A010.050.0225 |
4 |
1/2″-13 x 2 1/4″ Hex Screw & H.N. – Wheel Mtg. |
|
2 |
1/2″-13 x 2 1/4″ Hex Screw & H.N. – Cage & Skid Mtg. |
|||
|
16A |
A010.050.0250 |
A010.050.0250 |
2 |
1/2″-13 x 2 1/2″ Hex Screw & H.N. – Skid Mtg. |
|
A010.050.0275 |
A010.050.0275 |
2 |
1/2″-13 x 2 31/4″ Hex Screw, H.N. & B.W. – Cage Mtg. |
|
|
17 |
P3350 |
P3350 |
1 |
Pump Frame |
|
18 |
EF410.062 |
EF410.062 |
1 |
5/8”-18UNF Jam Lock Nut |
|
19 |
A010.050.0175 |
A010.050.0175 |
4 |
1/2″-13 x 1 3/4″ Hex Screw & L.W. – Cage & Skid Mtg. |
|
2 |
1/2″-13 x 1 3/4″ Hex Screw & L.W. – Wheel Mtg. |
|||
|
19A |
A010.050.0250 |
A010.050.0250 |
2 |
1/2″-13 x 2 1/2″ Hex Screw & L.W. – Wheel Mtg. |
|
20 |
DF200.R19.0050Z |
DF200.R19.0050Z |
6 |
#10-32 x 1/2″ Flat Phillips Head Screw |
|
21 |
P3360 |
P3360 |
2 |
Retaining Washer |
|
22 |
P3352 |
P3352 |
1 |
Connecting Rod |
|
24 |
P5582 |
P5582 |
1 |
Connecting Rod Bearing w/W33-3/16 Grease Fitting |
|
25 |
W70-807 |
W70-807 |
2 |
Woodruff Key |
|
26 |
P5584 |
P5584 |
1 |
Crank Arm |
|
27 |
W35-C12329CRW1 |
W35-C12329CRW1 |
1 |
Lip Seal |
|
28 |
A010.050.0150 |
A010.050.0150 |
1 |
1/2″-13 x 1 1/2″ Hex Screw |
|
29 |
BC090.C031.031 |
BC090.C031.031 |
1 |
5/16”-18 x 5/16” Socket Set Screw |
|
30 |
R454A |
R454A |
1 |
3/8” Vented Pipe Plug |
|
31 |
P4850P |
P4850P |
1 |
Case |
|
32 |
P4858 |
P4858 |
1 |
Gasket |
|
33 |
W16-6307 |
W16-6307 |
1 |
Ball Bearing |
|
34 |
P4853 |
P4853 |
1 |
Gear Shaft |
|
35 |
P5058 |
P5058 |
1 |
79 Tooth Gear |
|
36 |
W16-6304 |
W16-6304 |
2 |
Ball Bearing |
|
37 |
P4852 |
P4852 |
1 |
11 Tooth Pinion |
|
38 |
P3417 |
P3417 |
1 |
85 Tooth Internal Gear |
|
39 |
W16-6302 |
W16-6302 |
1 |
Ball Bearing |
|
40 |
H705.025.0075 |
H705.025.0075 |
2 |
1/4″ x 3/4″ Dowel Pin |
|
41 |
P4851P |
P4851P |
1 |
Cover |
|
42 |
P4945 |
P4945 |
1 |
Lifting Hook |
|
43 |
A010.025.0125 |
A010.025.0125 |
2 |
1/4″-20 x 1 1/4″ Hex Screw, L.W. & F.W. |
|
44 |
W19-TB188 |
W19-TB188 |
1 |
Needle Bearing |
|
45 SEE TABLE |
P4854 |
P4854 |
1 |
14 Tooth Pinion (3/4” Bore x 3/16” K.W.) |
|
P4855 |
P4855 |
14 Tooth Pinion (5/8” Bore x 3/16” K.W.) |
||
|
P4855A |
P4855A |
14 Tooth Pinion (5/8” Bore x 5/32” K.W.) |
||
|
46 |
W63-5100-118 |
W63-5100-118 |
1 |
Retaining Ring |
|
47 |
W16-6006LLU |
W16-6006LLU |
1 |
Ball Bearing |
|
48 |
A010.025.0100 |
A010.025.0100 |
9 |
1/4″-20 x 1″ Hex Screw & L.W. |
| 49 | 0002-1603 | 0002-1603 | 2 | 1/8” Square Head Pipe Plug |
| 50 | W35-T11141SM | W35-T11141SM | 1 | Lip Seal |
| 51 | A010.037.0100 | A010.037.0100 | 4 | 3/8”-16 x 1” Hex Screw & L.W. |
| 52 | P4868 | P4868 | 1 | Hydraulic Motor Adapter |
| 53 | BC070.031.0100 | BC070.031.0100 | 4 | 5/16”-18 x 1” Socket Screw & LKI.W. |
| 54 | P5601 | P5601 | 1 | 3/16” Sq x 1” Key |
| W69-5/32X5/32X1 | W69-5/32X5/32X1 | 5/32” Sq x 1” Key | ||
| 58 | P3364 | P3364 | 1 | 2” NPT Strainer |
| 63 | P3691 | P3691 | 1 | Crank Arm Guard |
| 64 | DC290.X19.050FZ | DC290.X19.050FZ | 2 | #10-24 x 1/2″ Washer Head Self Tap Screw |
| Pump Model | Item 45 (Pinion) |
|---|---|
| 5401-6401
5402-6402 |
P4854 3/4″ Bore x 3/16” Keyway |
| 5403-6403 | P4855 5/8″ Bore x 3/16” Keyway |
| 5405-6405 | P4855A 5/8″ Bore x 5/32” Keyway |

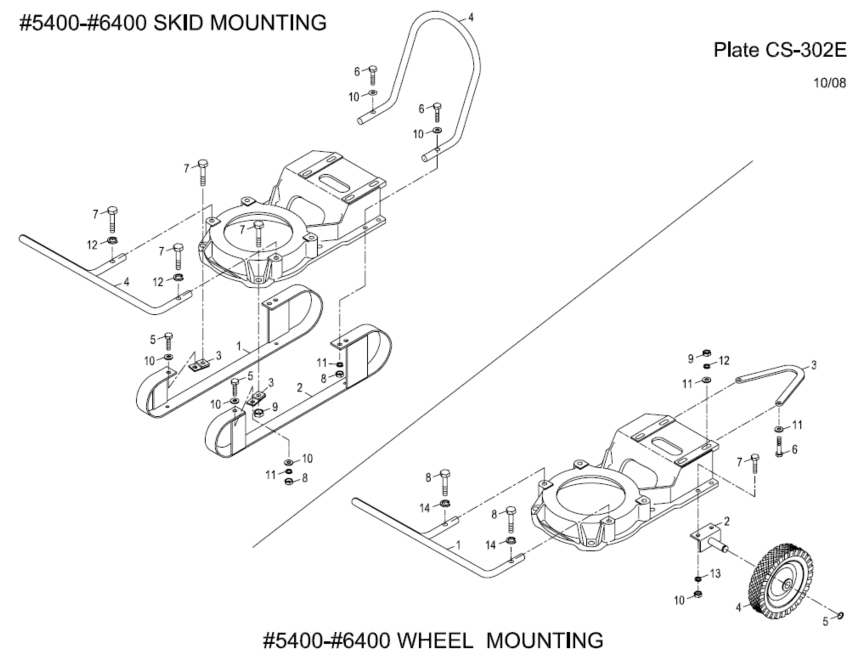

5400-6400 Series Wheel Mounting Close Coupled
| Ref. No. | 5400Series Aluminum | 6400 Series Cast Iron | Qty. | Description |
|---|---|---|---|---|
| 1 | P3320A | P3320A | 1 | Towing Pole |
| 2 | P4779 | P4779 | 2 | Stub Axle |
| 3 | P3327 | P3327 | 1 | Bumper |
| P5335 | P5335 | Bumper (5457-6457, 5458-6458) | ||
| P5750 | P5750 | Bumper (5452-6452, 5453-6453) | ||
| 4 | W27-4A | W27-4A | 2 | Wheel 8” x 1.75” Semi-Pneumatic |
| 5 | W63-5133-75 | W63-5133-75 | 2 | Retaining Ring |
| 6 | A010.031.0150 | A010.031.0150 | 2 | 5/16”-18 x 1 1/2” Hex Screw, H.N., L.W. & F.W. |
| A010.031.0225 | A010.031.0225 | 5/16”-18 x 2 1/4” Hex Screw, H.N., L.W. & F.W.
(5433-35-36-37-38-39-57, 6433-35-36-37-38-39-57) |
||
| 7 | A010.037.0125 | A010.037.0125 | 4 | 3/8”-16 x 1 1/4” Hex Screw, H.N. & L.W. |
| 8 | A010.050.0250 | A010.050.0250 | 2 | 1/2″-13 x 2 1/2″ Hex Screw & L.W. |
| 9 | EC400.031 | EC400.031 | 2 | 5/16”-18 Hex Nut |
| 10 | EC400.037 | EC400.037 | 4 | 3/8”-16 Hex Nut |
| 11 | F601.031Y | F601.031Y | 4 | 5/16” Flat Washer |
| 12 | F620.031 | F620.031 | 2 | 5/16”-18 Lock Washer |
| 13 | F620.037 | F620.037 | 2 | 3/8”-16 Lock Washer |
| 14 | F620.050 | F620.050 | 2 | 1/2”-13 Lock Washer |
| 15 | P2676 | P2676 | As Req’d | Shim, Sl 25/64” X 7/8” X .015” Stl (Not Shown) |
5400-6400 Series Skid Mounting Close Coupled
| Ref. No. | 5400Series Aluminum | 6400 Series Cast Iron | Qty. | Description |
|---|---|---|---|---|
| 1 | P3324L | P3324L | 1 | Skid Frame Left |
| 2 | P3324R | P3324R | 1 | Skid Frame Right |
| 3 | P3363 | P3363 | 2 | Skid Extension |
| 4 | P3320A | P3320A | 2 | Towing Pole |
| 5 | A010.037.0100 | A010.037.0100 | 2 | 3/8”-16 x 1” Hex Screw, H.N., L.W. & (2) F.W. |
| 6 | A010.037.0225 | A010.037.0225 | 2 | 3/8”-16 x 2 1/4” Hex Screw, H.N., L.W. & F.W. |
| 7 | A010.050.0250 | A010.050.0250 | 2 | 1/2”-13 x 2 1/2” Hex Screw & H.N. |
| 2 | 1/2”-13 x 2 1/2” Hex Screw & L.W. | |||
| 8 | EC400.037 | EC400.037 | 4 | 3/8”-16 Hex Nut |
| 9 | EC400.050 | EC400.050 | 2 | 1/2”-13 Hex Nut |
| 10 | F601.037Y | F601.037Y | 6 | 3/8” Flat Washer |
| 11 | F620.037 | F620.037 | 4 | 3/8” Lock Washer |
| 12 | F620.050 | F620.050 | 2 | 1/2” Lock Washer |
|
Flap Valve Assemblies Available: |
|---|
| (Requires two per pump)
SA-10003B – Buna-N SA-10003N – Neoprene SA-10003V – Viton SA-10004N – Neoprene with Cloth Insert |
|
Diaphragm Pump Rebuild Kits Available: |
|---|
| (Diaphragm and Flapper Assemblies including hardware)
W103-020.0T – TPE W103-020.0R – Rubber W103-020.0N – Neoprene W103-020.0B – Buna-N W103-020.0V – Viton |
