CH&E 5400 Series Aluminum 2″ Diaphragm Water Pump & Repair Parts
Efficient and Portable with the CH&E 5400 Series Aluminum 2″ Diaphragm Water Pump & Repair Parts
The CH&E 5400 Series features a lightweight aluminum construction paired with a 2″ diaphragm design, making it one of the most portable and practical pump options for contractors and industrial operators. As a self-priming, air-operated pump, it handles clean water, muddy water, and light slurries with consistent reliability, serving a wide range of applications including construction dewatering, agricultural water transfer, and general industrial fluid handling.
Keep Your CH&E 5400 Running with Quality Repair Parts
Extending the life of your CH&E 5400 pump is straightforward with genuine repair parts designed to match original manufacturer specifications. From diaphragms and valve assemblies to gaskets and seals, having the right components on hand ensures quick turnaround during servicing, minimizes operational downtime, and keeps your aluminum diaphragm water pump delivering dependable performance job after job.
We are repair parts specialists for all Magnum Power Products, CH&E pumps and other diaphragm pumps. The Magnum Power Products Mud Hog MCP 5437 & CH&E 5400 series diaphragm pumps are easy to use with a simple/low maintenance design which can run dry indefinitely without damage and automatically re-primes when seepage reappears.
Ideal for seepage dewatering, cleaning septic tanks , pumping industrial waste and marine tanks , small wellpoint systems and dewatering in sandy , muddy or trash filled waters.

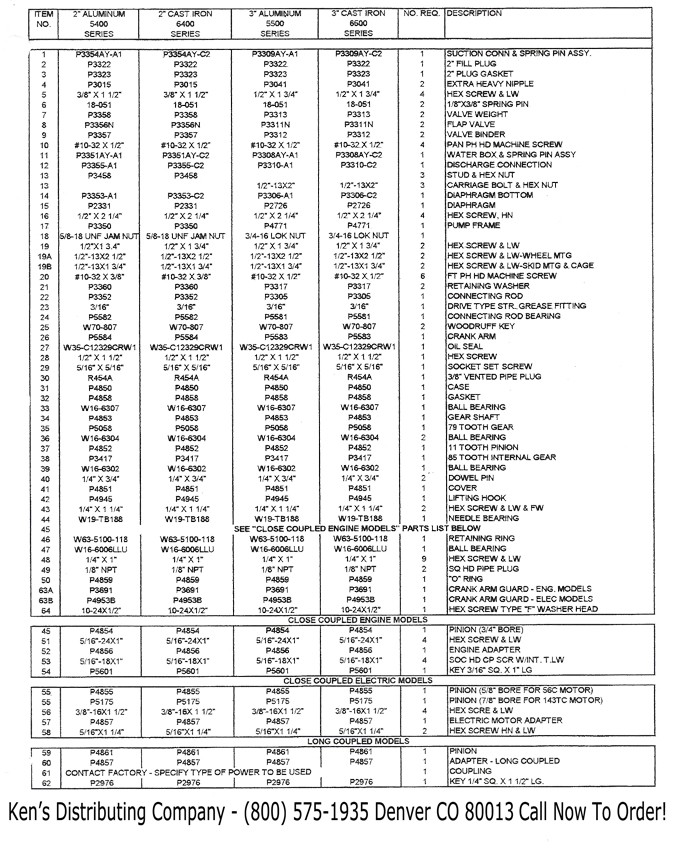

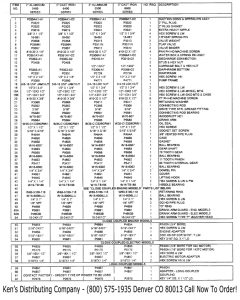

CH&E Diaphragm Pump 5411, CH&E 5437, CH&E 5438,CH& E 5515 Repair Parts and Magnum Power Products Repair Parts and pumps Mud Hog MCP 5437, Mud Hog MCP 5438, Mud Hog MCP 5411-1, Mud Hog MCP 5411-3

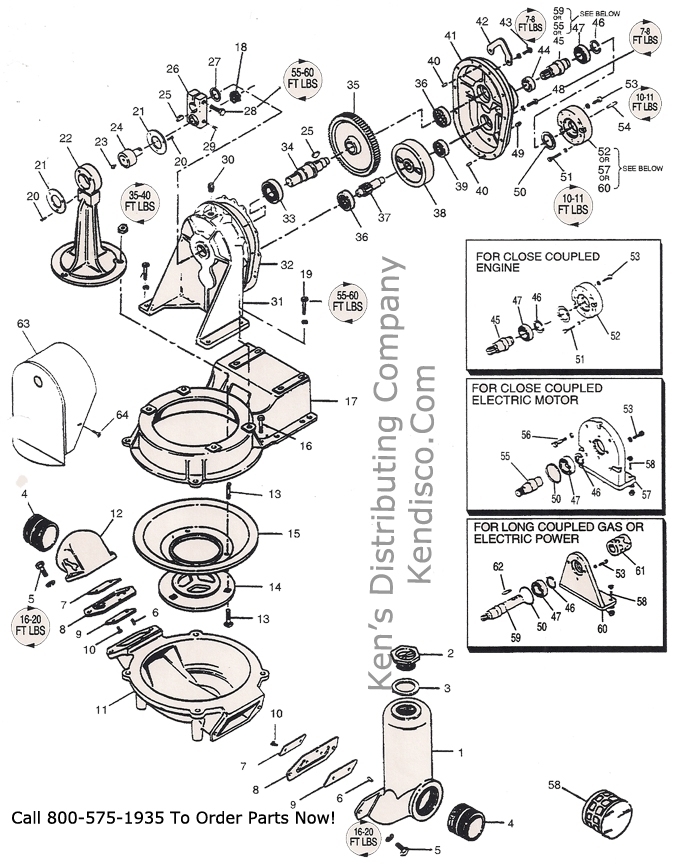

CH&E Diaphragm Water Pump 6400 Series Suction Connection & Spring Assembly P3354AY-C2
CH&E Diaphragm Water Pump 6400 Series Suction Connection & Spring Assembly P3354AY-A1
CH&E Diaphragm Water Pump 6400 Series Valve Weight P3358
CH&E Diaphragm Water Pump 6400 Series Flapper Weight P3358
CH&E Diaphragm Water Pump 6400 Series Flapper P3311N Neophrene
CH&E Diaphragm Water Pump 6400 Series Flapper P3311B Buna
CH&E Diaphragm Water Pump 6400 Series Valve Binder P3357
CH&E Diaphragm Water Pump 6400 Series Flapper Weight P3357
CH&E Diaphragm Water Pump 6400 Series Water Box & Spring Pin Assembly P3351AY-A1 Aluminum
CH&E Diaphragm Water Pump 6400 Series Water Box & Spring Pin Assembly P3351AY-C2 Cast Iron
CH&E Diaphragm Water Pump 6400 Series Discharge Connection P3310-A1 Aluminum
CH&E Diaphragm Water Pump 6400 Series Daiphragm Bottom P3353-A1 Aluminum
CH&E Diaphragm Water Pump 6400 Series Daiphragm Bottom P3353-C2 Cast Iron
CH&E Diaphragm Water Pump 6400 Series Diaphragm P2231N Neophrene
CH&E Diaphragm Water Pump 6400 Series Diaphragm P2331B Buna
CH&E Diaphragm Water Pump 6400 Series Diaphragm P2231TPE TPE
CH&E Diaphragm Water Pump 6400 Series Diaphragm P2231R Rubber
CH&E Diaphragm Water Pump 6400 Series Diaphragm P2231V Viton
CH&E Diaphragm Water Pump 6400 Series Pump Frame P3350
CH&E Diaphragm Water Pump 6400 Series Lock Nut 5/8-18 UNF Jam Nut
CH&E Diaphragm Water Pump 6400 Series Retaining Washer P3360
CH&E Diaphragm Water Pump 6400 Series Connecting Rod P3352
CH&E Diaphragm Water Pump 6400 Series Connecting Rod Bearing P5582
CH&E Diaphragm Water Pump 6400 Series Woodruff Key W70-807
CH&E Diaphragm Water Pump 6400 Series Crank Arm P5584
CH&E Diaphragm Water Pump 6400 Series Oil Seal W35-C12329CRW1
CH&E Diaphragm Water Pump 6400 Series Case Gasket P4858
CH&E Diaphragm Water Pump 6400 Series Case P4850
CH&E Diaphragm Water Pump 6400 Series Ball Bearing W16-6307
CH&E Diaphragm Water Pump 6400 Series Gear Shaft P4853
CH&E Diaphragm Water Pump 6400 Series 79 Tooth Gear P5058
CH&E Diaphragm Water Pump 6400 Series Ball Bearing W16-6304
CH&E Diaphragm Water Pump 6400 Series 11 Tooth Pinion P4852
CH&E Diaphragm Water Pump 6400 Series 85 Tooth Internal Gear P3417
CH&E Diaphragm Water Pump 6400 Series Ball Bearing W16-6302
CH&E Diaphragm Water Pump 6400 Series Dowel Pin 1/4 x 3/4″
CH&E Diaphragm Water Pump 6400 Series Cover P4851
CH&E Diaphragm Water Pump 6400 Series Needle Bearing W19-TB188
CH&E Diaphragm Water Pump 6400 Series Retaing Ring W63-5100-118
CH&E Diaphragm Water Pump 6400 Series Ball Bearing W16-6006LLU
CH&E Diaphragm Water Pump 6400 Series O-Ring P4859
CH&E Diaphragm Water Pump 6400 Series Crank Arm Guard P3691
CH&E Diaphragm Water Pump 6400 Series Crank Arm Guard P4953B
CH&E Diaphragm Water Pump 6400 Series Pinion P4854
CH&E Diaphragm Water Pump 6400 Series Engine Adapter P4856
CH&E Diaphragm Water Pump 6400 Series Key P5601
CH&E Diaphragm Water Pump 6400 Series Pinion P4855
CH&E Diaphragm Water Pump 6400 Series Pinion P5175
CH&E Diaphragm Water Pump 6400 Series Electric Motor Adapter P4857
CH&E Diaphragm Water Pump 6400 Series Pinion P4861
CH&E Diaphragm Water Pump 6400 Series Adapter P4857
