CH&E Diaphragm Water Pump 5500 Series Aluminum 3″ Diaphragm Water Pump & Repair Parts

The Magnum Power Products Mud Hog MCP 5515 MCP 5537, MCP 5538 & CH&E 5500 series and 6500 Series diaphragm pumps are easy to use with a simple/low maintenance design which can run dry indefinitely without damage and automatically re-primes when seepage reappears.

Ideal for seepage dewatering, cleaning septic tanks, pumping industrial waste and marine tanks, small wellpoint systems and dewatering in sandy, muddy or trash filled waters.

CH&E Diaphragm Water Pump 5515 Series Repair Parts
CH&E Diaphragm Water Pump 6500 Series Repair Parts
Magnum Power Products Mud Hog Diaphragm Water Pump MCP 5515 Repair Parts
Magnum Power Products Mud Hog Diaphragm Water Pump MCP 5537 Repair Parts
Magnum Power Products Mud Hog Diaphragm Water Pump MCP 5538 Repair Parts

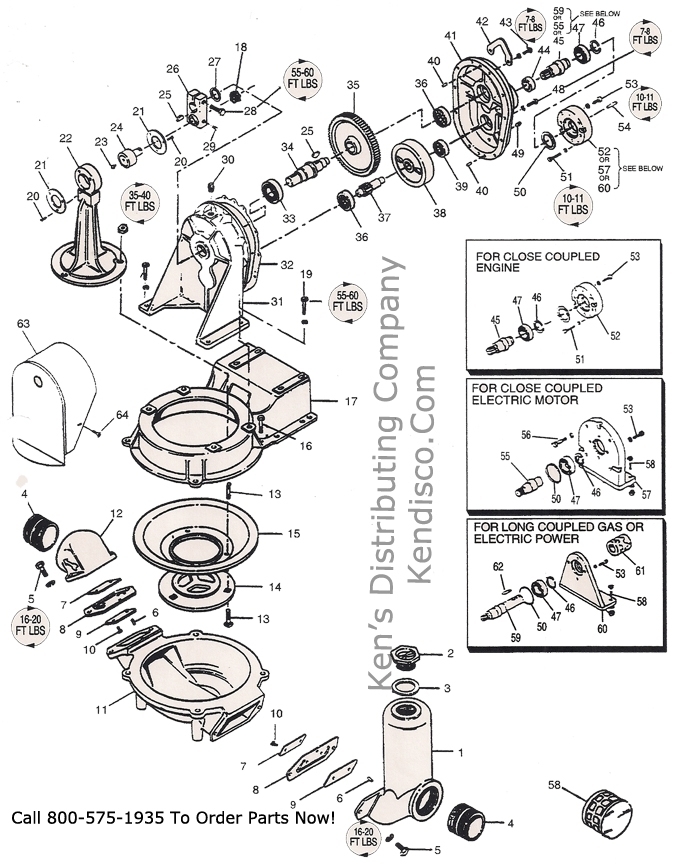

CHE Pump Parts Repair 17

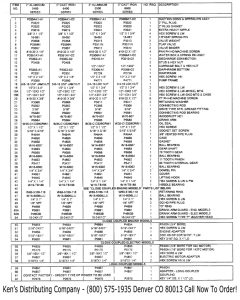

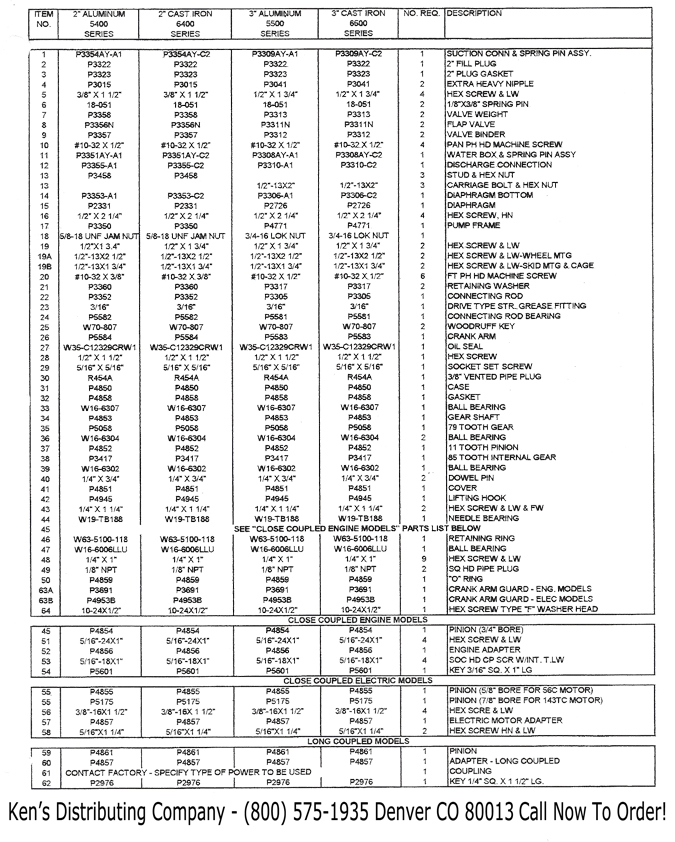

CHE Pump Parts Repair 22
CH&E Diaphragm Water Pump 5500 Series Suction Connection & Spring Assembly P3309AY-C2

CH&E Diaphragm Water Pump 5500 Series Valve Weight P3313

CH&E Diaphragm Water Pump 5500 Series Flapper Weight P3313

CH&E Diaphragm Water Pump 5500 Series Flapper P3311N Neophrene

CH&E Diaphragm Water Pump 5500 Series Flapper P3311B Buna

CH&E Diaphragm Water Pump 5500 Series Valve Binder P3312

CH&E Diaphragm Water Pump 5500 Series Flapper Weight P3312

CH&E Diaphragm Water Pump 5500 Series Water Box & Spring Pin Assembly P3308AY-A1 Aluminum

CH&E Diaphragm Water Pump 5500 Series Discharge Connection P3310-A1 Aluminum

CH&E Diaphragm Water Pump 5500 Series Daiphragm Bottom P3306-A1 Aluminum

CH&E Diaphragm Water Pump 5500 Series Diaphragm P2726N Neophrene

CH&E Diaphragm Water Pump 5500 Series Diaphragm P2726B Buna

CH&E Diaphragm Water Pump 5500 Series Diaphragm P2726TPE TPE

CH&E Diaphragm Water Pump 5500 Series Diaphragm P2726R Rubber

CH&E Diaphragm Water Pump 5500 Series Diaphragm P2726V Viton

CH&E Diaphragm Water Pump 5500 Series Pump Frame P4771

CH&E Diaphragm Water Pump 5500 Series Lock Nut 3/4-16 LOK Nut

CH&E Diaphragm Water Pump 5500 Series Retaining Washer P3317

CH&E Diaphragm Water Pump 5500 Series Connecting Rod P3305

CH&E Diaphragm Water Pump 5500 Series Connecting Rod Bearing P5581

CH&E Diaphragm Water Pump 5500 Series Woodruff Key W70-807

CH&E Diaphragm Water Pump 5500 Series Crank Arm P5583

CH&E Diaphragm Water Pump 5500 Series Oil Seal W35-C12329CRW1

CH&E Diaphragm Water Pump 5500 Series Case P4850

CH&E Diaphragm Water Pump 5500 Series P4858

CH&E Diaphragm Water Pump 5500 Series Ball Bearing W16-6307

CH&E Diaphragm Water Pump 5500 Series Gear Shaft P4853

CH&E Diaphragm Water Pump 5500 Series 79 Tooth Gear P5058

CH&E Diaphragm Water Pump 5500 Series Ball Bearing W16-6304

CH&E Diaphragm Water Pump 5500 Series 11 Tooth Pinion P4852

CH&E Diaphragm Water Pump 5500 Series 85 Tooth Internal Gear P3417

CH&E Diaphragm Water Pump 5500 Series Ball Bearing W16-6302

CH&E Diaphragm Water Pump 5500 Series Dowel Pin 1/4 x 3/4″

CH&E Diaphragm Water Pump 5500 Series Cover P4851

CH&E Diaphragm Water Pump 5500 Series Needle Bearing W19-TB188

CH&E Diaphragm Water Pump 5500 Series Retaing Ring W63-5100-118

CH&E Diaphragm Water Pump 5500 Series Ball Bearing W16-6006LLU

CH&E Diaphragm Water Pump 5500 Series O-Ring P4859

CH&E Diaphragm Water Pump 5500 Series Crank Arm Guard P3691

CH&E Diaphragm Water Pump 5500 Series Crank Arm Guard P4953B

CH&E Diaphragm Water Pump 5500 Series Pinion P4854

CH&E Diaphragm Water Pump 5500 Series Engine Adapter P4856

CH&E Diaphragm Water Pump 5500 Series Key P5601

CH&E Diaphragm Water Pump 5500 Series Pinion P4855

CH&E Diaphragm Water Pump 5500 Series Pinion P5175

CH&E Diaphragm Water Pump 5500 Series Electric Motor Adapter P4857

CH&E Diaphragm Water Pump 5500 Series Pinion P4861

CH&E Diaphragm Water Pump 5500 Series Adapter P4857
