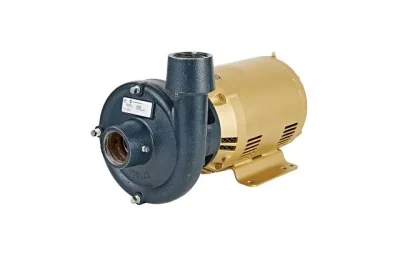

Franklin Electric FAC Series Close-Coupled Centrifugal Pump

Click to rate this post!

[Total: 2 Average: 5]

What Is the Franklin Electric FAC Series Close Coupled Centrifugal Pump?

The Franklin Electric FAC Series Close Coupled Centrifugal Pump is a versatile and durable centrifugal pump designed for a wide range of commercial, industrial, and general service water pumping applications. Available at Ken’s Distributing, the FAC Series is built with a cast iron volute, an enclosed stainless steel impeller, and a carbon and ceramic mechanical seal with FKM elastomers, making it one of the most application-flexible close coupled pumps in the Franklin Electric lineup.

What makes the Franklin Electric FAC Series Close Coupled Centrifugal Pump particularly versatile is its high maximum operating temperature of 212°F (100°C), which allows it to handle hot water applications that most standard centrifugal pumps cannot. Combined with 3600 RPM motor speed, vertical or horizontal mounting capability, and the choice of ODP or TEFC motor enclosures, the FAC Series adapts easily to a broad range of system configurations and environments.

Kendisco carries the full Franklin Electric FAC Series lineup in 3 HP and 5 HP models, available in single-phase, three-phase, and 575 VAC three-phase configurations. Whether you need a pump for water circulation, pressure boosting, liquid transfer, or jockey pump service, the FAC Series delivers efficient and reliable performance that holds up over the long term.

What Makes the FAC Series a Versatile Choice for General Service Pumping?

The Franklin Electric FAC Series Close Coupled Centrifugal Pump is built for versatility across a wide range of pumping tasks. Here is what sets it apart from other close coupled centrifugal pump options in the Franklin Electric lineup:

High Temperature Capability: With a maximum operating temperature of 212°F (100°C), the FAC Series can handle hot water circulation, boiler feed, and heating system applications that most standard pumps are not rated for. This is significantly higher than the 120°F or 140°F limits found on many jet pumps and other centrifugal models.
Wide Voltage and Phase Range: Available in single-phase (115/230 VAC), three-phase (230/460 VAC), and 575 VAC three-phase configurations, the FAC Series can be installed in virtually any electrical environment from residential to heavy commercial.
ODP and TEFC Motor Options: Every HP model is available with both Open Drip Proof and Totally Enclosed Fan Cooled motor enclosures, letting you match the pump to indoor clean environments or outdoor, dusty, and wet installations.
FKM Elastomer Mechanical Seal: FKM (Fluoroelastomer) seals provide superior chemical and heat resistance compared to standard nitrile elastomers, making the FAC Series suitable for applications involving warmer or mildly aggressive liquids.
Compact Close Coupled Design: The integrated motor and pump configuration minimizes footprint and simplifies installation, with no separate base plate, coupling, or field alignment required.

If your pumping application involves higher water temperatures, diverse voltage requirements, or the need for a compact and reliable general service pump, the FAC Series is a strong candidate. Contact Ken’s Distributing for help determining whether the FAC Series is the right fit for your project.

Key Features and Benefits of the Franklin Electric FAC Series Close Coupled Centrifugal Pump

Cast Iron Volute Construction: The durable cast iron volute body can be rotated during installation to position the discharge in the most convenient direction for your piping layout. Tapped openings are provided for drainage, simplifying winterization and maintenance.
Enclosed Stainless Steel Impeller: The enclosed stainless steel impeller provides high hydraulic efficiency, corrosion resistance, and long-term strength in demanding operating conditions.
Carbon and Ceramic Mechanical Seal: The mechanical seal features carbon and ceramic sealing faces, FKM elastomers, and 300 series stainless steel components for durable, leak-free operation even in higher-temperature applications.
3600 RPM JM Frame Motor: The JM frame motor operates at 3600 RPM in open drip proof or totally enclosed fan cooled configurations, designed for continuous duty operation with consistent, reliable power output.
Vertical or Horizontal Mounting: The FAC Series can be installed in either vertical or horizontal orientation, giving installers flexibility to adapt to different system layouts and space constraints.
Maximum Temperature Rating of 212°F: Suitable for hot water circulation, boiler systems, and heating applications where standard pumps with lower temperature limits cannot be used.
Wide Voltage and Phase Range: Available in 115/230 VAC single-phase, 230/460 VAC three-phase, and 575 VAC three-phase configurations to match virtually any electrical installation environment.
FNPT Threaded Discharge: All models feature threaded FNPT discharge connections for straightforward integration with standard piping systems.
Tapped Drain Openings: Built into the volute for quick and easy draining during maintenance, winterization, or system shutdown procedures.

Technical Specifications

Specification	Detail
Available HP	3 HP, 5 HP
Phase Options	Single-Phase and Three-Phase available
Voltage (Single-Phase)	115 VAC / 230 VAC (3 HP) or 230 VAC (5 HP)
Voltage (Three-Phase)	230 VAC / 460 VAC or 575 VAC
Motor Speed	3600 RPM
Motor Frame	JM Frame
Motor Enclosure Options	ODP (Open Drip Proof) or TEFC (Totally Enclosed Fan Cooled)
Pump Design	Close Coupled
Volute Material	Cast Iron (rotatable)
Impeller Material	Enclosed Stainless Steel
Mechanical Seal	Carbon/Ceramic faces, FKM elastomers, 300 Series Stainless Steel
Max Water Temperature	212°F / 100°C
Mounting Options	Vertical or Horizontal
Discharge Connection	Threaded FNPT
Drain Provision	Tapped openings for drainage

Order Information

Item	Model	HP	Phases	Volts	Discharge	Seal	Motor Enclosure
90210030	FAC-300S	3 hp	Single-Phase	115 VAC / 230 VAC	Threaded – FNPT	Mechanical Seal	ODP
90210130	FAC-300SE	3 hp	Single-Phase	115 VAC / 230 VAC	Threaded – FNPT	Mechanical Seal	TEFC
90213030	FAC-300T	3 hp	Three-Phase	230 VAC / 460 VAC	Threaded – FNPT	Mechanical Seal	ODP
90213130	FAC-300TE	3 hp	Three-Phase	230 VAC / 460 VAC	Threaded – FNPT	Mechanical Seal	TEFC
90214130	FAC-300T5E	3 hp	Three-Phase	575 VAC	Threaded – FNPT	Mechanical Seal	TEFC
90210050	FAC-500S	5 hp	Single-Phase	230 VAC	Threaded – FNPT	Mechanical Seal	ODP
90210150	FAC-500SE	5 hp	Single-Phase	230 VAC	Threaded – FNPT	Mechanical Seal	TEFC
90213050	FAC-500T	5 hp	Three-Phase	230 VAC / 460 VAC	Threaded – FNPT	Mechanical Seal	ODP
90213150	FAC-500TE	5 hp	Three-Phase	230 VAC / 460 VAC	Threaded – FNPT	Mechanical Seal	TEFC
90214150	FAC-500T5E	5 hp	Three-Phase	575 VAC	Threaded – FNPT	Mechanical Seal	TEFC

FAC Series vs. Other Franklin Electric Close Coupled Centrifugal Pumps

Franklin Electric offers several close coupled centrifugal pump series, and each is designed for a different set of operating conditions and applications. Here is how the Franklin Electric FAC Series Close Coupled Centrifugal Pump compares to the other main series in the lineup:

Feature	FAC Series	HC Series	D Series	AG Series
Max Water Temperature	212°F / 100°C	Standard	Standard	Standard
HP Range	3 HP, 5 HP	7.5 HP up to 50 HP	Varies	Varies
Volute Material	Cast Iron	Ductile Iron	Cast Iron	Cast Iron
Impeller Material	Stainless Steel	CA6NM Stainless Steel	Cast Iron	Cast Iron
Seal Type	Carbon/Ceramic, FKM	Silicon Carbide, FKM	Carbon/Ceramic, Nitrile	Carbon/Ceramic, Nitrile
Motor Speed	3600 RPM	3600 RPM	Varies	Varies
575 VAC Option	Yes	No	No	No
Best For	Hot water, general service, boosting, jockey pump, spray systems	Heavy-duty commercial, industrial, mining, municipal	General purpose water transfer	Agricultural irrigation and farm use

The FAC Series is the best choice when your application involves higher water temperatures, 575 VAC power, or general service pumping tasks like water circulation, boosting, jockey pump duty, or spray systems. For heavy-duty industrial or municipal applications with higher HP requirements, the HC Series is the better option. For standard agricultural or general purpose water transfer, the AG Series or D Series may be more cost-effective. Not sure which series fits your application? Contact Ken’s Distributing and our team will help you make the right selection.

Applications: Where Is the Franklin Electric FAC Series Close Coupled Centrifugal Pump Used?

The Franklin Electric FAC Series Close Coupled Centrifugal Pump is designed for a broad range of commercial, industrial, and general service pumping applications. Here are the most common uses:

Water Circulation Systems: The FAC Series is well suited for hot water and cold water circulation in commercial buildings, heating systems, and HVAC water loops. The 212°F maximum temperature rating makes it ideal for hot water recirculation applications.
Booster Pumping Services: Used as a booster pump in commercial and residential water systems to increase water pressure from storage tanks, municipal supply lines, or low-pressure sources.
Liquid Transfer Operations: A reliable choice for general liquid transfer in commercial and light industrial environments, including water supply, cooling water, and process water transfer.
Spraying Systems: Suitable for agricultural and industrial spray systems that require consistent flow and pressure from a compact, reliable pump unit.
Jockey Pump Installations: The FAC Series works well as a jockey pump in fire protection systems, maintaining system pressure between fire pump activations and keeping the fire suppression system ready to operate at all times.
General Service Pumping: The versatile design and wide range of motor, voltage, and enclosure options make the FAC Series a dependable option for a broad range of general service pumping tasks in commercial and industrial settings.

Installation and Maintenance Details

The Franklin Electric FAC Series Close Coupled Centrifugal Pump is designed for practical installation and easy long-term maintenance. Here is what you need to know:

Rotatable Volute: The cast iron volute can be rotated during installation to orient the discharge port in the best direction for your piping layout, reducing the need for extra fittings and elbows.
Tapped Drain Openings: The volute includes tapped drain openings for quick and easy draining during maintenance, winterization, or system shutdown.
Vertical or Horizontal Mounting: The FAC Series can be installed in either vertical or horizontal orientation, providing flexibility for different system layouts and available installation space.
Motor Enclosure Selection: Choose ODP for clean, dry indoor environments, or TEFC for outdoor, dusty, or humid installation conditions. Both options are available for every model in the lineup.
Voltage Configuration: Single-phase models run on 115/230 VAC (3 HP) or 230 VAC (5 HP). Three-phase models are available in 230/460 VAC or 575 VAC, covering virtually any commercial or industrial electrical configuration.
FNPT Threaded Discharge: Standard threaded discharge connections on all models simplify integration with existing piping systems.

For help selecting the right motor enclosure, voltage configuration, or mounting orientation for your installation, contact Ken’s Distributing. Our team is always available to help you get the FAC Series set up correctly for your specific environment.

Compatible Replacement Parts and Accessories

To keep your Franklin Electric FAC Series Close Coupled Centrifugal Pump running at its rated performance, it is important to use genuine Franklin Electric replacement parts. Kendisco stocks a range of compatible parts and accessories for the FAC Series, including:

Mechanical seal replacement kits (carbon/ceramic with FKM elastomers)
Stainless steel impeller assemblies
Gasket and O-ring kits
Motor replacement components
Drain plug and fitting replacements

Using genuine Franklin Electric parts protects your pump warranty and ensures the FAC Series continues to operate as designed. Browse the full range of Franklin Electric replacement parts available at Kendisco today.

View Franklin Electric Replacement Parts at Ken’s Distributing

Frequently Asked Questions About the Franklin Electric FAC Series Close Coupled Centrifugal Pump

What does FAC stand for in the Franklin Electric FAC Series?

FAC refers to the Franklin Electric close coupled centrifugal pump series designed for general service, water circulation, and booster pump applications. The FAC Series is distinguished by its 212°F maximum temperature rating, stainless steel impeller, and FKM elastomer mechanical seal, making it more versatile than standard close coupled centrifugal pumps for applications involving warmer liquids.

What is the maximum water temperature the FAC Series can handle?

The Franklin Electric FAC Series Close Coupled Centrifugal Pump is rated for a maximum water temperature of 212°F (100°C). This makes it suitable for hot water circulation, boiler feed, and heating system applications where most standard centrifugal pumps cannot be used.

What HP options are available for the FAC Series?

The Franklin Electric FAC Series Close Coupled Centrifugal Pump is available in 3 HP and 5 HP models. Both HP options are available in single-phase and three-phase configurations, with ODP and TEFC motor enclosure choices. Three-phase models are also available in 575 VAC for commercial and industrial installations. Ken’s Distributing carries all ten available FAC Series model configurations.

Can the FAC Series be used as a jockey pump?

Yes. The Franklin Electric FAC Series Close Coupled Centrifugal Pump is commonly used as a jockey pump in fire protection systems. Its compact design, reliable mechanical seal, and consistent pressure output make it well suited for maintaining system pressure between fire pump activations. Contact Ken’s Distributing for guidance on jockey pump sizing and selection for fire protection systems.

What is the difference between the FAC Series and the HC Series?

The FAC Series is designed for general service pumping, water circulation, and booster applications in the 3 to 5 HP range with a 212°F maximum temperature rating. The HC Series is designed for heavy-duty commercial, industrial, municipal, and mining applications with ductile iron construction, CA6NM stainless steel impeller, silicon carbide seal options, and motor capability up to 50 HP. The FAC Series is the right choice for moderate duty applications with higher temperature requirements, while the HC Series is built for the toughest and highest-capacity pumping jobs.

Is a 575 VAC option available for the FAC Series?

Yes. The Franklin Electric FAC Series Close Coupled Centrifugal Pump is available in 575 VAC three-phase TEFC models in both 3 HP and 5 HP. This is a feature that is not available on many other Franklin Electric close coupled centrifugal pump series, making the FAC Series a good fit for facilities with 575 VAC electrical systems. Kendisco carries both 575 VAC models.

What motor enclosure options are available?

Every model in the Franklin Electric FAC Series lineup is available with either ODP (Open Drip Proof) or TEFC (Totally Enclosed Fan Cooled) motor enclosures. ODP is suitable for clean, dry indoor installations. TEFC is the better choice for outdoor, dusty, or humid environments. Ken’s Distributing can help you choose the right enclosure for your installation conditions.

Where can I buy the Franklin Electric FAC Series Close Coupled Centrifugal Pump?

You can purchase the Franklin Electric FAC Series Close Coupled Centrifugal Pump directly from Ken’s Distributing at Kendisco.com. Our team is ready to assist with model selection, motor enclosure and voltage configuration, compatible replacement parts, and any technical questions about the FAC Series pump.
