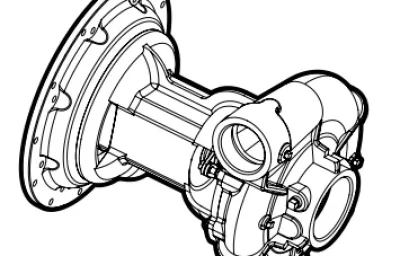

Franklin Electric 9 Inch SAE Engine Drive Pump & Parts
Franklin Electric 9 Inch SAE Engine Drive Pump models provide a direct engine-mounted centrifugal pump option for irrigation, water transfer, water-truck support, construction water management and similar applications. The 9-inch XS Series SAE range includes XS439 (3-inch discharge × 4-inch suction) and XS869 (6-inch discharge × 8-inch suction) hydraulics, with 12 manufacturer ordering configurations covering different SAE housing fits, volute connections and shaft seals.
Choose your pump using the model and order-number table below, or provide the original item number if you need an SAE bell housing, impeller, shaft kit, mechanical seal or packing component. Ken’s Distributing Company can confirm the fit, price and availability of a complete pump or an individual OEM replacement part.
Browse the Franklin Electric pump and parts range for other pump families, or continue below to match this engine-drive model to your application.
Franklin Electric 9 Inch SAE Engine Drive Pump Specifications
The 9-inch SAE models use a cast-iron centrifugal pump and a double-drilled SAE mounting arrangement with a 1½-inch, 10-tooth splined input shaft. Engine compatibility depends on the actual flywheel housing, driven coupling and installation dimensions, not simply on the pump’s nominal impeller diameter.
| Specification | Details |
|---|---|
| Series / drive | XS Series 9-inch nominal centrifugal, SAE direct engine mount |
| Available hydraulic sizes | XS439: 3 in. discharge × 4 in. suction; XS869: 6 in. discharge × 8 in. suction |
| Maximum capacity reference | Up to 2,000 GPM across the nominal 9-inch SAE family; size and speed dependent |
| Maximum head reference | 230 ft stated in an SAE-specific Franklin-branded product listing; verify exact performance curve for chosen model |
| Maximum working pressure | 250 PSI, manufacturer-family reference; separate from actual operating discharge pressure |
| Maximum liquid temperature | 212°F, subject to seal/material suitability |
| Rotation for listed assemblies | Clockwise, as shown in the manufacturer ordering table |
| Connections | XS439: NPT or Victaulic (grooved); XS869: flanged |
| Impeller | Enclosed, double-keyed cast iron; nominal 9-in. family |
| Volute | Heavy-duty cast iron (ASTM A48 Class 30 noted in original parts listing) |
| SAE housing fits | 4/5 and 2/3 double-drilled SAE housing arrangements |
| Input shaft | 1½-in., 10-tooth spline |
| Power / bearing frame | Heavy-duty cast iron, oversized shaft, serviceable bearings and grease fittings |
| Mechanical seal | Carbon/ceramic faces, nitrile elastomers, stainless-steel components |
| Alternative sealing | Packed box with lantern ring |
| Shaft sleeve | Replaceable, 416 stainless steel listed for OEM component 305462022 |
| Service method | Back pull-out construction for rotating assembly maintenance |
| Assembly scope | Pump assembly with SAE drive interface; matching engine must be specified separately |
Performance selection: The published maximum flow, maximum head and working-pressure references are not one simultaneous operating duty point. Confirm engine RPM, required GPM, total dynamic head and NPSH using the XS439 or XS869 manufacturer curve before quoting or sizing.
9-Inch SAE Pump Models, SAE Fits and Ordering Numbers
Choose the complete pump by XS439 or XS869 hydraulic size, SAE 4/5 or 2/3 fit, volute connection and packing or mechanical seal. All 12 original manufacturer models, order numbers and catalog weights are retained below. Individual Ken’s Distributing item pages were not verified for these SKUs, so the item numbers are displayed without invented links.
| Manufacturer order number | Pump model | Discharge × suction | Volute connection | SAE fit | Shaft sealing | Rotation | Impeller | Catalog weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 66040309145 | XS439-SA45NP | 3 x 4 – 9 | NPT | 4/5 | Packing | CW | Cast Iron | 150 |
| 66040309245 | XS439-SA45VP | 3 x 4 – 9 | Victaulic | 4/5 | Packing | CW | Cast Iron | 150 |
| 66040309123 | XS439-SA23NP | 3 x 4 – 9 | NPT | 2/3 | Packing | CW | Cast Iron | 150 |
| 66040309223 | XS439-SA23VP | 3 x 4 – 9 | Victaulic | 2/3 | Packing | CW | Cast Iron | 150 |
| 67040309145 | XS439-SA45NM | 3 x 4 – 9 | NPT | 4/5 | Mechanical | CW | Cast Iron | 150 |
| 67040309245 | XS439-SA45VM | 3 x 4 – 9 | Victaulic | 4/5 | Mechanical | CW | Cast Iron | 150 |
| 67040309123 | XS439-SA23NM | 3 x 4 – 9 | NPT | 2/3 | Mechanical | CW | Cast Iron | 150 |
| 67040309223 | XS439-SA23VM | 3 x 4 – 9 | Victaulic | 2/3 | Mechanical | CW | Cast Iron | 150 |
| 66080609345 | XS869-SA45P | 6 x 8 – 9 | Flange | 4/5 | Packing | CW | Cast Iron | 250 |
| 66080609323 | XS869-SA23P | 6 x 8 – 9 | Flange | 2/3 | Packing | CW | Cast Iron | 250 |
| 67080609345 | XS869-SA45M | 6 x 8 – 9 | Flange | 4/5 | Mechanical | CW | Cast Iron | 250 |
| 67080609323 | XS869-SA23M | 6 x 8 – 9 | Flange | 2/3 | Mechanical | CW | Cast Iron | 250 |
Model-code guide: XS439 identifies a 4-inch suction, 3-inch discharge and nominal 9-inch impeller. XS869 identifies an 8-inch suction and 6-inch discharge. SA45 denotes SAE 4/5 fit, SA23 SAE 2/3 fit, N NPT, V Victaulic/grooved, P packing and M mechanical sealing. Confirm the engine’s actual housing and coupling requirements before ordering.
XS439 vs. XS869: Selecting the Correct Engine-Driven Pump
The smaller XS439 connection sizes can suit applications using 4-inch suction and 3-inch discharge piping. The XS869 uses larger 8-inch suction and 6-inch discharge flanges for a different hydraulic duty range. Neither model should be selected solely because it shares the nominal 9-inch family name.
| Hydraulic model | Discharge | Suction | Connection choices | SAE fit choices |
|---|---|---|---|---|
| XS439 (3 × 4-9) | 3 in. | 4 in. | NPT or Victaulic/grooved | 4/5 and 2/3 |
| XS869 (6 × 8-9) | 6 in. | 8 in. | Flanged | 4/5 and 2/3 |
SAE Engine Drive vs. Bearing Frame and Hydraulic Drive
These related drive arrangements share some XS hydraulic references but are not interchangeable complete assemblies. Use the SAE model if your engine and flywheel interface are compatible with the specified SAE housing and spline.
| Drive arrangement | Connection to power source | What to check |
|---|---|---|
| SAE engine drive | Direct engine flywheel housing and splined input shaft | SAE housing number, spline/coupling, rotation and engine speed |
| Standard frame mount | Separate bearing-frame shaft with suitable coupling or belt | Shaft alignment, drive speed, base and drive-component scope |
| Hydraulic driven | Hydraulic motor coupled to a purpose-made hydraulic-fit frame | Hydraulic motor fit, available torque, speed and flow |
Franklin Electric 9-Inch SAE Replacement Parts by Model
The manufacturer parts list distinguishes XS439 and XS869 cast-iron impellers, volute types and shaft replacement kits. Match your exact model and original part number before ordering. SAE-specific replacement components include the two bell-housing choices, packed-style and mechanical-seal bearing-frame housings, shaft sleeve, packing, mechanical seal and drive-side bearings.
| Fig. No. | Part Description | Part No. | Materials of Construction | ||
|---|---|---|---|---|---|
| XS3x4-9 | XS6x8-9 | ||||
| 1 | Volute Case, Flanged | N/A | 305462013 | Cast Iron, ASTM-48 Class 30 | |
| 1 | Volute Case, NPT | 305462001 | N/A | Cast Iron, ASTM-48 Class 30 | |
| 1 | Volute Case, Victaulic | 305462019 | N/A | Cast Iron, ASTM-48 Class 30 | |
| 2 | Impeller | 305462008 | 305462018 | Cast Iron, ASTM-48 Class 30 | |
| 5 | Pump Shaft (only available in shaft replacement kit) | See shaft kits | Stressproof® AISI 1144 | ||
| 6 | Bearing Frame, Packed Style | 305462020 | Cast Iron, ASTM-48 Class 30 | ||
| 6 | Bearing Frame, Mechanical Seal Style | 305462055 | Cast Iron, ASTM-48 Class 30 | ||
| 8 | SAE Bellhousing (4/5) | 305464038 | Cast Iron, ASTM-48 Class 30 | ||
| 8 | SAE Bellhousing (2/3) | 305464039 | Cast Iron, ASTM-48 Class 30 | ||
| 9 | Bearing Frame Cover | 305462021 | Cast Iron, ASTM-48 Class 30 | ||
| 12 | Shaft Sleeve | 305462022 | 416 Stainless steel | ||
| 13 | Packing Ring Set | 305731917 | Graphite/cotton | ||
| 14 | Lantern Ring | 305448010 | Acetal | ||
| 15 | Packing Gland (1 piece) | 305462044 | 316 Stainless steel | ||
| 16 | Bearing, Pump Side | 305462025 | Steel | ||
| 17 | Bearing, Drive Side | 305463145 | Steel | ||
| 26 | Lip Seal, Pump/Drive Side | 305463148 | Nitrile | ||
| 30 | Mechanical Seal Retaining Ring | 305462028 | 316 Stainless steel | ||
| 35 | Key, Impeller Shaft (2 pack) | 305450006 | 316 Stainless steel | ||
| 42 | Thrust Ring, Bearing | 305462027 | Carbon steel | ||
| 43 | Snap Ring, Bearing | 305462026 | 316 Stainless steel | ||
| 90 | Mechanical Shaft Seal | 305462029 | Carbon/ceramic/nitrile/316 stainless steel | ||
| 100 | Gasket, Volute Case | 305463138 | NA60 | ||
| 500A | Pipe Plug (4 pack) | 305463020 | 305463144 | CAD-plated steel | |
| 500B | Pipe Plug (4 pack) | 305463144 | N/A | CAD-plated steel | |
| 502 | Grease Zerk, Straight (3 pack) | 305463160 | CAD-plated steel | ||
| 503 | Water Slinger | 305464015 | Neoprene | ||
| 510 | Hex Cap Screw, Impeller | 305462030 | 316 Stainless steel, grade 5 | ||
| 520 | Washer, Impeller | 305462031 | 300 Series stainless steel | ||
| 525 | Lock Washer, Impeller | 305462032 | 316 Stainless steel | ||
| 529 | Nut, Packing Gland (8 pack) | 305463033 | Zinc-plated steel | ||
| 530A | Hex Cap Screw, Volute Case (12 pack) | 305463202 | N/A | Zinc-plated steel | |
| 530A | Stud, Volute Case (8 pack) | N/A | 305463114 | 18-8 Stainless steel | |
| Not Shown | Hex Nut, Volute Case (8 pack) | N/A | 305463033 | Zinc-plated steel | |
| 530B | Hex Cap Screw, Bearing Cover (8 pack) | 305463053 | Zinc-plated steel | ||
| 530C | Hex Cap Screw, SAE Housing (8 pack) | 305463053 | Zinc-plated steel | ||
| 531 | Stud, Packing Gland (2 pack) | 305462033 | Zinc-plated steel | ||
| 533A | Lock Washer, Volute Case (8 pack) | 305463135 | Zinc-plated steel | ||
| 533B | Lock Washer, Bearing Cover (8 pack) | 305463135 | Zinc-plated steel | ||
| 533C | Lock Washer, SAE Housing (8 pack) | 305463135 | Zinc-plated steel | ||
| Not Shown | Shaft Replacement Kit (Includes 5, 12, 16, 17, 35, 42, 43) | 305731902 | 305731904 | Misc. | |
Frequently requested SAE service items: XS439 impeller 305462008, XS869 impeller 305462018; SAE bell housing 4/5 305464038 or 2/3 305464039; mechanical shaft seal 305462029; shaft sleeve 305462022; XS439 shaft replacement kit 305731902; XS869 shaft replacement kit 305731904. Use the complete table above for other cases, fasteners, bearings, and seal components.
Repair or replacement? If the volute and shaft remain sound, replacing a seal, packing set, shaft sleeve or bearing may address the failed component. Request a complete SAE pump assembly when the casing, impeller or drive interface is no longer suitable, or when a repair would not meet the required hydraulic duty. Confirm component condition before deciding.
SAE Engine Mount and Pump Installation Dimensions
Use the three original dimensional references below when matching the pump to an engine skid or replacing an installed unit. The mounting tables contain the manufacturer’s CP, X, Y, Z and other mechanical dimensions and separate SAE 2, 3, 4 and 5 bell-housing measurements. All original values are retained.
XS439 and XS869 Overall Dimensions
| Size | Suction | Discharge | Connection | Rotation | Dimensions (in) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CP | X | Y | Z | MP | H | DD1 | DD2 | N | |||||
| 3 x 4 – 9 | 4 | 3 | NPT | CW | 18.34 | 7.00 | 3.64 | 6.13 | 5.50 | 0.52 | 7.06 | 15.38 | 2.75 |
| 4 | 3 | Victaulic | CW | 18.34 | 7.00 | 3.64 | 6.13 | 5.50 | 0.52 | 7.06 | 15.38 | 2.75 | |
| 6 x 8 – 9 | 8 | 6 | Flange | CW | 20.09 | 8.13 | 4.13 | 7.50 | 7.25 | 0.52 | 7.81 | 20.82 | 2.75 |
SAE 2, 3, 4 and 5 Fit Dimensions
| Hydraulic size | SAE housing number | B1 (in.) | F1 (in.) | B2 (in.) | F2 (in.) | A (in.) |
|---|---|---|---|---|---|---|
| 3 x 4 – 9 | 2 | 17.615 | 11.07 | – | – | 19.25 |
| 3 x 4 – 9 | 3 | – | – | 16.115 | 11.32 | 19.25 |
| 3 x 4 – 9 | 4 | 14.245 | 11.07 | – | – | 15.88 |
| 3 x 4 – 9 | 5 | – | – | 14.245 | 11.32 | 15.88 |
| 6 x 8 – 9 | 2 | 17.615 | 11.07 | – | – | 19.25 |
| 6 x 8 – 9 | 3 | – | – | 16.115 | 11.32 | 19.25 |
| 6 x 8 – 9 | 4 | 14.245 | 11.07 | – | – | 15.88 |
| 6 x 8 – 9 | 5 | – | – | 14.245 | 11.32 | 15.88 |
SAE Bell Housing Bolt Patterns and Dimensions
| SAE number | A (mm) | A (in.) | B (mm) | B (in.) | C (mm) | C (in.) | Bolt holes | Hole diameter (mm) | Hole diameter (in.) |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 447.68 | 17.63 | 466.73 | 18.38 | 488.95 | 19.25 | 12 | 10.32 | 13/32 |
| 3 | 409.58 | 16.13 | 428.63 | 16.88 | 450.85 | 17.75 | 12 | 10.32 | 13/32 |
| 4 | 361.95 | 14.25 | 381.00 | 15.00 | 403.23 | 15.88 | 12 | 10.32 | 13/32 |
| 5 | 314.33 | 12.38 | 333.38 | 13.13 | 355.60 | 14.00 | 8 | 10.32 | 13/32 |
These mounting dimensions describe the pump-side SAE hardware. Obtain the engine flywheel housing and coupling specification as well, and confirm shaft engagement and alignment before installation.
Applications for the 9-Inch SAE Engine Drive Pump
- Diesel-powered irrigation and agricultural water-transfer stations with appropriate suction conditions.
- Construction water-transfer systems and suitably engineered dewatering setups.
- Water-truck filling and mobile water handling where the engine interface is compatible.
- Industrial or municipal water-transfer skids using a direct engine drive.
- Remote pump installations where a belt-driven or electric-motor arrangement is not preferred.
The pump is not identified as self-priming in the SAE catalog. Design the suction and initial priming arrangement for a non-self-priming centrifugal pump unless a separate system provides priming.
Request a Quote for Complete SAE Pumps or OEM Parts
Complete pump quote: Provide the XS439 or XS869 model, manufacturer order number if known, required flow in GPM, total dynamic head, suction conditions, operating RPM, discharge and suction connection sizes, engine make/model, SAE flywheel housing fit and preferred shaft-seal arrangement.
Replacement parts quote: Send the nameplate model, original order number, figure reference and OEM part number from the parts table. Include a photo or housing identification when ordering an SAE bell housing, shaft kit, impeller or seal. Ken’s Distributing Company will confirm matching specifications, price and availability.
Request pricing and availability or call 303-699-7845.
Frequently Asked Questions
What is the difference between XS439 and XS869 SAE pumps?
XS439 has a 3-inch discharge and 4-inch suction with NPT or Victaulic options. XS869 has a 6-inch discharge and 8-inch suction with flanged connections. Their impellers and shaft kits are different, so specify the exact pump model for parts or replacement.
Which SAE engine housing sizes are available?
The ordering catalog lists two double-drilled housing arrangements, SAE 4/5 and SAE 2/3, for both hydraulics. Confirm the engine’s flywheel housing, splined coupling and clearances using the dimensions tables before selecting.
Does the SAE engine-drive pump include an engine?
The manufacturer ordering table identifies pump assemblies with SAE drive interfaces. An engine is a separate specification and should not be assumed to be included in the pump order.
Can I buy only a mechanical seal, packing set, impeller or shaft kit?
Yes, the manufacturer parts list identifies these components individually. The XS439 and XS869 use different impeller and shaft replacement-kit numbers, so quote by your exact model and the OEM part reference.
Can this SAE centrifugal pump self-prime?
The SAE pump is not described as self-priming in the available manufacturer documentation. Plan an appropriate priming and suction system rather than assuming it can evacuate an empty suction line.
What information is needed to select an SAE engine-driven centrifugal pump?
Provide the duty-point flow and head, liquid conditions, engine RPM and output, SAE housing and coupling details, selected suction/discharge sizes and preferred seal type. Pump selection requires the applicable hydraulic performance curve.
