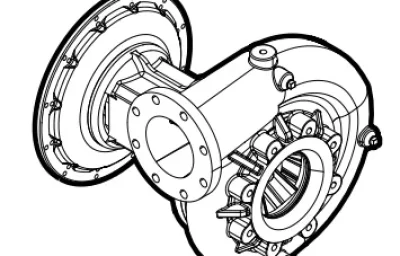

Franklin Electric 13 Inch SAE Engine Drive Pump & Parts

The Franklin Electric 13 Inch SAE Engine Drive Pump is a direct engine-mounted centrifugal pump for irrigation, construction water transfer, municipal pumping and industrial water-handling systems. This XS 13-inch family includes 3 × 4, 4 × 6-13H and 6 × 8 hydraulic sizes, each with packing or mechanical-seal options and SAE 4/5 or SAE 2/3 mounting arrangements. Use the 12 model and order numbers below to request the correct pump.

Ken’s Distributing Company supplies Franklin Electric pumps and replacement components on a quote basis. We can help identify the right SAE bellhousing, 1½-inch 10-tooth spline arrangement, stainless-steel impeller, mechanical seal, bronze wear ring or shaft kit. Send us your model number and engine details to confirm fit, price and availability.

Franklin Electric 13 Inch SAE Engine Drive Pump Specifications

Performance selection: The maximum flow and head are series reference values from different operating conditions. Use the specific performance curves below with the proposed engine RPM, available NPSH, total dynamic head and required flow before selecting a unit.

Choose the XS4313, XS6413H or XS8613 SAE Pump

• XS4313, 3 × 4-13: 3-inch discharge and 4-inch suction for engine-driven water-transfer applications needing the smaller port arrangement in the ordering table.
• XS6413H, 4 × 6-13H: 4-inch discharge and 6-inch suction. Check the H designation and matching impeller before ordering repair components.
• XS8613, 6 × 8-13: 6-inch discharge and 8-inch suction. The divided-volute design helps balance radial forces in this larger hydraulic configuration.

Within each hydraulic size, choose the correct SAE 4/5 or 2/3 fit and either packing (P) or a mechanical seal (M). The engine flywheel housing, mating spline, output rotation and operating speed all need to match the selected pump.

13-Inch SAE Engine Drive Pump Ordering Numbers

The following 12 configurations retain the original Franklin Electric model descriptions, manufacturer order numbers, nominal weights, clockwise rotation and SAE fit data from your existing catalog. Weights are catalog reference weights, not a shipping quote. No verified individual Ken’s Distributing product URLs were provided for these order numbers, so they remain unlinked.

SAE Bellhousing and Engine-Fit Requirements

The SAE bellhousing is an engine-mounting interface, not a guarantee that every engine in that size range is compatible. Confirm the exact flywheel housing pattern, drive spline, engine output direction, clearance, power at the planned speed and pump operating point before placing an order. The original manufacturer dimension rows below are retained for the 4/5 and 2/3 arrangements.

• SAE 4/5 fit: Manufacturer bellhousing part 305464038.
• SAE 2/3 fit: Manufacturer bellhousing part 305464039.
• Drive shaft: Catalog describes a 1½-inch, 10-tooth spline, but verify the coupling and flywheel-adapter requirements against the specific engine.

Where the 13-Inch SAE Centrifugal Pump Is Used

This direct-mounted configuration can be specified for diesel- or gas-engine-driven irrigation pumps, water-transfer skids, suitable construction dewatering, industrial circulation and backup water movement. The SAE mount can simplify the drive layout where a compatible engine is already available.

For larger pump stations, select the hydraulic using the required GPM at total dynamic head, engine power and RPM, suction conditions and liquid characteristics. The pump is not automatically self-priming and should be primed and installed according to the manufacturer’s instructions.

Franklin Electric XS 13-Inch SAE Replacement Parts

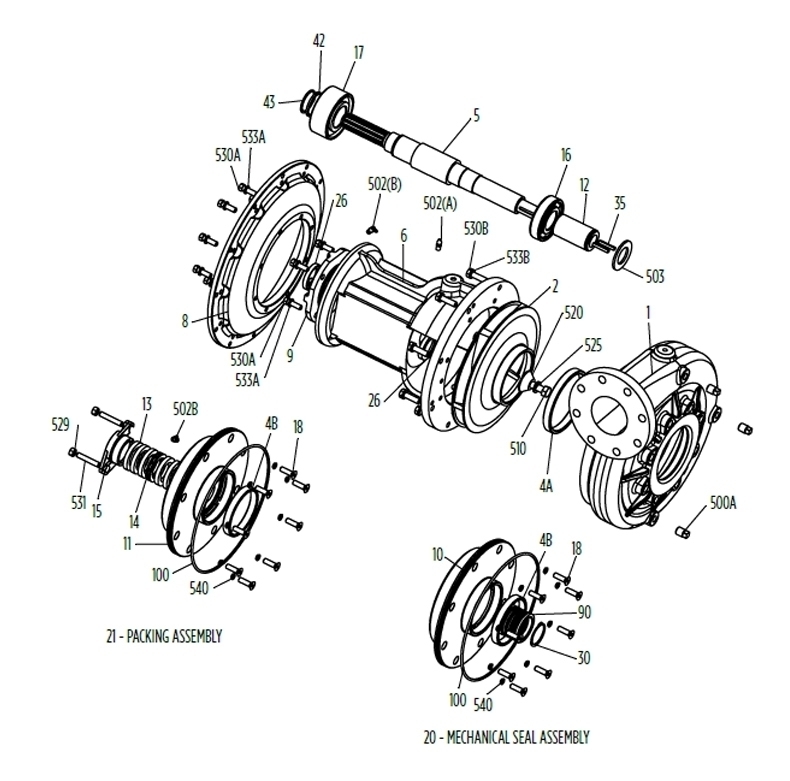

Repair-parts buyers can identify OEM volute cases, stainless-steel impellers, bronze wear rings, shaft sleeves, bearings, packing, bellhousings and mechanical seals using the figure number and their precise XS hydraulic model. The original exploded-parts drawing and complete materials/parts matrix are retained below, including the older XS25x3-13 reference found in the parts matrix.

Parts matching: The manufacturer parts matrix contains XS25x3-13 references even though the supplied ordering table lists pump assemblies for XS4313, XS6413H and XS8613 only. Treat the additional reference as a repair-identification lead, not an additional currently offered configuration. Similarly, the 4 × 6 impeller references 305464063 and 305464020 require exact trim and application confirmation before substitution.

Common Part Numbers Worth Checking

• Mechanical shaft seal: 305463153, listed for the XS 13-inch SAE parts breakdown.
• Packing ring set: 305731918.
• Lantern ring: 305464011.
• SAE bellhousing: 305464038 for 4/5 fit or 305464039 for 2/3 fit.
• Volute-case O-ring: 305463154.
• Shaft replacement kits: 305731909 / 305731910 for packed/seal configurations in the first three parts columns, and 305731911 / 305731912 in the XS6x8 column; confirm against the breakdown.

Wear rings, impellers, volute cases, shaft sleeves and seal back plates are not interchangeable across the XS4313, XS6413H and XS8613 hydraulic sizes unless Franklin confirms the specific part mapping.

Original XS 13-Inch SAE Pump and Bellhousing Dimensions

These measurements retain the original dimensional data from your existing page. Review the full dimension drawing before changing pump-base clearances, piping, engine mounting or service access.

SAE Bellhousing Bolt Pattern Dimensions

XS 13-Inch SAE Engine Drive Performance Curves

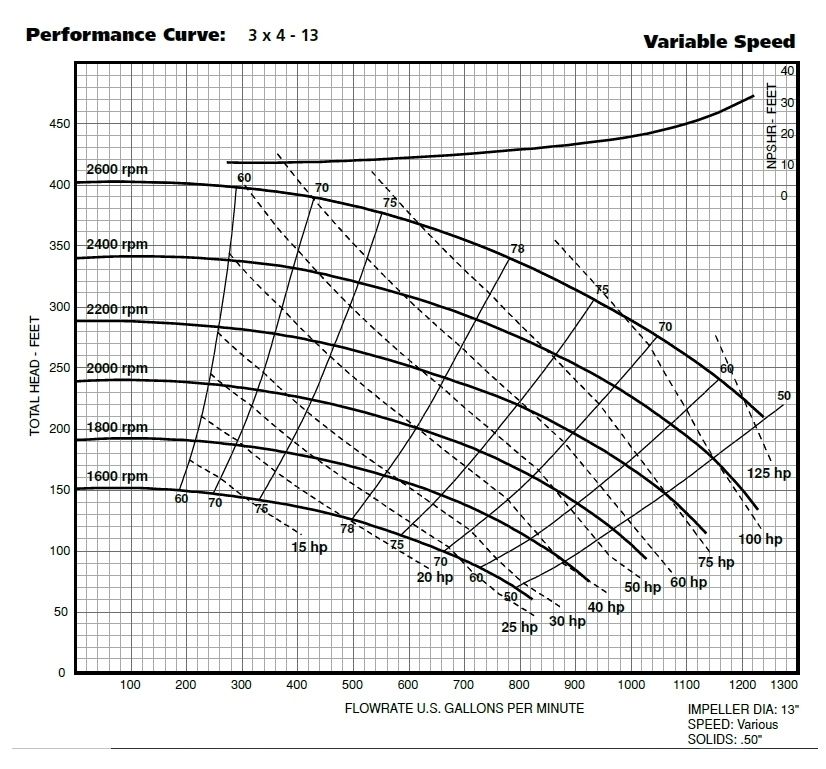

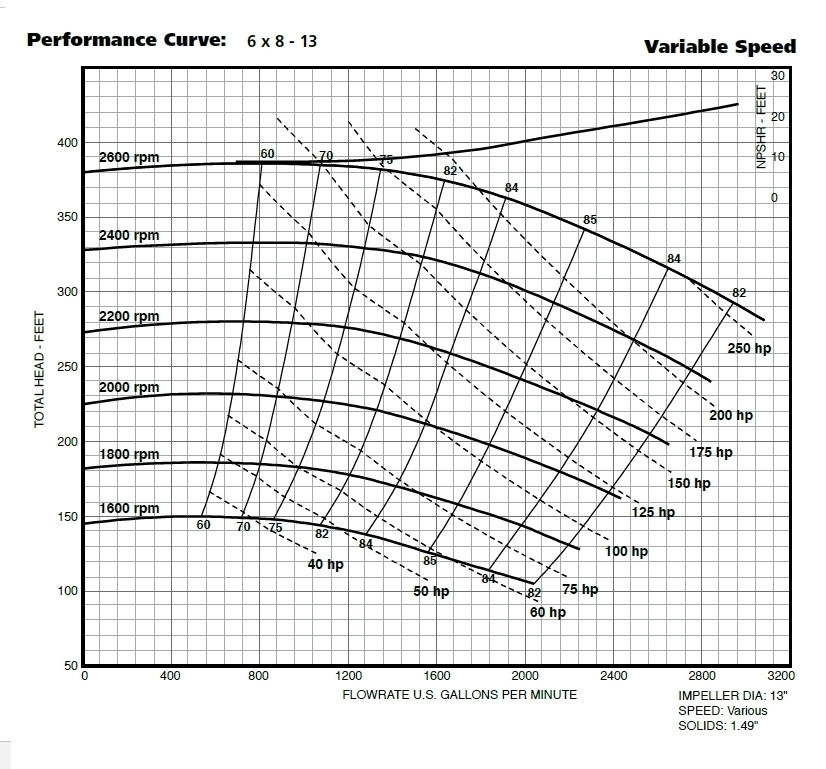

Read the graph for the exact hydraulic size and planned RPM. The curve shows the relationship between required GPM, head and power; use NPSH data and manufacturer guidance where available. The graphs are linked to their original full-size site-hosted images.

Repair a 13-Inch SAE Pump or Replace the Assembly?

• Service individual wear parts: If the casing and shaft remain sound, compare the correct seal, wear ring, packing or sleeve number with the existing assembly.
• Rebuild the rotating assembly: For bearing noise, scoring or shaft wear, use the matching shaft replacement kit and repair-parts breakdown.
• Quote a replacement pump: For a cracked casing, changed design duty point or extensive damage, request the corresponding XS order number and SAE interface.

Request a Quote for an SAE Pump or Replacement Parts

For a complete pump assembly: Tell Ken’s Distributing Company your existing model or order number, engine make/model, SAE flywheel housing, shaft details, engine RPM, required GPM and total dynamic head, suction/discharge sizes and preference for packing or mechanical sealing. We will help confirm the configuration, pricing and availability.

For OEM repair parts: Send the pump model (XS4313, XS6413H or XS8613), a nameplate photo if available, the exploded-view figure number, and the OEM part number. Request price and availability from Ken’s Distributing Company or call 303-699-7845.

Frequently Asked Questions

Which models are in the 13-inch SAE engine drive ordering table?

There are 12 listed combinations across XS4313 (3 × 4), XS6413H (4 × 6) and XS8613 (6 × 8). For each hydraulic, choose packing or a mechanical seal and an SAE 4/5 or 2/3 engine fit.

Does the pump include an engine?

No engine is identified in the manufacturer pump ordering table. Confirm whether a quoted package includes only the SAE pump or additional engine, mounting and drive components.

Can the 4/5 and 2/3 SAE fittings be exchanged?

The pump can be configured for either listed SAE fit, but the corresponding bellhousing, flywheel arrangement and mating shaft hardware must be confirmed. Provide your engine data before ordering.

Which replacement part should I order for a leaking shaft seal?

The table lists mechanical shaft seal 305463153 and packing components, but the correct repair depends on whether your unit has a mechanical seal or packed stuffing box. Match your nameplate and figure reference.

Does an XS8613 impeller fit an XS4313 or XS6413H?

Do not assume so. The original parts matrix lists different impeller and wear-ring numbers for each hydraulic, and the correct impeller trim should also be confirmed.

Is the 13-inch SAE model the same as the 13-inch frame-mounted pump?

No. The SAE version has an engine-mounting bellhousing and spline interface, while the frame-mounted version has a separate shaft/bearing arrangement for a selected driver. The hydraulics may belong to the same XS family, but complete assemblies and drive-side components are not automatically interchangeable.
