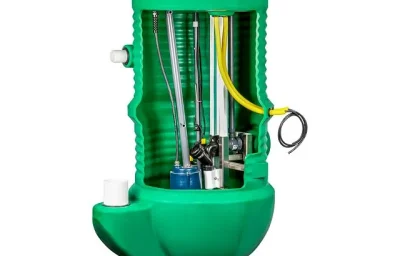

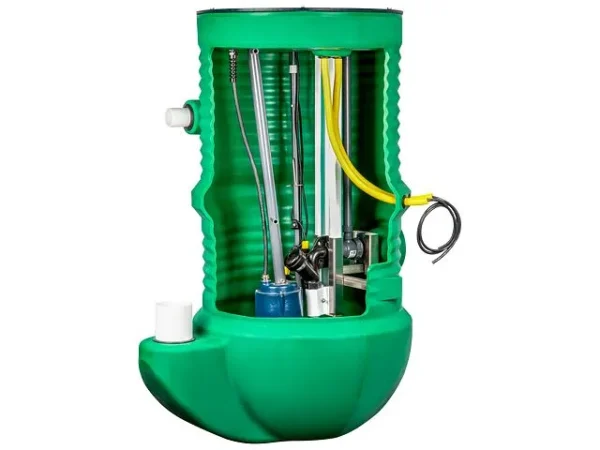

Franklin Electric PowerSewer Grinder Pump System
The Franklin Electric PowerSewer Grinder Pump System is a complete, packaged low-pressure sewer station designed for residential and commercial wastewater applications where gravity flow to the municipal sewer is not possible. At Ken’s Distributing Company, we supply the full PowerSewer lineup with basin sizes ranging from 60 to 96 inches, compatible with the complete FPS grinder pump series, delivering up to 200 feet of shutoff head and 35 GPM maximum flow. Kendisco stocks these systems ready to ship, with expert support for sizing, configuration, and installation guidance.
Unlike individual grinder pump components, the PowerSewer system arrives as a fully integrated package including the wet well basin, pump support, float assembly, discharge protection, and backflow prevention. This makes it one of the most efficient grinder pump solutions Franklin Electric offers for both new construction and retrofit sewer projects.
What Is the Franklin Electric PowerSewer Grinder Pump System?
A grinder pump system grinds solid household or commercial sewage waste into a fine slurry and pumps it under pressure through a small-diameter force main to the municipal sewer or a treatment facility. The PowerSewer is Franklin Electric’s branded, pre-engineered packaged version of this system, combining the wet well, the IGP or IGPH series grinder pump, and all required accessories into one complete station.
This differs from purchasing a simplex or duplex grinder pump system in that the PowerSewer is a fully assembled, tested package. Every component is factory-matched for compatibility, reducing installation time and eliminating guesswork on component selection. It is ideal for residential properties that sit below the municipal sewer line, remote homes, additions to existing structures, and commercial properties requiring reliable sewage ejection.
Ken’s Distributing Company works directly with contractors, municipalities, and homeowners to identify the right PowerSewer configuration for each project. Whether you need a standard IGP pump package or the high-head IGPH version for longer force main runs, Kendisco has the inventory and technical knowledge to support your application.
Technical Specifications
Grinder Pump Performance Curves
| Head (Feet) | IGP and IGPDS Flow (GPM) | IGP and IGPDS Flow (LPM) | IGPH Flow (GPM) | IGPH Flow (LPM) |
|---|---|---|---|---|
| 40 ft | 31 | 117.3 | N/A | N/A |
| 60 ft | 30 | 113.6 | N/A | N/A |
| 80 ft | 25 | 94.6 | N/A | N/A |
| 100 ft | 20 | 75.7 | 30 | 113.6 |
| 120 ft | 10 | 37.9 | 27 | 102.2 |
| 150 ft | N/A | N/A | 18 | 68.1 |
| 175 ft | N/A | N/A | 10 | 37.9 |
Grinder Pump Package Systems Order Information
| Item | Model | HP | Volts | Discharge | Amps – Full Load | Lead Length |
|---|---|---|---|---|---|---|
| V4PS60IGP-A231 | V4PS60IGP-A231 | 2 hp | 230 VAC | 1.25 “ | 13.9 A | 10 ft |
| V4PS60IGP-M231 | V4PS60IGP-M231 | 2 hp | 230 VAC | 1.25 “ | 13.9 A | 10 ft |
| V4PS60IGPH-M231 | V4PS60IGPH-M231 | 2 hp | 230 VAC | 1.25 “ | 18.5 A | 10 ft |
| V4PS72IGP-A231 | V4PS72IGP-A231 | 2 hp | 230 VAC | 1.25 “ | 13.9 A | 10 ft |
| V4PS72IGP-M231 | V4PS72IGP-M231 | 2 hp | 230 VAC | 1.25 “ | 13.9 A | 10 ft |
| V4PS72IGPH-M231 | V4PS72IGPH-M231 | 2 hp | 230 VAC | 1.25 “ | 18.5 A | 10 ft |
| V4PS84IGP-A231 | V4PS84IGP-A231 | 2 hp | 230 VAC | 1.25 “ | 13.9 A | 10 ft |
| V4PS84IGP-M231 | V4PS84IGP-M231 | 2 hp | 230 VAC | 1.25 “ | 13.9 A | 10 ft |
| V4PS84IGPH-M231 | V4PS84IGPH-M231 | 2 hp | 230 VAC | 1.25 “ | 18.5 A | 10 ft |
| V4PS96IGP-A231 | V4PS96IGP-A231 | 2 hp | 230 VAC | 1.25 “ | 13.9 A | 10 ft |
| V4PS96IGP-M231 | V4PS96IGP-M231 | 2 hp | 230 VAC | 1.25 “ | 13.9 A | 10 ft |
| V4PS96IGPH-M231 | V4PS96IGPH-M231 | 2 hp | 230 VAC | 1.25 “ | 10 ft |
System General Specifications
| Specification | Detail |
|---|---|
| Basin Sizes Available | 60 inch to 96 inch diameter |
| Maximum Shutoff Head | 200 feet |
| Maximum Flow Rate | 35 GPM |
| Compatible Pump Series | FPS IGP, IGPDS, IGPH |
| Motor Rating | 2 HP |
| Voltage | 230 VAC single phase |
| Discharge Connection | 1.25 inch |
| Design Type | Shallow dry well, packaged station |
Applications and Industries
The Franklin Electric PowerSewer Grinder Pump System is used across a wide range of residential and commercial applications. Below are the most common situations where this system is the right choice:
- Residential homes located below the elevation of the municipal sewer main
- Remote or rural properties requiring long-distance sewage force main pumping
- Home additions, basement bathrooms, or accessory dwelling units that cannot gravity-drain
- Commercial buildings with below-grade plumbing fixtures
- Low-pressure sewer (LPS) community systems and HOA lift station installations
- Replacement of aging or failed existing grinder pump systems
- New construction in areas served by low-pressure sewer infrastructure
- Municipal utility district installations requiring standardized packaged stations
Features and Benefits
- Shallow Dry Well Design: Simplifies installation in tight or shallow excavation conditions, reducing labor time and site disruption
- Integrated Pump Lift Handle: Allows the grinder pump to be removed and serviced without confined space entry or special tooling
- Drop Inlet Configuration: Accommodates various inflow pipe arrangements, giving installers flexibility on connection points
- Anti-Shear Discharge Connection: Protects the discharge piping from shear forces during ground movement or thermal expansion, improving long-term system reliability
- Isolated Pump Support (IPS): A purpose-built pump cradle that accommodates heavier FPS grinder pumps securely within the basin
- Float Tree Assembly: Pre-wired float switch arrangement simplifies level control setup and makes float replacement fast and straightforward
- Flexible Connector: Reduces alignment stress between the pump discharge and the force main, making installation easier and protecting the pump from vibration fatigue
- Anti-Siphon Check Valve: Prevents backflow from the force main into the wet well, protecting the grinder pump from reverse flow damage
- Factory-Matched Components: Every element of the PowerSewer system is engineered and tested together, eliminating compatibility guesswork and reducing startup issues on the job site
Installation and Compatibility
The Franklin Electric PowerSewer Grinder Pump System is designed for straightforward installation by licensed plumbers, well contractors, and wastewater system installers. The shallow dry well design reduces excavation depth requirements compared to traditional wet well installations, making it practical in areas with high water tables or limited dig depth.
Key installation considerations include:
- Electrical: 230 VAC single-phase power supply required, with a dedicated circuit sized for the pump amperage draw (13.9 A for standard IGP, 18.5 A for IGPH high-head model)
- Discharge Piping: 1.25-inch discharge connection, compatible with standard schedule 40 PVC force main piping
- Inflow Piping: Drop inlet design accepts standard gravity sewer inflow connections from the building drain
- Basin Sizing: Select basin diameter (60 to 96 inches) based on daily flow volume, pump cycling frequency requirements, and local code
- Compatible Control Panels: The PowerSewer system requires a compatible simplex grinder pump control panel with high-water alarm, pump run indicator, and manual override capability
- Force Main Distance: For runs exceeding 100 feet of head, select the IGPH high-head grinder pump package (V4PS60IGPH-M231) for adequate pressure performance
Contact Kendisco for assistance selecting the correct basin size, pump model, and control panel for your specific project.
Replacement Parts and Service
Franklin Electric PowerSewer systems are designed for long service life with minimal maintenance, but replacement parts are available through Ken’s Distributing Company when needed. Kendisco stocks genuine Franklin Electric grinder pump replacement parts including float switches, check valves, seals, and pump assemblies for the IGP and IGPH series used in PowerSewer systems.
For parts support, visit our Franklin Electric replacement parts and repair kits page or contact the Kendisco team directly with your model number for fast identification and shipping.
Related grinder pump system components available from Ken’s Distributing Company include:
- IGP Series grinder pump used in this system
- High-Head IGPH grinder pump for longer force main runs
- Simplex grinder pump control panels compatible with this system
- Grinder pump retrofit kit for system upgrades
Frequently Asked Questions
What is the Franklin Electric PowerSewer Grinder Pump System?
The Franklin Electric PowerSewer Grinder Pump System is a complete, pre-engineered packaged sewage pump station that grinds household or commercial wastewater and pumps it under pressure to a municipal sewer main or treatment system. It includes the wet well basin, grinder pump, float assembly, discharge protection, and backflow prevention in a single factory-matched unit.
How does the PowerSewer differ from a standard simplex grinder pump system?
A standard simplex grinder pump system refers to a single-pump configuration where individual components may be sourced and assembled separately. The PowerSewer is Franklin Electric’s fully packaged, branded version of this concept. Every component arrives pre-matched and tested for compatibility, which reduces installation time and startup problems. The PowerSewer is particularly well suited for municipal utility districts and developers who require a standardized, repeatable pump station design.
What grinder pumps are compatible with the PowerSewer system?
The PowerSewer system is compatible with the full Franklin Electric FPS grinder pump series, including the standard IGP Series and the high-head IGPH Series. The IGP is suited for typical residential applications where total dynamic head is under 120 feet. The IGPH is recommended for longer force main runs or greater elevation changes, with performance ratings up to 175 feet of head.
What basin sizes are available for the PowerSewer system?
The Franklin Electric PowerSewer system is available in basin diameters ranging from 60 inches to 96 inches. Basin size selection depends on daily sewage flow volume, required pump cycling frequency, and local municipal or code requirements. Ken’s Distributing Company can assist with sizing recommendations for your specific application.
Does the PowerSewer system require a separate control panel?
Yes. The PowerSewer grinder pump system requires a compatible simplex grinder pump control panel for automatic operation, high-water alarm monitoring, and pump protection. Kendisco supplies simplex control panels designed for use with Franklin Electric grinder pump systems. Contact Ken’s Distributing Company to confirm panel compatibility with your selected PowerSewer model.
What is the maximum head the PowerSewer system can achieve?
With the standard IGP Series grinder pump, the PowerSewer system achieves up to approximately 120 feet of total dynamic head. With the high-head IGPH pump, the system reaches up to 200 feet of shutoff head, making it suitable for installations with long horizontal force main runs or significant elevation changes between the pump station and the sewer connection point.
Can the PowerSewer be used for commercial applications?
Yes. While the PowerSewer is commonly installed in residential settings, it is also appropriate for small commercial buildings, restaurants, retail spaces, and multi-unit properties where below-grade sewage ejection is required. For high-demand commercial applications with multiple fixtures or continuous flow requirements, Kendisco recommends evaluating the duplex grinder pump system for added redundancy.
