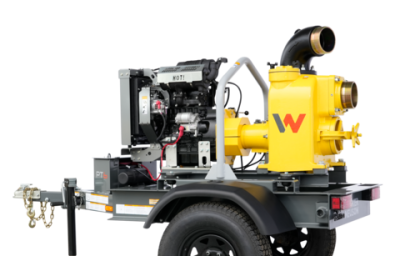

Wacker Neuson PT6 Self-Priming Trash Pump
Wacker Neuson PT6 Self-Priming Trash Pump for Large-Scale Construction Dewatering
The Wacker Neuson PT6 self-priming trash pump is a heavy-duty, diesel-powered centrifugal pump built for demanding, large-scale dewatering applications where high discharge volume, long running time, and robust mechanical durability are non-negotiable requirements. Available through Ken’s Distributing Company, the PT6 is driven by a Yanmar diesel engine with electric start, delivering the power and reliability that contractors, civil engineers, and site managers depend on when pumping large volumes of water containing solids and debris across extended operating shifts. The ductile iron impeller and silicon carbide mechanical seals provide exceptional wear resistance, keeping maintenance requirements low even under continuous heavy use in the toughest field conditions.
The PT6 is the largest model in the Wacker Neuson self-priming trash pump range, positioned above the PTS4 and PT2A/PT3A models for applications where maximum flow rate and sustained output are the primary selection criteria. Its design reflects a purpose-built approach to high-volume trash pumping, with every major feature focused on productive capacity, ease of maintenance, and operational security on active job sites.
How Does the Wacker Neuson PT6 Self-Priming Trash Pump Work?
The PT6 operates as a self-priming centrifugal pump, meaning it can draw water up from the source under suction without requiring the pump chamber to be manually filled before each start. The Yanmar diesel engine drives a ductile iron impeller at high speed inside the volute housing. As the impeller spins, it creates a low-pressure zone at the inlet that draws fluid and entrained solids upward through the suction hose and into the pump chamber. The rotating impeller then accelerates the fluid outward through the volute and discharges it through the outlet at high velocity and volume.
The self-priming capability is maintained by retaining a small volume of water in the pump housing between operating cycles. When the engine starts, this residual water allows the impeller to begin building suction immediately, drawing air out of the suction hose and pulling water up from the source without requiring operator intervention. This design makes the PT6 practical for repeated start-stop operation on sites where dewatering is intermittent rather than continuous.
Key Features of the Wacker Neuson PT6 Self-Priming Trash Pump
Powerful Yanmar Diesel Engine with Electric Start
The PT6 is powered by a Yanmar diesel engine, one of the most trusted names in industrial small engine manufacturing. Yanmar diesel engines are known for their fuel efficiency, durability under sustained load, and long service intervals compared to gasoline equivalents. The electric start system eliminates the physical effort of pull-cord starting for a pump of this size and weight, allowing a single operator to start the PT6 quickly and safely regardless of ambient temperature or engine temperature state. The engine is positioned for easy access and serviceability, reducing the time required for routine maintenance tasks such as oil changes, filter replacement, and fuel system inspection.
Ductile Iron Impeller for Maximum Wear Resistance
The impeller of the PT6 is manufactured from ductile iron, a material that combines the hardness and abrasion resistance required to handle solids-laden water with the toughness needed to resist impact damage from larger solid particles passing through the pump. Ductile iron impellers outlast cast aluminum or plastic alternatives substantially in trash pump applications, reducing the frequency and cost of impeller replacement over the working life of the machine.
Silicon Carbide Mechanical Seals
The PT6 uses silicon carbide mechanical seals that provide a high level of wear resistance and sealing integrity during operation in water containing abrasive particles and solid material. Silicon carbide is one of the hardest materials used in pump seal face manufacture, offering significantly longer service life than ceramic or carbon seal face combinations under abrasive conditions. This directly translates to extended intervals between seal replacements and lower total maintenance costs over the pump’s operating life.
Shimmable Wear Plate for Extended Service Life
One of the most practical engineering features of the PT6 is the shimmable wear plate between the impeller and the volute housing. As the impeller wears over time, the clearance between the impeller face and the wear plate increases, reducing pumping efficiency. Rather than requiring an impeller replacement to restore performance, the PT6 allows operators to shim the wear plate forward to compensate for this wear, restoring the original clearance and flow efficiency without replacing the impeller. This design extends the effective service life of both components and reduces the cost of maintaining peak pump performance over a long service life.
Cast Iron Housing and Volute
The pump housing and volute are manufactured from cast iron, providing the structural durability required for heavy-duty trash pumping applications in demanding field environments. Cast iron resists the abrasion and impact loads generated by solids passing through the pump far better than aluminum or composite alternatives, making it the material of choice for pumps that will be used continuously in challenging site conditions. The volute, intake port, and discharge port are all accessible from the rear of the machine, making inspection and service practical without requiring the pump to be disassembled from its mounting frame.
Quick-Release Clean Out Cover
When blockages occur, time spent clearing them directly impacts site productivity. The PT6 addresses this with a quick-release clean out cover fitted with handles that allows rapid access to the pump chamber for manual clearing of blockages. The clean out cover can be opened and resealed without tools in most cases, minimizing downtime when the pump intake becomes clogged with debris or large solids that exceed the pump’s passage capability.
Central Lifting Eye for Job Site Mobility
The PT6 is a large, heavy pump and moving it around an active construction site requires a safe and secure lifting point. The central lifting eye provides a single, structurally rated attachment point for crane, hoist, or forklift lifting during positioning, loading, and unloading operations. Its central location ensures the pump hangs level during lifting, making placement into position straightforward and safe.
Lockable Control Panel and Battery Access
The control panel, including the electric start system and engine controls, is located at the front of the machine for easy operator access. A lockable, removable cover protects the panel and battery from weather, vandalism, and unauthorized use when the pump is left unattended on site overnight or between shifts. Battery access for inspection, charging, and replacement is straightforward without requiring panel disassembly.
Lockable Fuel Cap with Integrated Fuel Filter
The PT6 fuel system includes a lockable fuel cap that prevents vandalism and unauthorized fuel access when the pump is deployed on open or shared job sites. An easy-fill fuel nozzle and integrated fuel filter protect the injection system from contaminated fuel, reducing the risk of fuel-related engine problems during extended operation.
Exhaust Rain Cap
An exhaust rain cap is fitted to the PT6 exhaust outlet to prevent rainwater and airborne debris from entering the engine exhaust system when the pump is stationary or in storage. Water ingress through the exhaust can cause internal corrosion and starting problems, particularly when the pump has been left exposed to weather conditions between shifts.
Engine Throttle Control Near Pump Housing
The engine throttle control on the PT6 is positioned conveniently near the pump housing rather than on the engine itself, allowing the operator to adjust engine speed from the pump end of the machine without needing to reach across the full length of the unit. This improves operational convenience during setup, adjustment, and shutdown.
Applications: Where the Wacker Neuson PT6 Trash Pump Performs Best
The PT6 is the highest-capacity model in the Wacker Neuson self-priming trash pump range and is selected for applications where volume, durability, and continuous-duty performance are the defining requirements.
- Large-Scale Construction Dewatering: Removing high volumes of groundwater, surface water, and storm runoff from large excavations, deep foundation pits, and extensive grading operations where smaller pumps cannot keep pace with water inflow rates.
- Civil Engineering and Infrastructure Projects: Dewatering large trench excavations for water mains, sewer installation, and underground utility infrastructure where continuous pumping over extended project durations is required.
- Mining and Quarry Operations: Managing water accumulation in open pit mines, quarry sumps, and underground access areas where high-volume pumping with solids handling capability is needed to maintain operational access and safety.
- Tunnel and Underground Construction: Controlling water inflows in tunnel boring operations, pipe jacking projects, and underground structure construction where confined space and high water volumes create demanding pumping requirements.
- Flood Response and Emergency Dewatering: Rapid deployment for high-volume water removal from flooded areas, critical infrastructure, and emergency scenarios where the speed of water removal is directly tied to structural safety and loss prevention.
- Municipal Sewage Bypass and Maintenance: Bypassing sewage flow during main sewer repairs, lift station maintenance, and municipal infrastructure work where uninterrupted flow management is essential to public health compliance.
- Industrial and Process Water Management: Transferring process water, cooling water, and industrial effluent in manufacturing, processing, and industrial facility maintenance applications requiring reliable high-volume pumping over extended shifts.
Wacker Neuson PT6 vs. PTS4 vs. PT2A/PT3A: Choosing the Right Trash Pump
The Wacker Neuson self-priming trash pump range covers three size classes. The table below clarifies the key differences to help you select the right model for your application volume and site requirements.
| Feature | PT6 | PTS4 | PT2A / PT3A |
|---|---|---|---|
| Engine Type | Yanmar diesel, electric start | Refer to PTS4 specs | Refer to PT2A/PT3A specs |
| Pump Class | Large, heavy-duty | Medium | Compact |
| Impeller Material | Ductile iron | Refer to PTS4 specs | Refer to PT2A/PT3A specs |
| Seal Type | Silicon carbide | Refer to PTS4 specs | Refer to PT2A/PT3A specs |
| Shimmable Wear Plate | Yes | Refer to PTS4 specs | Refer to PT2A/PT3A specs |
| Electric Start | Yes | Refer to PTS4 specs | Refer to PT2A/PT3A specs |
| Best Application | Large sites, high volume, extended shifts | Medium sites, mid-volume dewatering | Compact sites, smaller volume requirements |
For medium-volume construction dewatering where a smaller, more portable trash pump is sufficient, the Wacker Neuson PTS4 self-priming trash pump is the appropriate mid-range option. For compact applications and smaller site dewatering requirements, the Wacker Neuson PT2A and PT3A self-priming trash pumps offer a more manageable and cost-effective solution. For applications where the water is relatively clean and maximum flow rate is the priority over solids handling, the Wacker Neuson PG Series engine-driven dewatering pump should also be considered.
How to Set Up and Operate the Wacker Neuson PT6 Trash Pump
The PT6 is designed for efficient deployment by a trained operator with access to appropriate lifting equipment for positioning. The steps below are provided for general reference only. Always consult the official Wacker Neuson operator’s manual and Yanmar engine documentation before use.
- Site preparation and positioning: Use the central lifting eye with an appropriate crane, hoist, or forklift to position the PT6 at the pumping location. Place the pump on stable, level ground as close as practical to the water source to minimize suction distance and optimize priming performance.
- Pre-operation inspection: Check the Yanmar engine oil level using the dipstick. Verify diesel fuel level and fill if required. Inspect the suction hose, discharge hose, and all connections for damage or loose fittings. Check the battery charge level if the pump has not been used recently.
- Connect suction and discharge hoses: Attach the suction hose to the intake port at the rear of the machine and lower the strainer end into the water source. Connect the discharge hose to the outlet and route it to the designated discharge point, keeping the hose free of sharp bends and unnecessary elevation changes that would increase back pressure.
- Verify clean out cover is secured: Confirm the quick-release clean out cover is fully closed and latched before starting the pump. An unsecured clean out cover will prevent the pump from building suction and priming correctly.
- Set throttle position: Use the throttle control located near the pump housing to set the engine to the starting position as specified in the operator’s manual.
- Start the Yanmar engine: Open the fuel valve, turn the ignition key to the start position, and engage the electric starter. Allow the engine to run at low speed for a brief warm-up period before advancing to operating throttle.
- Monitor priming: The PT6 should establish discharge flow within the first 1 to 2 minutes of running at operating throttle. If priming does not occur, shut down the engine, check for suction hose air leaks, verify the clean out cover is sealed, and add priming water to the pump chamber if required before restarting.
- Ongoing monitoring: Monitor fuel level, engine temperature, and discharge flow rate throughout the operating shift. Check periodically that the suction strainer has not become blocked by debris accumulation at the water source.
- Blockage clearing procedure: If discharge flow reduces significantly or stops, shut the engine down before opening the quick-release clean out cover. Clear any blockage manually, reseal the cover, and restart the engine to resume operation.
- Shutdown and securing: Reduce throttle before switching the engine off. Close the fuel valve. Lock the control panel cover and fuel cap before leaving the pump unattended. If the pump will be stored for an extended period, flush the pump chamber with clean water and follow the Yanmar engine storage procedure.
Safety Notice: This guidance is provided for general reference only. Always follow the complete instructions in the official Wacker Neuson operator’s manual and the Yanmar engine documentation. Diesel engine exhaust contains chemicals known to cause serious health risks. Operate only in well-ventilated areas. Contact Kendisco for official documentation, spare parts, and technical support from Ken’s Distributing Company.
California Proposition 65 Warning: Engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproductive harm. Batteries, battery posts, terminals, and related accessories contain lead and lead compounds and other chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov.
Frequently Asked Questions: Wacker Neuson PT6 Self-Priming Trash Pump
What is the Wacker Neuson PT6 self-priming trash pump used for?
The Wacker Neuson PT6 self-priming trash pump is used for large-scale construction dewatering, civil engineering water management, mining and quarry dewatering, flood response, and municipal sewage bypass applications. It is the largest model in the Wacker Neuson trash pump range, selected when maximum flow rate, extended run time, and continuous-duty reliability are the primary requirements.
What engine does the Wacker Neuson PT6 use?
The PT6 is powered by a Yanmar diesel engine with an electric start system. Yanmar is a globally recognized manufacturer of industrial diesel engines, known for fuel efficiency, durability under sustained load, and long service intervals. The electric start eliminates pull-cord starting, making operation straightforward for a single operator regardless of engine temperature or ambient conditions.
What is a shimmable wear plate and why does it matter?
A shimmable wear plate is a serviceable component positioned between the impeller and volute housing that can be adjusted forward using shims as the impeller face wears over time. As impeller wear increases the clearance between the impeller and wear plate, pump efficiency decreases. By shimming the wear plate to restore the original clearance, operators can recover lost performance without replacing the impeller, extending the service life of both components and reducing maintenance costs significantly over the pump’s operating life.
Is the PT6 self-priming?
Yes. The Wacker Neuson PT6 is a self-priming centrifugal pump. After the initial prime is established, the pump retains residual water in the housing that allows it to re-prime automatically on subsequent starts. On initial deployment or after extended storage, priming water should be added to the pump chamber or suction hose to assist the priming process.
What type of mechanical seals does the PT6 use?
The PT6 uses silicon carbide mechanical seals, which provide high wear resistance and long service life in applications where the pumped fluid contains abrasive solid particles. Silicon carbide seal faces are significantly harder and more wear-resistant than ceramic or carbon alternatives, making them the appropriate specification for a trash pump operating continuously in solids-laden water.
What is the difference between the PT6 and the PTS4?
The PT6 is the largest model in the Wacker Neuson trash pump range, powered by a Yanmar diesel engine with electric start and featuring a shimmable wear plate, ductile iron impeller, and lockable security features for extended site deployment. The PTS4 is a mid-range self-priming trash pump designed for medium-volume applications where a smaller, lighter pump is more practical. The PT6 is the correct choice for high-volume, large-scale, or long-duration pumping requirements where the PTS4 would be undersized.
Where can I purchase the Wacker Neuson PT6 self-priming trash pump?
The Wacker Neuson PT6 self-priming trash pump is available through Kendisco, operating as Ken’s Distributing Company, an authorized Wacker Neuson distributor. Contact Kendisco for current pricing, availability, lead times, and delivery options for the PT6.
