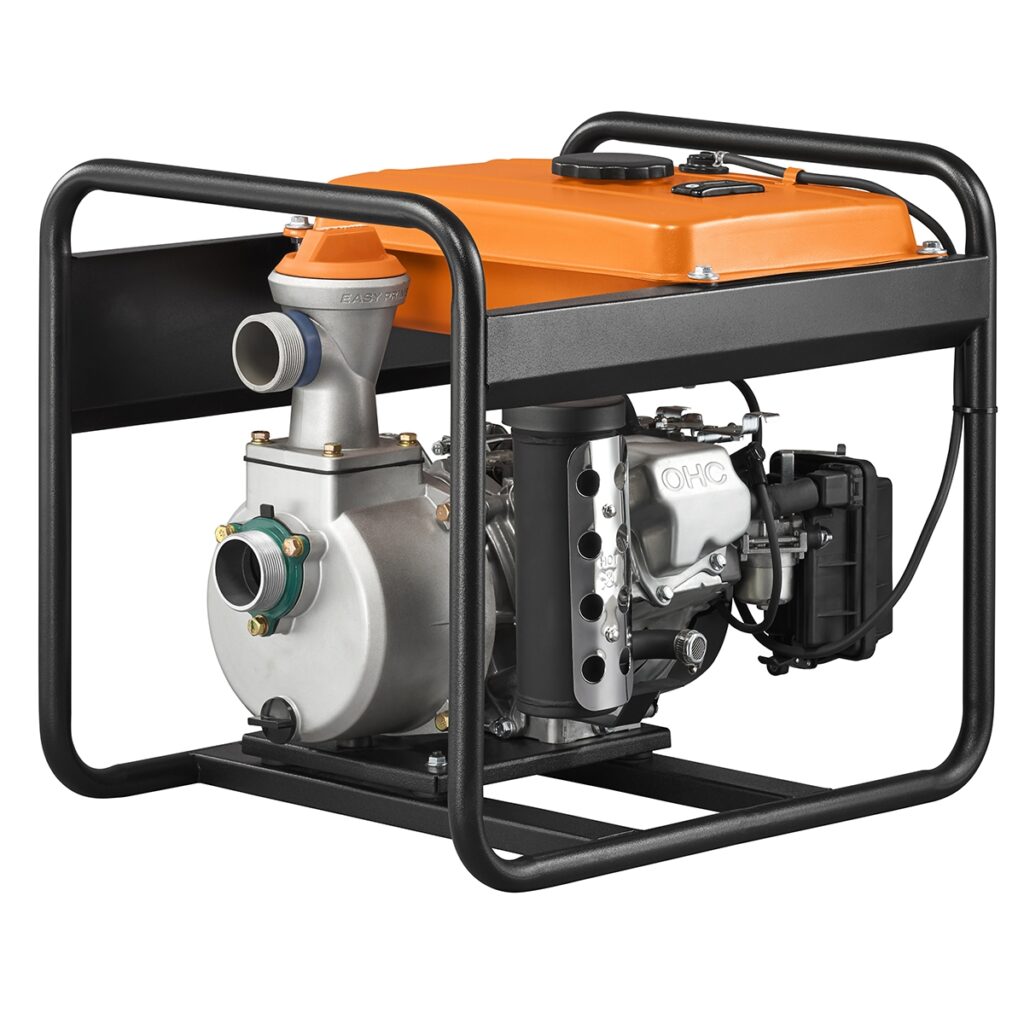

Wet Prime Trash Pump Generac PRO 2″ Semi-Trash Pump

request a quote

Specifically engineered to handle muddy or sandy water, the ST20-S is powered by a 169cc Generac G-Force engine that pumps up to 158 gallons per minute. With features such as low-oil shut down, custom Easy Prime™ funnel design for quick and easy priming, and a large fuel tank with integrated fuel gauge, it’s both durable and easy to use.

Brochure

Spec Sheet

  • Durable 1” frame to withstand the harsh environment
  • Powerful Generac G-Force 169cc engine with low-oil shut down
  • Large 3-gallon fuel tank with incorporated fuel gauge delivers approximately 5 hours runtime
  • Onboard instructions with icons of key touch points make this pump easy to use
  • Easy Prime™ custom funnel design with tethered priming cap for quick and easy priming
  • Color-coded suction and discharge ports to ensure the correct hose connections (Blue = Discharge; Green = Suction)
  • Easily pumps up to 158 gallons per minute
  • Silicon carbide mechanical seal for long life
Click to rate this post!
[Total: 1 Average: 5]

ST20S2 Inch Semi-Trash Pump Parts Manual (Model 006919-0)

NOTICE! The information in this manual is known to be accurate as of the date of release shown on the cover. However, engineering changes can occur without notice. To obtain the proper parts, please be sure to use the serial number of the unit being when ordering from this manual. Always to refer to any parts notes and changes before ordering. send in a quote or calling Ken’s Distributing Company 303.699.7845 for pricing

2" Semi-Trash Pump

Item

Part No

Description

QTY
1 0L63360110 FRAME 2″ SEMI-TRASH PUMP 1
2 0L4797 SP17 Engine for 2″ Semi-Trash Pump 1
3 0K95700114 Pump Base Assembly (2″ Trash Pump) 1
4 0K95700117 Pump Body Shock Absorber 1
5 0K95700115 Shock Absorber B 2
6 0K95700116 Shock Absorber A 2
7 0L63350112 Vibration Mount 4
8 0L63370146 Spacer 1
9 0K33910123 Flange Bolt (M6X20) 1
10 0L63370147 Air Duct Bracket 1
11 0H33750126 Bolt (M6X12) 1
12 0L63360111 Muffler 1
13 0L63360112 Muffler Gasket 1
14 0J00100243 Nut (M0) 10
15 0H33750248 Bolt (M8X40) 2
16 0K96270114 Bolt (M8X12) 1
17 0L63360113 2″ Semi-Trash Pump Assembly 1
18 0K95700139 2″ Blue Band 1
19 0K95700141 Generac Plug O-Ring 1
20 0K9080 2″ Easy Prime Cap 1
21 0K95700143 Fuel Tank (11.5L) 1
22 0H3384 Fuel Shutoff Valve 1
23 0J08180222 Clamp 1
24 0J6626 Fuel Hose 4.5X8.5MM (EPA/CARB) 0.17
25 0H33750173 Clamp 3
26 0K95700149 Fuel Tank Shock Absorber 5
27 0K33910126 Flange Bolt/Washer (M8X25) 4
28 0K95700144 Roll Over Valve 1
29 0K95700145 Fuel Filter (in Tank) 1
30 0K95700147 Screw (M5X14) 2
31 0K95700151 Fuel Gauge 1
32 0K95700152 Fuel Cap 1
33 0K95700148 Fuel Hose 4.5MM 0.81

2" Semi-Trash Pump Assembly

Item

Part No

Description

QTY
1 0L63360118 Pump Cover 1
2 0K95700119 Pump Cover O-ring 1
3 0L63360119 MECHANICAL SEAL(DYNAMIC) 1
4 0K95700121 MECHANICAL SEAL(DYNAMIC) 1
5 0J08180229 FLAT WASHER 15
6 0K95700122 RUBBER WASHER 4
7 0L63360114 INNER HEX BOLT (5/16″- 24UNF X60) 4
8 0L63360115 2″ IMPELLER (QT200) 1
9 0L63360116 2″ VOLUTE 1
10 0J08180237 FLAT WASHER 2
11 0J08180238 SPRING WASHER 2
12 0L63360117 HEXAGON SOCKET CAP (M5X15) 2
13 0K95700126 2″ VOLUTE O-RING 1
14 0K95700127 PUMP HOUSING 1
15 0J08180230 SPRING WASHER 11
16 0K95700128 BOLT (M8X30) 4
17 0K95700129 PLUG O-RING 2
18 0K95700130 PLUG 2
19 0K96270126 BOLT (M8X25) 7
20 0K95700131 FLAP VALVE 1
21 0K95700156 2″ INTAKE VALVE SEAT 1
22 0K95700140 2″ EASY PRIME DISCHARG FUNNEL GASKET 1
23 0K9079 2″ EASY PRIME DISCHARGE FUNNEL 1

HOSES AND HARDWARE

Item

Part No

Description

QTY
1 0K95700132 O-RING 2
2 0K95700119 HOSE BARB 2
3 0K95700134 JOINT GRIP 2
4 0K95700154 CLAMP 3
5 0K95700137 FILTER NET 1
6 0K95700138 DISCHARGE HOSE (2 INCH X 25 FEET) 1
7 0K95700136 SUCTION HOSE (2 INCH X 12 FEET) 1
