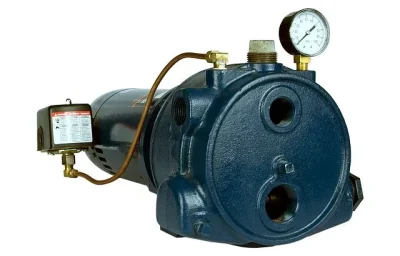

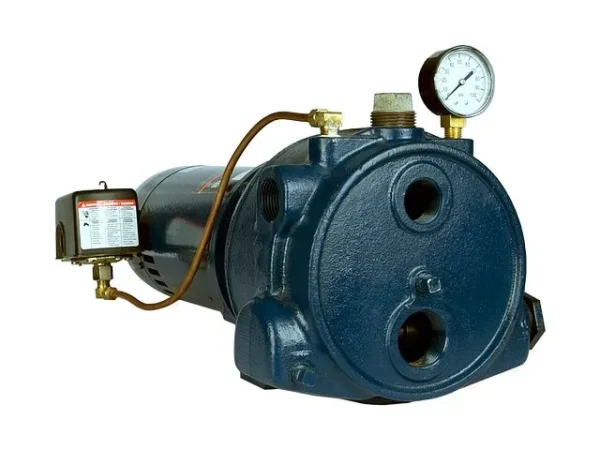

Franklin Electric RM2 Convertible Jet Pump, Cast Iron

The Franklin Electric RM2 Convertible Jet Pump is a cast iron, above-ground pump for shallow- or deep-well fresh-water systems. Choose 1/2, 3/4 or 1 HP, including a 1 HP three-phase option. Compare complete pumps, compatible deep-well injector kits and RM2 repair parts by model before requesting a quote from Ken’s Distributing.

• Four complete-pump configurations: Models FP05CI-C, FP07CI-C, FP1CI-C and 1RM2-T, with 115/230V single-phase or 230/460V three-phase power as listed below.
• Convertible well service: Factory-equipped for shallow-well use; match a separately ordered deep-well injector and piping arrangement for deeper installations.
• Repair and replacement options: Overhaul kits, stainless steel impeller kits, diffusers, shaft seals, shallow-well injectors and common service parts are identified by manufacturer number.
• Request a quote: Ken’s Distributing supplies complete pump and replacement-parts pricing by inquiry. Send your pump nameplate model, required part numbers or pumping conditions.

Franklin Electric RM2 Convertible Jet Pump Specifications

Select an RM2 Pump Model and Item Number

Choose the electrical service and pump size first, then compare the pump curve at your intended flow, discharge pressure and pumping water level. Each underlined item number opens its individual pump page. These item numbers refer to complete pumps, not repair kits.

Buying a pump? Tell us the required GPM, pressure-tank switch setting, pumping water level, existing pipe layout, voltage and delivery location. For a replacement unit, include the old nameplate model and item number.

RM2 Pump Performance: Compare Flow at the Same Duty Point

A model’s horsepower does not tell you its actual delivery at the pressure tank. The flow values below are taken from published RM2 shallow-well data at 5 ft suction lift and 50 PSI discharge pressure. At greater lifts or different pressures, use the full pump curve when selecting the pump.

The 1RM2-T has its own three-phase motor configuration. Verify the applicable curve and operating point for that model when requesting sizing assistance. The series maximum of 23 GPM does not apply to every model at 50 PSI.

Shallow-Well vs. Deep-Well RM2 Configuration

Shallow-well RM2 pump installation

For shallow-well service, the pump uses its internal injector and appropriately sized, airtight suction piping. The important measurement is the vertical lift from the pump to the water level while pumping, not the drilled depth of the well. This configuration is generally used for pumping lifts up to 25 ft.

Deep-well RM2 pump and injector installation

For deep-well service, the internal injector is replaced with a bypass arrangement and a separate external injector is installed with the required two-pipe setup. Injector kits are not included with the complete pump. Select by exact model and pumping water level, and confirm casing clearance and piping requirements.

Deep-Well Injector Kits for RM2 Pumps

Franklin Electric lists the following injector combinations for the single-phase RM2 models. Part numbers identify injector kits to request separately; they are not complete pump item numbers.

For the three-phase 1RM2-T, provide its exact model and pumping water level so the appropriate deep-well injector can be confirmed. The published repair-parts compatibility table specifies the FP-series models and does not separately establish every 1RM2-T injector or overhaul kit fitment.

Franklin Electric RM2 Replacement Parts and Overhaul Kits

Repairing an existing RM2 pump? Start with the model on the pump nameplate and the manufacturer part number. The following parts are organized by the same three FP-series models as the factory repair-parts list. A kit with impeller includes the model-matched impeller; the corresponding without impeller version is an alternative when the impeller remains serviceable.

For the 1RM2-T three-phase pump, do not assume an FP1CI-C repair kit fits solely because both are 1 HP. Send the complete nameplate and the needed part description for compatibility confirmation.

Common RM2 Seal, Case, Pressure Switch and Injector Parts

Ordering replacement parts: Include pump model, item number, component description, manufacturer part number (if known) and photos of the existing assembly. Ken’s Distributing can confirm current pricing and availability and help identify a suitable replacement when the original number has changed.

When to Repair an RM2 Pump and When to Replace It

• Loss of prime or reduced flow: Check suction-line air leaks, foot/check valve condition and injector blockage. If the rotating assembly is worn, an overhaul kit may be a more targeted repair than replacing the entire pump.
• Leakage at the shaft: Identify the mechanical seal and associated O-rings before ordering the service components.
• Worn impeller or diffuser: Use the horsepower-specific part numbers above. Do not substitute a 1/2 HP impeller kit for a 3/4 or 1 HP model.
• Failed motor, cracked case or extensive corrosion: Compare the cost and availability of the required parts with a complete RM2 pump quote.
• Changing the well system: A deeper pumping water level may call for an injector or configuration change, not merely a larger motor.

Why Choose the Franklin Electric RM2 Convertible Pro?

• Cast iron case: Rugged construction for clean-water supply at homes, farms, cabins and compatible light commercial sites.
• Stainless steel impeller: Closed impeller construction with model-specific kits available for service.
• 56C keyed-shaft design: Motor and shaft-coupling arrangement supports servicing of the drive assembly.
• Convertible pump layout: Internal shallow-well jet arrangement and external injector options for deeper wells.
• Factory-installed controls: Adjustable 30/50 PSI switch for a correctly designed pressure-tank system.
• Model-specific repair support: Identified overhaul kits, individual hydraulic service components and injector part numbers help reduce guesswork.

RM2 Convertible Pro vs. C Series Cast Iron Jet Pumps

Both Franklin Electric series are above-ground cast iron convertible pumps. The RM2 adds a 1 HP option and a three-phase model, as well as the removable 56C motor coupling. C Series pumps are offered in 1/2 and 3/4 HP versions and use a 56J threaded motor shaft. The maximum working-pressure ratings differ, but neither number should be treated as the actual discharge pressure delivered to the tank.

Compare the Franklin Electric C Series convertible jet pump if your installation calls for a lower-horsepower cast iron convertible option.

Typical RM2 Applications

• Residential private wells: Pressure-tank water systems supplied from a suitable shallow or deeper well.
• Cabins and seasonal properties: Accessible pump and motor assemblies for periodic service.
• Farm and rural utility water: Clean-water transfer to outbuildings and compatible pressure systems.
• Light commercial water supply: Installations where the selected pump curve meets flow, pressure and duty requirements.
• Small irrigation or tank-filling systems: Applications sized from their actual flow and operating pressure.

RM2 Installation and Pump Selection Checklist

• Measure the pumping water level and the distance between the water and the installed pump; do not use total drilled-well depth as the suction-lift figure.
• Confirm the voltage and phase from the old pump nameplate, and select the corresponding pump item number.
• Select a shallow-well or deep-well arrangement using the applicable injector and piping instructions.
• Check delivered GPM at the required pressure from the model-specific pump performance curve.
• Use an appropriately sized pressure tank, airtight piping and compatible foot or check valve, and prime the system before operation.

Frequently Asked Questions About RM2 Pumps and Repair Parts

What is the Franklin Electric RM2 Convertible Jet Pump?

It is a surface-mounted cast iron jet pump that can be installed for shallow-well use or converted to deep-well operation with the correct external injector. Three single-phase sizes and one three-phase 1 HP model are listed.

Can I use the RM2 for a 100-foot-deep well?

Selected RM2 model-and-injector configurations are listed for 50–100 ft pumping lift. Choose by the water level while pumping and the required flow and pressure, not merely by the drilled well depth.

Does an RM2 pump come with a deep-well injector?

No. The external deep-well injector is ordered separately. The three FP-series models have different injector part numbers for the relevant lift ranges.

Which RM2 overhaul kit includes an impeller?

For FP05CI-C use 305712901; for FP07CI-C use 305712902; and for FP1CI-C use 305712903. The corresponding kits without impellers are 305712904, 305712905 and 305712906.

What replacement parts are available for the RM2 jet pump?

The manufacturer parts list identifies impeller kits, diffusers, shallow-well and deep-well injectors, mechanical seal parts, wear rings, a case kit, pressure-switch kit, bypass plug and O-ring kits. Match the specific assembly to the nameplate.

Will FP1CI-C replacement parts fit the three-phase 1RM2-T?

The published parts list identifies fitment for the FP05CI-C, FP07CI-C and FP1CI-C models. Confirm 1RM2-T compatibility before ordering rather than assuming interchangeable components based only on horsepower.

Does the RM2 deliver 150 PSI?

The 150 PSI figure is the maximum working-pressure rating of the pump. Normal flow and discharge pressure depend on lift and the selected configuration; its factory pressure switch is preset to 30/50 PSI.

Can I order RM2 pumps and repair parts from Ken’s Distributing?

Yes. Request a quote for a complete pump, compatible injector or replacement parts. Provide the pump model and item number, the repair component or part number, and installation details so the request can be checked.

Related Franklin Electric Pump Options and Parts

• For dedicated shallow-well service, see the VersaJet cast iron shallow-well jet pump.
• For a thermoplastic-bodied shallow-well alternative, explore the SWJ non-corrosive jet pump.
• For other pump service needs, see the Franklin Electric replacement parts hub.

Request RM2 Pump or Replacement Parts Pricing

For a complete RM2 pump quote: Provide the preferred pump item number, horsepower, voltage/phase, pumping water level, target GPM, system pressure and shipping destination. For repair-parts pricing: Provide the RM2 nameplate model and the exact injector, overhaul, seal, impeller or case-kit part number if available. Contact Ken’s Distributing for RM2 pump and parts pricing, or call 303-699-7845 to discuss your requirements.
