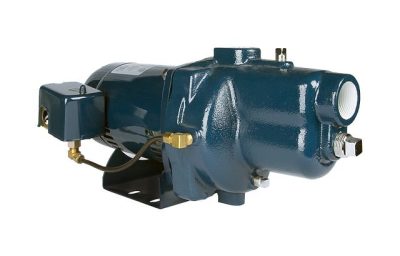

Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump
What Is the Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump?
The Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump is a dependable and efficient water pump designed for residential and light commercial shallow well applications. Available at Ken’s Distributing, this pump is built to draw water from wells with a suction lift of up to 25 feet and is offered in four horsepower options: ½ HP, ¾ HP, 1 HP, and 1.5 HP, giving homeowners and contractors plenty of flexibility for different water supply needs.
One of the things that makes the Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump a popular choice is its practical design. All working components, including the motor, impeller, and controls, are kept above ground, which makes routine maintenance and servicing much easier compared to submersible options. The pump also comes with alternate jet nozzles that allow fast switching between high pressure and high flow performance modes without any major disassembly.
Kendisco carries the complete Franklin Electric VersaJet lineup, and every unit is NSF/ANSI/CAN 372 certified for safe use in potable drinking water systems. Whether you are setting up a new residential well system or replacing an older pump, the VersaJet is a solid, well-built option that gets the job done.
Key Features and Benefits of the Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump
- Quick-Change Nozzle System: Switch between high pressure and high flow modes quickly and easily using the included alternate nozzles. No need to open the case or disturb existing plumbing connections.
- High-Performance Internal Components: The impeller features a stainless steel insert, and the diffuser, venturi, and jet nozzle are molded with Modified PPO (Polyphenylene Oxide) for optimal hydraulic efficiency and long service life.
- Reliable Mechanical Seal: A phenolic and ceramic shaft seal combined with nitrile elastomers and stainless steel hardware ensures long-term, leak-free operation even under demanding conditions.
- Rugged Cast Iron Construction: The heavy-duty cast iron pump case includes built-in pressure and drain ports, making the pump easy to service and built to last in residential and light commercial environments.
- Stainless Steel Floating Eye Seal: This seal improves hydraulic performance and reduces internal wear over the life of the pump.
- Pre-Installed Pressure Switch: Factory set at 30/50 PSI for consistent, reliable operation right from installation.
- UL778 Listed Motor: The square-flange single-phase motor is rated for both indoor and outdoor use and is approved for safe residential and light commercial installation.
- NSF/ANSI/CAN 372 Certified: Certified safe for use in potable drinking water supply systems, giving homeowners peace of mind.
- Dual Voltage Capability: Operates on 115 VAC or 230 VAC, providing flexibility to match your existing electrical setup.
- Above-Ground Design: All working components stay above ground for straightforward access during maintenance and repairs.
Technical Specifications
| Specification | Detail |
|---|---|
| Available HP | ½ HP, ¾ HP, 1 HP, 1.5 HP |
| Phase | Single-Phase |
| Voltage | 115 VAC / 230 VAC (Dual Voltage) |
| Inlet Port Size | 1-¼ inch |
| Outlet Port Size | 1 inch |
| Max Water Temperature | 120°F / 49°C |
| Maximum Working Pressure | 75 PSI |
| Pressure Switch Setting | 30/50 PSI (Pre-installed) |
| Housing Material | Cast Iron |
| Impeller Material | Modified PPO with Stainless Steel Insert |
| Shaft Seal | Phenolic/Ceramic with Nitrile Elastomers |
| Motor Listing | UL778 (Indoor/Outdoor) |
| Certification | NSF/ANSI/CAN 372 – Potable Water |
| Max Suction Lift | Up to 25 feet (shallow well) |
Standard Nozzle
High Flow
High Pressure
Order Information
VersaJet Cast Iron Shallow Well Jet Pump
VersaJet Standard vs. VersaJet Pro: Understanding the Difference
If you are trying to decide between the Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump and the VersaJet Pro, here is a simple breakdown to help you make the right choice:
| Feature | VersaJet Standard | VersaJet Pro |
|---|---|---|
| Quick-Change Nozzle System | Alternate nozzles included | Patent-pending Quick-Change system with 3 nozzles |
| HP Range | ½, ¾, 1, 1.5 HP | ½, ¾, 1 HP |
| Cast Iron Housing | Yes | Yes |
| NSF Certified | Yes | Yes |
| Max Suction Lift | 25 feet | 25 feet |
| Best For | Standard residential shallow well supply with 1.5 HP option | Residential systems needing fast nozzle mode switching |
The standard VersaJet is a great choice if you need the 1.5 HP option or prefer a straightforward pump setup for typical residential well water supply. If you want the convenience of the patent-pending Quick-Change nozzle system, the VersaJet Pro might be the better fit. Either way, Ken’s Distributing carries both models and our team is happy to help you decide.
Applications: Where Is the Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump Used?
The Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump is a versatile pump that works well across a range of water supply applications. Here are the most common uses:
- Residential Well Water Supply: Provides reliable pressure for homes drawing water from shallow wells up to 25 feet deep. A popular choice for rural and suburban residential properties.
- Lawn and Garden Irrigation: Switching to high flow mode makes the VersaJet a capable option for garden irrigation and lawn sprinkler systems.
- Light Commercial Water Supply: Works well for small commercial buildings and properties that rely on shallow well water sources.
- Pressure Boosting: Can be used to boost water pressure from storage tanks or surface water sources where pressure is insufficient.
- Seasonal and Vacation Properties: A reliable and easy-to-service pump option for cabins, cottages, and seasonal homes.
- Small Scale Agricultural Use: Suitable for light agricultural water transfer needs from shallow water sources on farms and rural properties.
Keep in mind that the Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump is designed specifically for shallow wells with a suction lift of 25 feet or less. If your well depth exceeds 25 feet, please take a look at the Franklin Electric C-Series Cast Iron Convertible Jet Pump, which is designed to handle both shallow and deep well configurations up to 90 feet.
Installation and Motor Details
The Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump is built with a practical installation process in mind. Here is a summary of what to know before setting up this pump:
- Motor Type: UL778-listed square-flange single-phase motor, approved for indoor and outdoor installation environments.
- Voltage Options: Configurable for 115 VAC or 230 VAC dual voltage operation, so it works with most standard residential electrical setups.
- Pressure Switch: Comes pre-installed and factory set at 30/50 PSI for consistent performance right from startup.
- Port Sizes: All models feature a 1-¼ inch inlet and 1 inch outlet, which are compatible with standard residential plumbing fittings.
- Nozzle Switching: Alternate jet nozzles are included for switching between high pressure and high flow modes without opening the case or changing your plumbing setup.
- Above-Ground Components: The motor, impeller, and controls all remain above ground, making this pump easier to inspect, maintain, and repair compared to submersible designs.
- Potable Water Safe: NSF/ANSI/CAN 372 certified for safe use in residential drinking water systems.
For a complete and properly functioning system, Ken’s Distributing recommends pairing the VersaJet with a compatible pressure tank, foot valve, check valve, and pressure gauge. If you have questions about installation or need help selecting the right accessories, do not hesitate to contact our team at Ken’s Distributing.
Compatible Replacement Parts and Accessories
To keep your Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump running at peak performance, it is important to use genuine Franklin Electric replacement parts. Kendisco stocks a wide range of compatible parts and accessories for the VersaJet series, including:
- Mechanical seal kits
- Jet nozzle and venturi replacement sets
- Pressure switch replacements
- Impeller assemblies
- Gasket and O-ring kits
- Pressure tank accessories
Using genuine Franklin Electric parts helps maintain pump performance, protects your warranty, and extends the overall service life of the pump. Browse the full range of available parts at Kendisco today.
View Franklin Electric Replacement Parts at Ken’s Distributing
Frequently Asked Questions About the Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump
What is the maximum well depth the Franklin Electric VersaJet can handle?
The Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump is rated for shallow wells with a maximum suction lift of 25 feet. For wells deeper than 25 feet, you will need a convertible or deep well jet pump that uses a submersible ejector kit.
What HP options are available for the VersaJet Cast Iron Shallow Well Jet Pump?
The Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump is available in four horsepower options: ½ HP, ¾ HP, 1 HP, and 1.5 HP. All models operate on 115 VAC or 230 VAC single-phase power. Ken’s Distributing carries all four models and can help you choose the right HP for your water supply needs.
How do I switch between high pressure and high flow on the VersaJet?
The VersaJet comes with alternate jet nozzles that allow you to switch between high pressure and high flow performance modes. The nozzle change can be done quickly without opening the pump case or making any changes to your plumbing connections.
Is the Franklin Electric VersaJet safe for drinking water?
Yes. The Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump is NSF/ANSI/CAN 372 certified, which means it meets the safety requirements for use in potable drinking water supply systems.
What is the difference between the VersaJet and the VersaJet Pro?
The main difference is that the VersaJet Pro features a patent-pending Quick-Change nozzle system that makes switching between operating modes even faster and easier. The standard VersaJet uses alternate nozzles for mode switching. The standard VersaJet also offers the 1.5 HP option, which is not available in the Pro model. Both pumps feature the same cast iron construction and NSF/ANSI/CAN 372 certification.
What pressure switch setting does the VersaJet come with?
The Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump comes with a pre-installed pressure switch that is factory set at 30/50 PSI. No additional pressure switch is needed for a standard installation.
Does the VersaJet work with a pressure tank?
Yes. For a complete and properly functioning residential water supply system, the Franklin Electric VersaJet should be paired with a compatible pressure tank, along with a foot valve, check valve, and pressure gauge. Ken’s Distributing can help you select compatible accessories for your setup.
Where can I buy the Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump?
You can purchase the Franklin Electric VersaJet Cast Iron Shallow Well Jet Pump directly from Ken’s Distributing at Kendisco.com. Our team is available to assist with product selection, pricing questions, and technical support for this and all other Franklin Electric pump products we carry.
