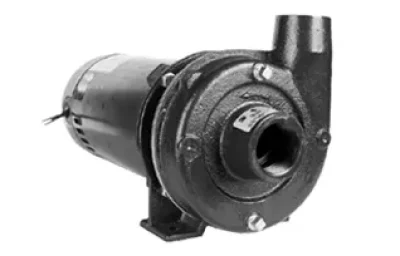

Franklin Electric Centrifugal Close-Coupled FAC (½–2 HP)


FAC product image

FEATURES

  • Volute: Cast iron construction; can be rotated for ease of installation; tapped openings for draining
  • Impeller: Cast iron construction; enclosed design for high efficiency
  • Mechanical Seal: GL-SiC/GL-SiC x FKM elastomers; 300-series stainless steel components
  • Motor: 3600 rpm; 56J; C-face; open drip-proof
  • Mounting: Vertical or horizontal position

SPECIFICATIONS

  • Capacities to 60 gpm
  • Heads to 130 feet
  • 75 psi maximum working pressure
  • 212 °F maximum temperature
  • Clockwise rotation when viewed from motor end
  • NPT pipe connections

APPLICATIONS

  • Water Circulation
  • Booster Service
  • Liquid Transfer
  • Spraying Systems
  • Jockey Pump
  • General Service
FAC_material-parts

Fig. No.

Part Description

FAC-50



Part No.



Materials of Construction

FAC-75

FAC-100

FAC-150

FAC-200

1

Pump Case

305453001

305453015

305453016

Cast iron, ASTM-A48 CL30

2

Impeller

305453017

305453018

305453019

305453020

305453021

Cast iron, ASTM-A48 CL30

3

Motor Adapter

305453022

305453023

Cast iron, ASTM-A48 CL30

90

Mechanical Shaft Seal

305463029

GL-SiC/GL-SiC x FKM-stainless steel

100*

Case Gasket

305453007

305453024

EPDM

100A

O-ring

305463251

305463252

Nitrile

200

Motor (56-J)

See Motor Section

Misc.

500

Pipe Plug (2-pack)

305463020

CAD-plated steel

503

Flinger

305453005

Neoprene

530A

Hex Bolt – Motor Adapter (8-pack)

305463030

Zinc-plated steel

530B

Lock Washer (8-pack)

305463032

Zinc-plated steel

530C

Hex Nut (8-pack)

305463033

Zinc-plated steel

530D

Lock Washer (6-pack)

305463032

Zinc-plated steel

531

Stud (4-pack)

305463129

Zinc-plated steel

HP

Dis. x Suc. (NPT)

Phase

Voltage

Model Description

Order No.

Wt. (lbs)

1/2

1″ x 1¼”

1

115/230

FAC-50S

90210005

32

3

208-230/460

FAC-50T

90213005

3/4

1¼” x 1½”

1

115/230

FAC-75S

90210007

36

3

208-230/460

FAC-75T

90213007

1

1¼” x 1½”

1

115/230

FAC-100S

90210010

39

3

208-230/460

FAC-100T

90213010

1½” x 2″

1

115/230

FAC-150S

90210015

47

3

208-230/460

FAC-150T

90213015

2

1½” x 2″

1

230

FAC-200S

90210020

53

3

208-230/460

FAC-200T

90213020

FACdimension

HP

PH

Dis. x Suc. (NPT)

B

C

D

K

Dimensions (in)

X Y Z

BA

CP

ZC

ZO

1/2

1

1″ x 1¼”

2.69

8.47

3.75

1.65

4.69

2.24

2.41

0.93

13.59

3.50

7.11

3

12.45

3/4

1

1¼” x 1½”

14.09

3

13.70

1

1

15.99

3

13.70

1-1/2

1

1½” x 2″

2.62

9.24

4.15

1.63

4.86

2.31

2.66

0.94

17.76

3.75

7.73

3

15.52

2

1

17.76

3

16.02

FAC-performance
