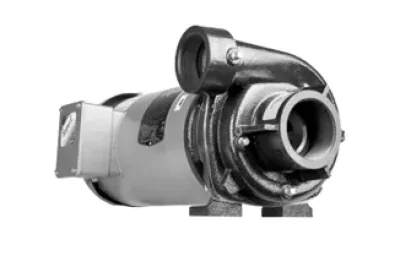

Franklin Electric FAC
FEATURES
- Flow range from 40–200 gpm covers a wide variety of pumping applications
- High efficiency performance design for reduced lifetime cost of operation
- Threaded NPT connection volute, 2.5″ suction x 2″ discharge accepts standard pipe fittings
- Volute can be rotated in 90° increments to simplify discharge plumbing
- 1/4″ ports provide for pressure fitting and/or drain line connections
- Suitable for horizontal or vertical mounting for versatility of installation
- Robust cast iron volute and motor bracket with integral mounting feet for ease of installation
- Back pull-out design enables serviceability without disconnecting plumbing
- 316SS impeller is suitable for handling a wide variety of fluids without corrosion or electrolysis and is resistant to the effects of cavitation
- Mechanical seal constructed of SiC/SiC/FKM/316SS (KFM silicon carbide), can withstand mild abrasives and is suitable for handling a variety of fluids, including those containing hydrocarbons
- NEMA 56J threaded shaft motors with 316SS shaft extension make for a compact pump unit
- 1800 and 3600 RPM fixed-speed motors provide for a wide range of hydraulics
- Motors are available in both ODP and TEFC enclosures to best fit the operating environment
- Three-phase motors offer a premium efficient design, have Class F insulation, and are rated as Inverter Ready for use with variable frequency drives
- Pumps are 100% wet tested at the factory to ensure quality and reliability
- Capacities to 200 gpm
- Heads to 80 feet
- 150 psi maximum working pressure
- 212 °F maximum temperature
- 3/8″ maximum spherical solids handling (in low concentration)
- Pressure Boosting
- Water Supply and Treatment
- Water Feature
- Water Recirculation
- Irrigation
- Fuel/Oil Transfer
Figure No. | Part Description | Part No. | Materials of Construction |
|---|---|---|---|
1 | FBC Volute w/Pipe Plugs (installed) | 305462047 | Cast iron, ASTM-A48 CL30 |
2 | FBC Gasket | 305462062 | Reinforced cellulose w/nitrile binder |
3 | FBC Studs (4 pack) | 305462224 | Zinc-plated steel |
4 | FBC Lock Washer (4 pack) | 305463092 | Zinc-plated steel |
5 | FBC Nut (4 pack) | 305463062 | Zinc-plated steel |
6 | FBC Lock Nut, Impeller | 305462062 | 304 Stainless steel |
7A | FBC Impeller Kit, 4.5″ trim, 3 hp, 2 pole; 1/2 hp, 4 pole | 305462059 | 316 Stainless steel |
7B | FBC Impeller Kit, 4.0″ trim, 2 hp, 2 pole; 1/3 hp, 4 pole | 305462060 | 316 Stainless steel |
7C | FBC Impeller Kit, 3.5″ trim, 1.5 hp, 2 pole; 1/4 hp, 4 pole | 305462061 | 316 Stainless steel |
8 | FBC Mechanical Seal Assembly | 305463029 | SiC/SiC/FKM/300 series stainless steel |
9 | FBC Motor Bracket | 305462049 | Cast iron, ASTM-A48 CL30 |
10 | FBC Bolts, Motor Bracket | 305462051 | Zinc-plated steel |
11 | FBC Motor (56J Frame) | See Motor Section | Misc. |
12 | Slinger | 305453013 | Neoprene |
Frame Size | RPM | Enclosure | Phase | Volts | HP | Pump Model No. | Motor Part No. | Inverter Rated | FLA | SFA |
|---|---|---|---|---|---|---|---|---|---|---|
56J | 1800 | TEFC | 1 | 115/230 | 1/3 | FBCL-25SE | JL3501A | – | 6/3 | 6.8/3.4 |
115/230 | 1/3 | FBCL-33SE | JL3501A | – | 6/3 | 6.8/3.4 | ||||
115/230 | 1/2 | FBCL-50SE | JL3504A | – | 7.4/3.7 | 8.2/4.1 | ||||
3 | 230/460 | 1/3 | FBCL-25TE | JM3458 | No | 1.6/.8 | 1.8/.9 | |||
230/460 | 1/3 | FBCL-33TE | JM3458 | No | 1.6/.8 | 1.8/.9 | ||||
230/460 | 1/2 | FBCL-50TE | JM3461 | No | 2/1.2 | 2.4/1.2 | ||||
3600 | ODP | 1 | 115/230 | 1-1/2 | FBC-150S | JL1313A | – | 13/6.5 | 17/8.5 | |
115/230 | 2 | FBC-200S | JL1317A | – | 26/13 | 27.6/13.8 | ||||
230 | 3 | FBC-300S | JL1323A | – | 13 | 14.8 | ||||
3 | 230/460 | 1-1/2 | FBC-150T | JM3120 | No | 4.4/2.2 | 5.4/2.7 | |||
230/460 | 2 | FBC-200T | JM3155 | No | 5.4/2.7 | 6.2/3.1 | ||||
230/460 | 3 | FBC-300T | JM3158 | No | 8/4 | 9/4.5 | ||||
3600 | TEFC | 1 | 115/230 | 1-1/2 | FBC-150SE | JL3513A | – | 16.6/8.8 | 16.6/8.8 | |
115/230 | 2 | FBC-200SE | JL3515A | – | 23/11.5 | 23/11.5 | ||||
230 | 3 | FBC-300SE | 204219 | – | 12 | 13.8 | ||||
3 | 230/460 | 1-1/2 | FBC-150TE | EJM3550 | Yes | 3.8/1.9 | 4.8/2.4 | |||
230/460 | 2 | FBC-200TE | EJM3555 | Yes | 5/2.5 | 5.8/2.9 | ||||
230/460 | 3 | FBC-300TE | EJM3559 | Yes | 7.2/3.6 | 8.2/4.1 |
Quick Select Pump Page Finder | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Series | Nominal RPM | Flow (GPM) | Head (ft) | HP | Dis. x Suc. | Impeller Max Dia. | Pages | ||
| Performance | Dimensions/Order Information | Repair Parts/Motor Data | |||||||
FBC | 3600 | 50 – 200 | 20 – 80 | 1.5 – 3 | 2″ x 2.5″ | 4.5″ | 2 | 4 | 5 – 6 |
1800 | 40 – 110 | 7 – 22 | .25 – .5 | 2″ x 2.5″ | 4.5″ | 3 | |||
Frame Size | RPM | Enclosure | Phase | Volts | HP | Pump Model No. | Ordering No. | Wt. (lbs) | “C” Dimension (in) | Basic Model | PEICL Number |
|---|---|---|---|---|---|---|---|---|---|---|---|
56J | 1800 | TEFC | 1 | 115/230 | 1/3 | FBCL-25SE | 96555002 | 47 | 11.85 | FBC | 0.87 |
115/230 | 1/3 | FBCL-33SE | 96555003 | 47 | 11.85 | ||||||
115/230 | 1/2 | FBCL-50SE | 96555005 | 52 | 12.85 | ||||||
3 | 230/460 | 1/3 | FBCL-25TE | 96556002 | 46 | 11.85 | |||||
230/460 | 1/3 | FBCL-33TE | 96556003 | 46 | 11.85 | ||||||
230/460 | 1/2 | FBCL-50TE | 96556005 | 48 | 11.85 | ||||||
3600 | ODP | 1 | 115/230 | 1-1/2 | FBC-150S | 96551015 | 61 | 13.89 | |||
115/230 | 2 | FBC-200S | 96551020 | 70 | 13.25 | ||||||
230 | 3 | FBC-300S | 96551030 | 77 | 14.13 | ||||||
3 | 230/460 | 1-1/2 | FBC-150T | 96553015 | 55 | 13.22 | |||||
230/460 | 2 | FBC-200T | 96553020 | 60 | 13.72 | ||||||
230/460 | 3 | FBC-300T | 96553030 | 67 | 13.72 | ||||||
3600 | TEFC | 1 | 115/230 | 1-1/2 | FBC-150SE | 96552015 | 70 | 13.74 | |||
115/230 | 2 | FBC-200SE | 96552020 | 79 | 14.62 | ||||||
230 | 3 | FBC-300SE | 96552030 | 79 | 13.12 | ||||||
3 | 230/460 | 1-1/2 | FBC-150TE | 96554015 | 63 | 12.72 | |||||
230/460 | 2 | FBC-200TE | 96554020 | 66 | 13.74 | ||||||
230/460 | 3 | FBC-300TE | 96554030 | 75 | 14.62 |
