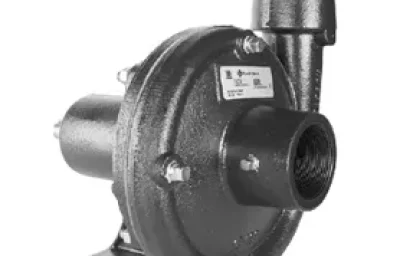

Franklin Electric Centrifugal Frame Mount FACT
FEATURES
- Volute: Cast iron construction; can be rotated for ease of installation; tapped openings provided for venting and draining
- Impeller: 2″ x 2″ cast iron construction; enclosed design for high efficiency
- Mechanical Seal: Standard with carbon/ceramic faces; nitrile elastomers; 300-series stainless steel components
- Bearing Frame: For belt or direct drive
- Mounting: Vertical or horizontal position
SPECIFICATIONS
- Capacities to 175 gpm
- Heads to 150 feet
- 120 psi maximum working pressure
- 212 °F maximum temperature
- Clockwise rotation when viewed from drive end
- NPT pipe connections
APPLICATIONS
- Water Circulation
- Booster Service
- Liquid Transfer
- Spraying Systems
- Jockey Pump
- General Service
Fig. No. | Part Description | FACT-5 | FACT-6 | FACT-8 | Materials of Construction |
|---|---|---|---|---|---|
1 | FACT Volute Case | 305453008 | 305453042 | 305459001 | Cast iron, ASTM-A48 CL30 |
2 | FACT Impeller | 305453009 | 305453043 | 305453047 | Modified PPO |
3 | FACT Transmission Housing | 305453010 | 305453044 | N/A | Cast iron, ASTM-A48 CL30 |
3 | FACT Transmission Housing | N/A | N/A | 305453048 | Cast iron, ASTM-A48 CL30 |
5 | FACT Shaft/Bearing Assembly | 305453011 | N/A | Misc. | |
Not Shown | FACT Shaft | N/A | N/A | 305453049 | Low-carbon steel C1018120 |
Not Shown | FACT Ball Bearing (2-pack) | N/A | N/A | 305463180 | Misc. |
30 | FACT Retaining Ring | 305463027 | 305463181 | Steel | |
35 | FACT Shaft Key | 305463028 | 305453028 | 301 stainless steel | |
90 | FACT Mechanical Shaft Seal | 305463176 | 305463182 | Carbon/ceramic/nitrile/316 stainless steel | |
100 | FACT Gasket | 305453012 | 305453045 | N/A | Styrene-butadiene rubber |
100A | FACT O-ring | N/A | N/A | 305463004 | Nitrile |
503 | FACT Water Slinger | 305453013 | 305453050 | Neoprene | |
Not Shown | FACT Pipe Plug 1/8 (3-pack) | N/A | N/A | 305463009 | Zinc-plated steel |
500A | FACT Pipe Plug (3-pack) | 305463020 | Zinc-plated steel | ||
530A | FACT Bracket Threaded Stud (4-pack) | 305463031 | Zinc-plated steel | ||
530B | FACT Lockwasher (8-pack) | 305463135 | Zinc-plated steel | ||
530C | FACT Hex Nut (8-pack) | 305463033 | Zinc-plated steel | ||
Not Shown | FACT Impeller Hex Cap Screw | N/A | N/A | 305463056 | Zinc-plated steel |
Not Shown | FACT Impeller Washer | N/A | N/A | 305463297 | 18-8 Stainless Steel |
Not Shown | FACT Sleeve | N/A | N/A | 305453051 | 304 stainless steel |
Not Shown | FACT Seal Plate | N/A | N/A | 305453052 | Cast iron, ASTM-A48 CL30 |
Not Shown | FACT Lip Seal | N/A | N/A | 305463139 | Nitrile |
Pumps produced before Jan. 2020
Not Shown | FACT Impeller Washer | N/A | N/A | 305463063 | Zinc-plated steel |
Model | Dis. x Suc. (NPT) | Rotation | Shaft Sealing | Order No. | Wt. (lbs) |
|---|---|---|---|---|---|
FACT-8 | 2″ x 2″ | Clockwise* | Mechanical Seal | 90252008 | 21 |
* When viewed from drive end
Model | Dis. x Suc. (NPT) | CP | DD | E | F | Dimensions (in) L O | X | Y | ZC | ZO | |
|---|---|---|---|---|---|---|---|---|---|---|---|
FACT-8 | 2″ x 2″ | 11.37 | 4.62 | 4.00 | 2.00 | 2.87 | 11.00 | 6.25 | 3.25 | 5.75 | 4.75 |
